Headlamp Control Module
>>

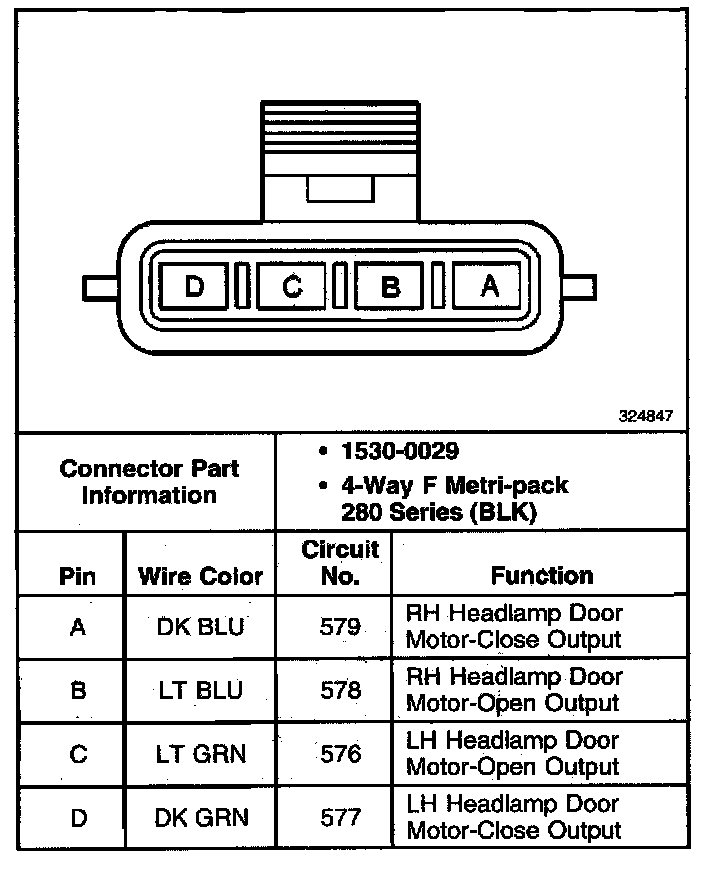

Headlamp Opening Door Actuator Control Module Connector C2
Headlamp Opening Door Actuator Control Module Connector C2
Headlamp Opening Door Actuator Control Module Connector C2:
