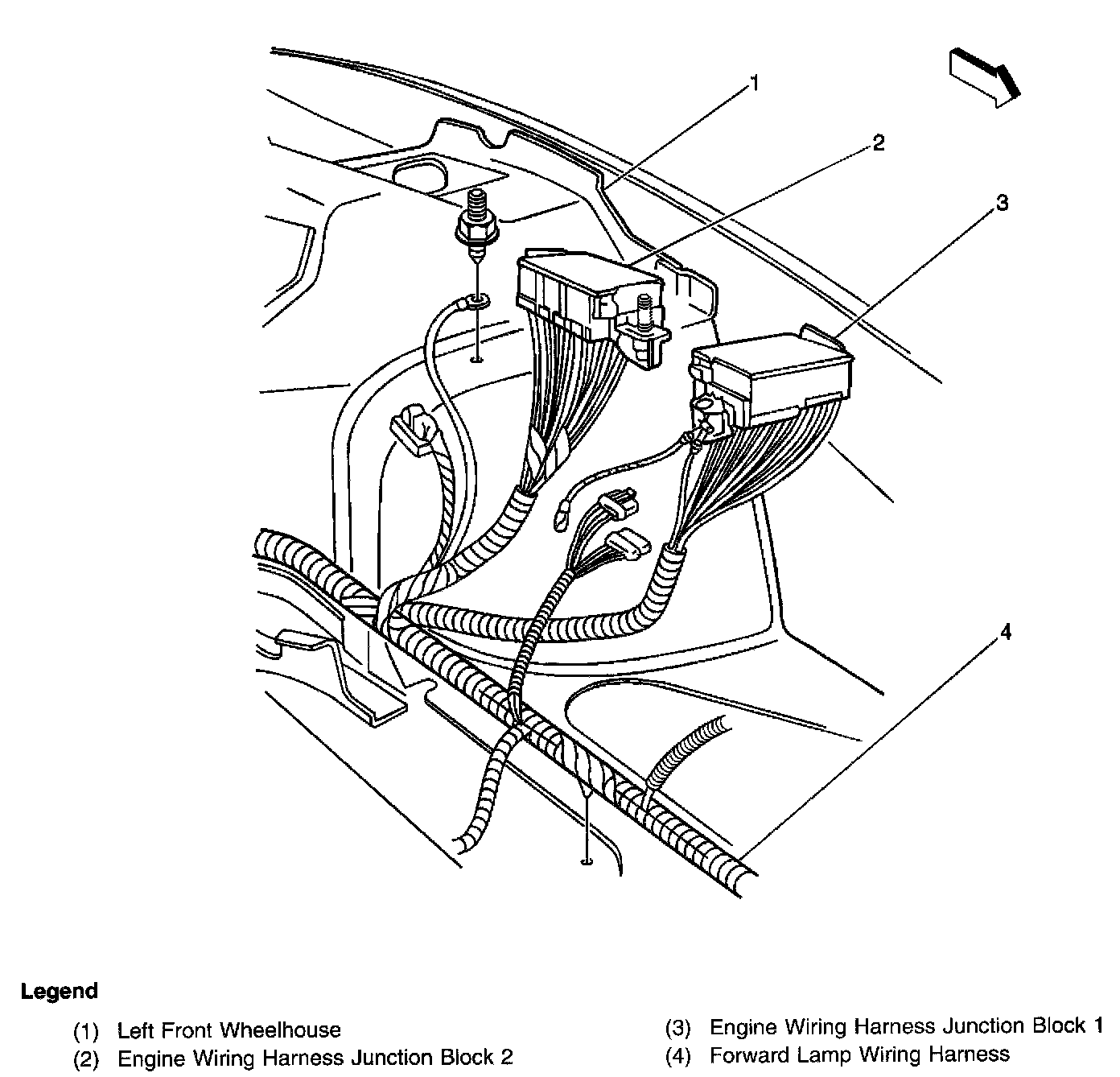

Engine Wiring Harness Junction Block 1
Engine Wiring Harness Junction Block 1
Locations View:
Locations View:
In the left front corner of the engine compartment
