Home
>>
Pontiac
>>
1998
>>
Sunfire L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>

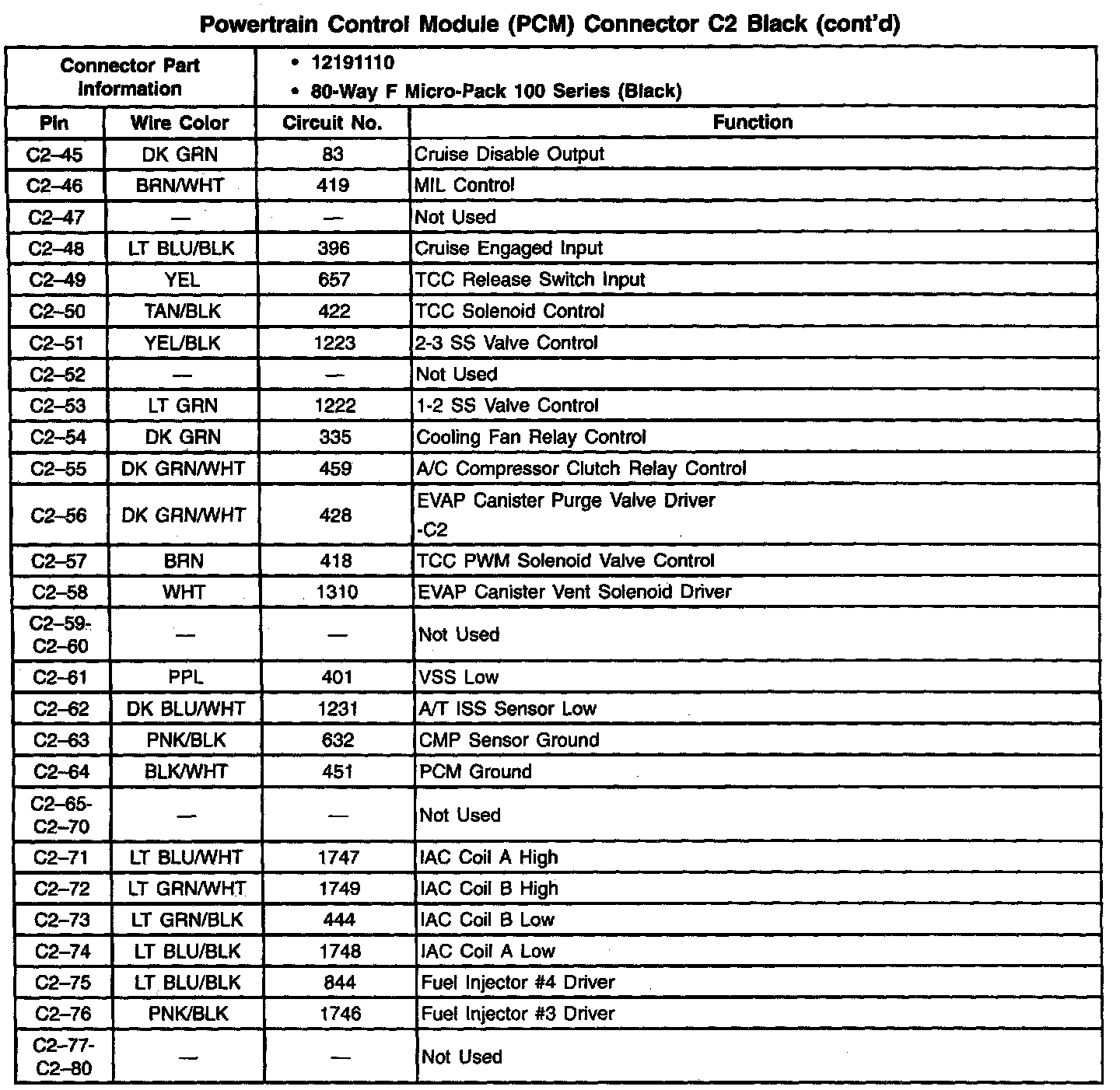

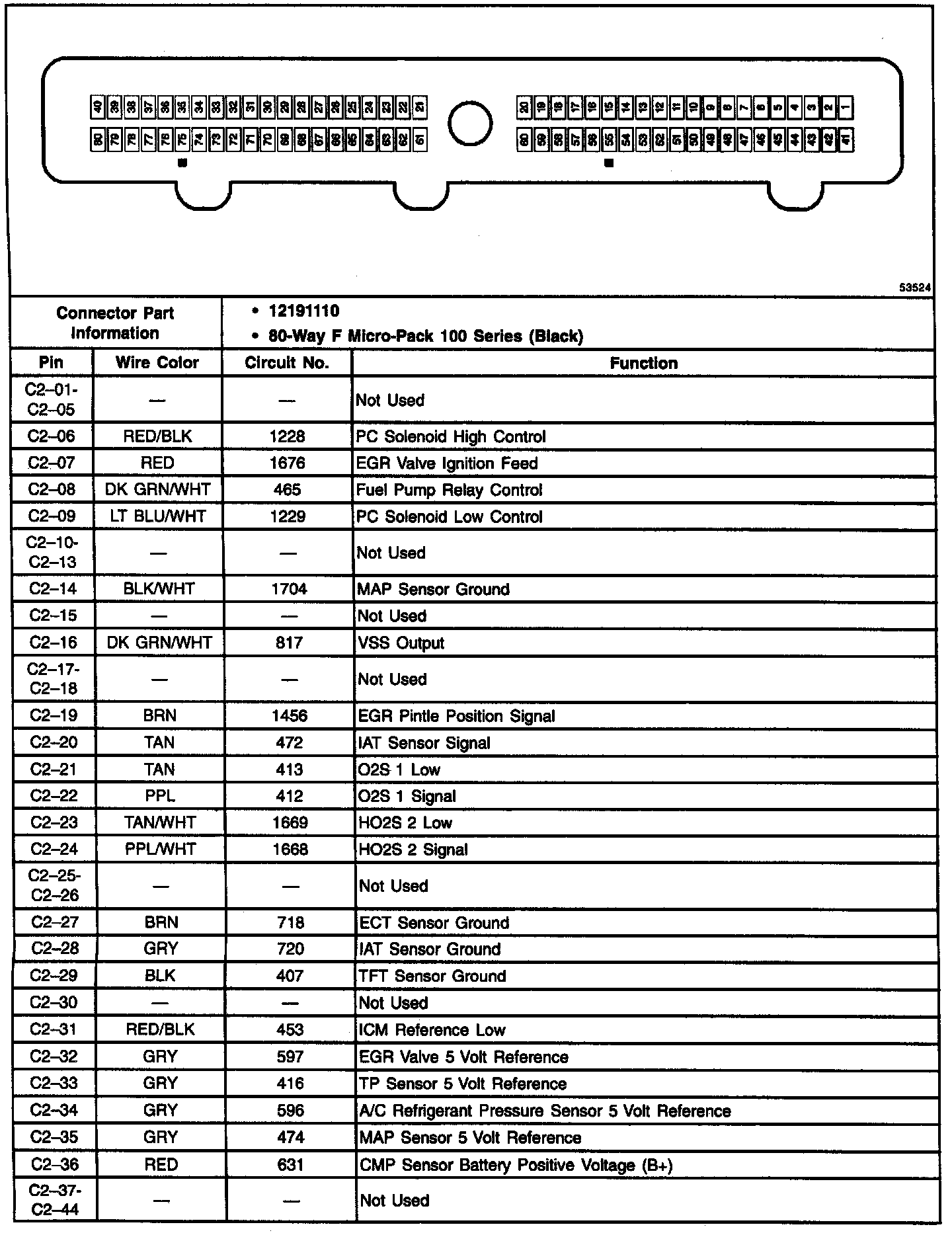

C2 (Black)
C2 (Black)
Connector View:
Connector View:
