Compressor/Condenser Fan Controls

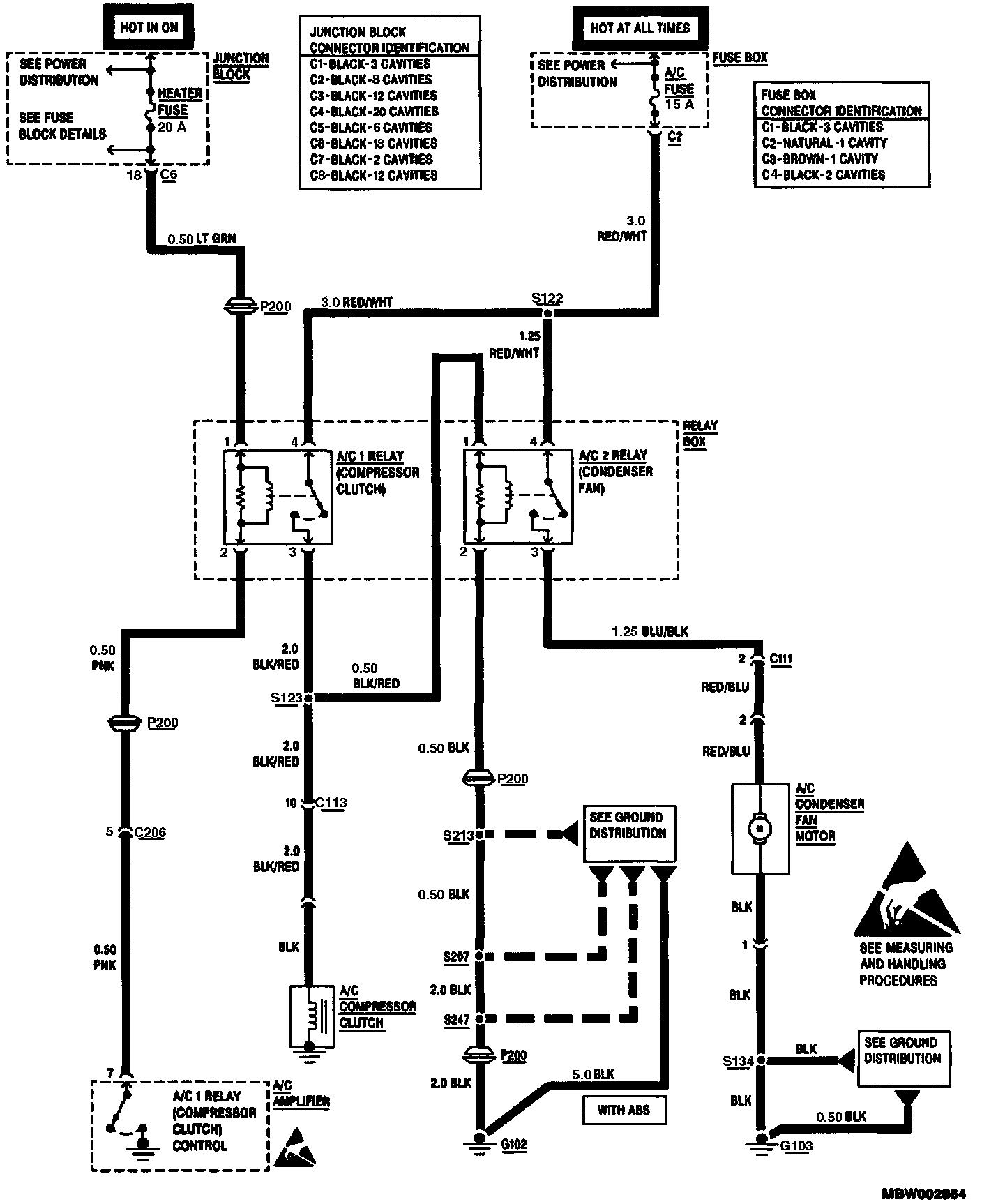

Compressor/Condenser Fan Controls (Part 1 Of 2):

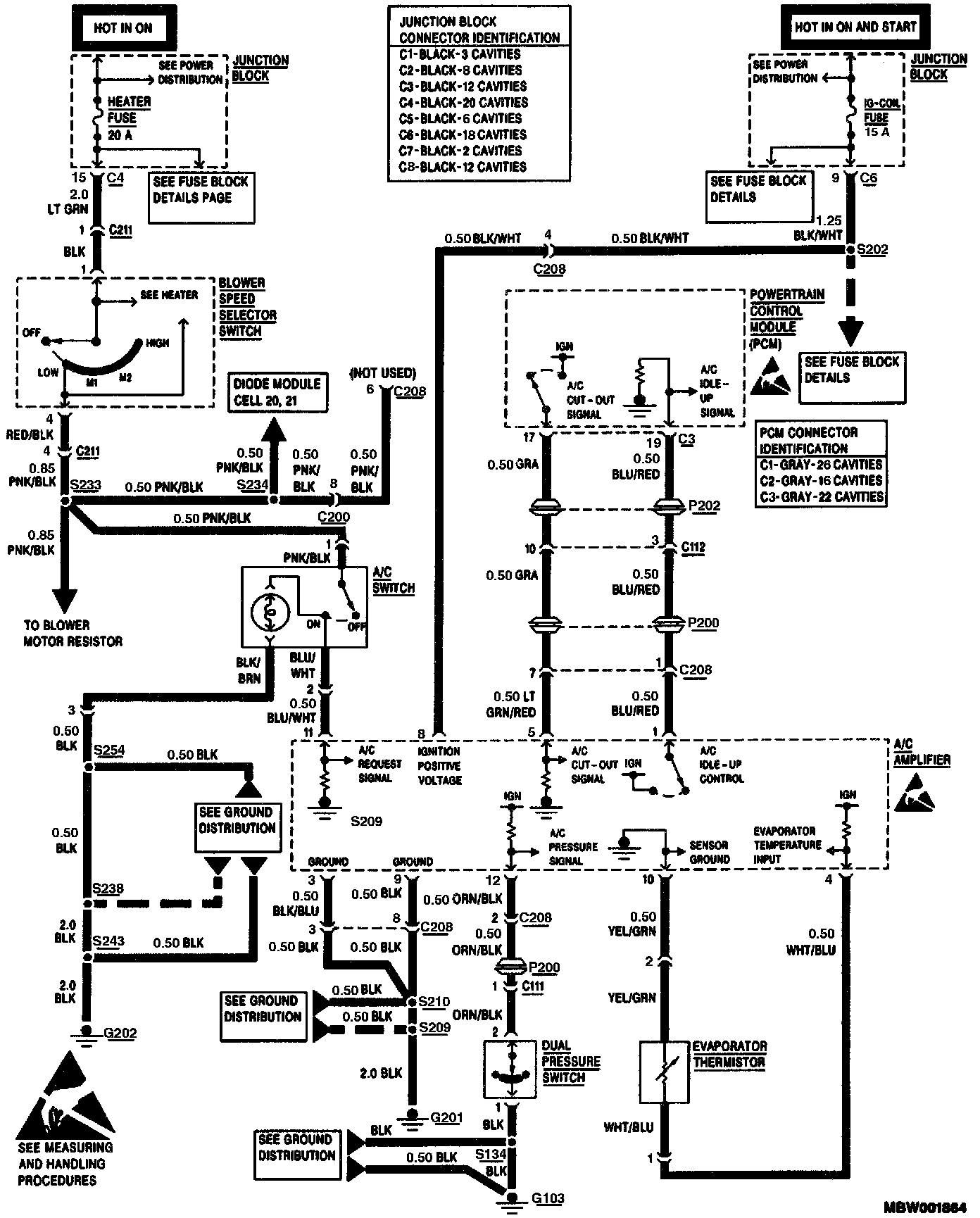

Compressor/Condenser Fan Controls (Part 2 Of 2):
