Alternator: Locations

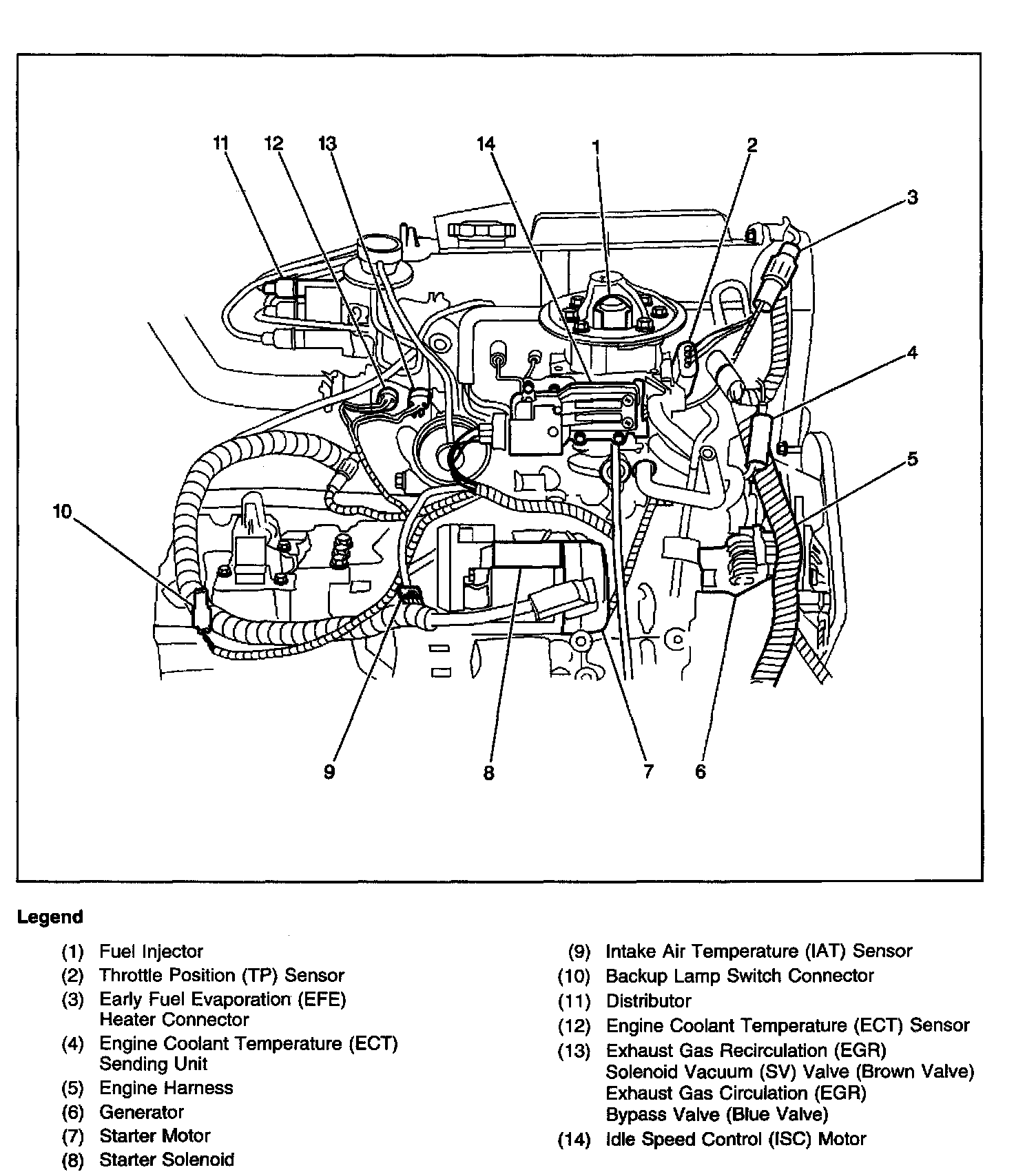

Engine (rear View):
Right rear side of the engine compartment, mounted to the engine
