Home >> Pontiac >> 1997 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Upper Block

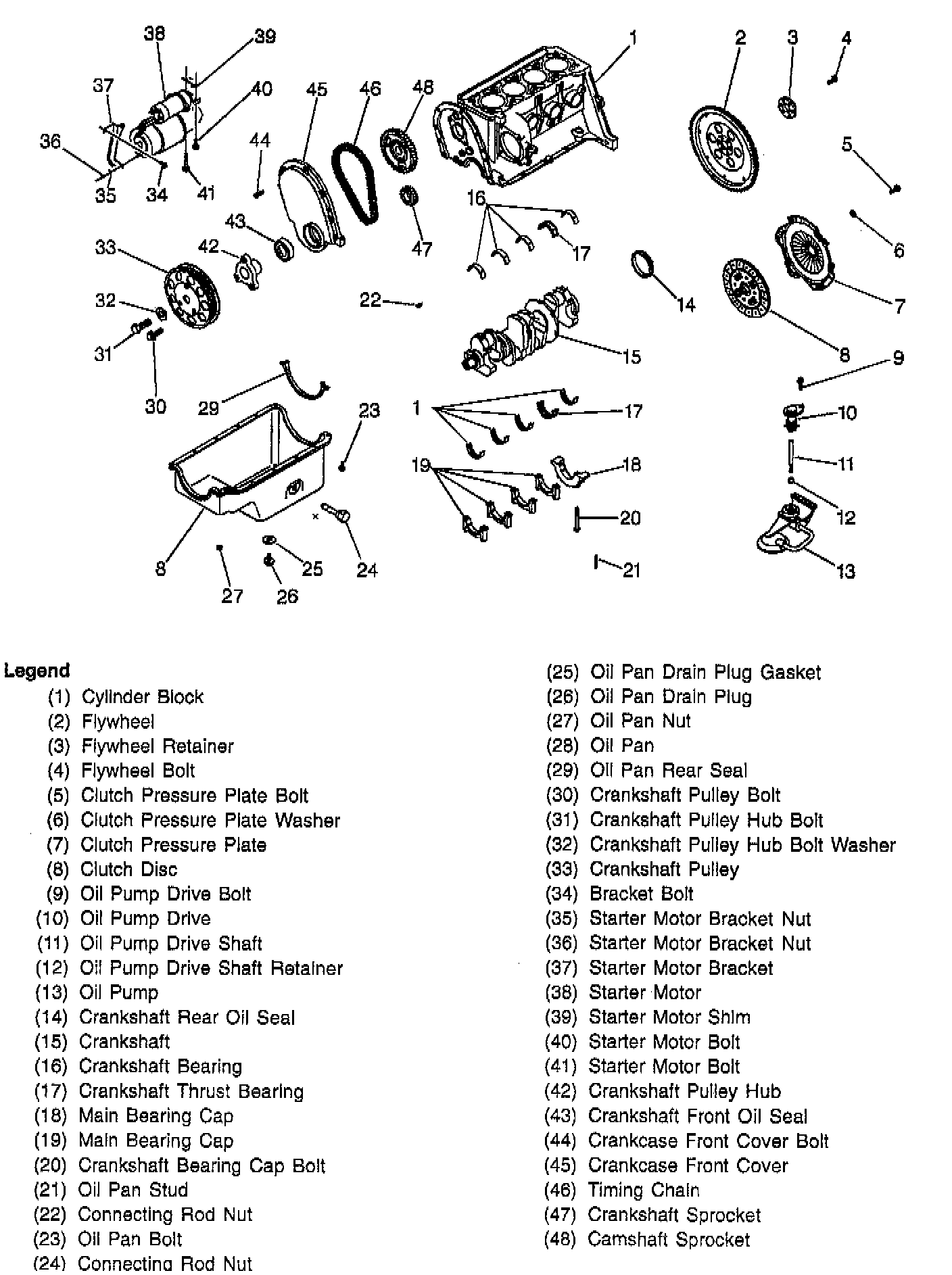

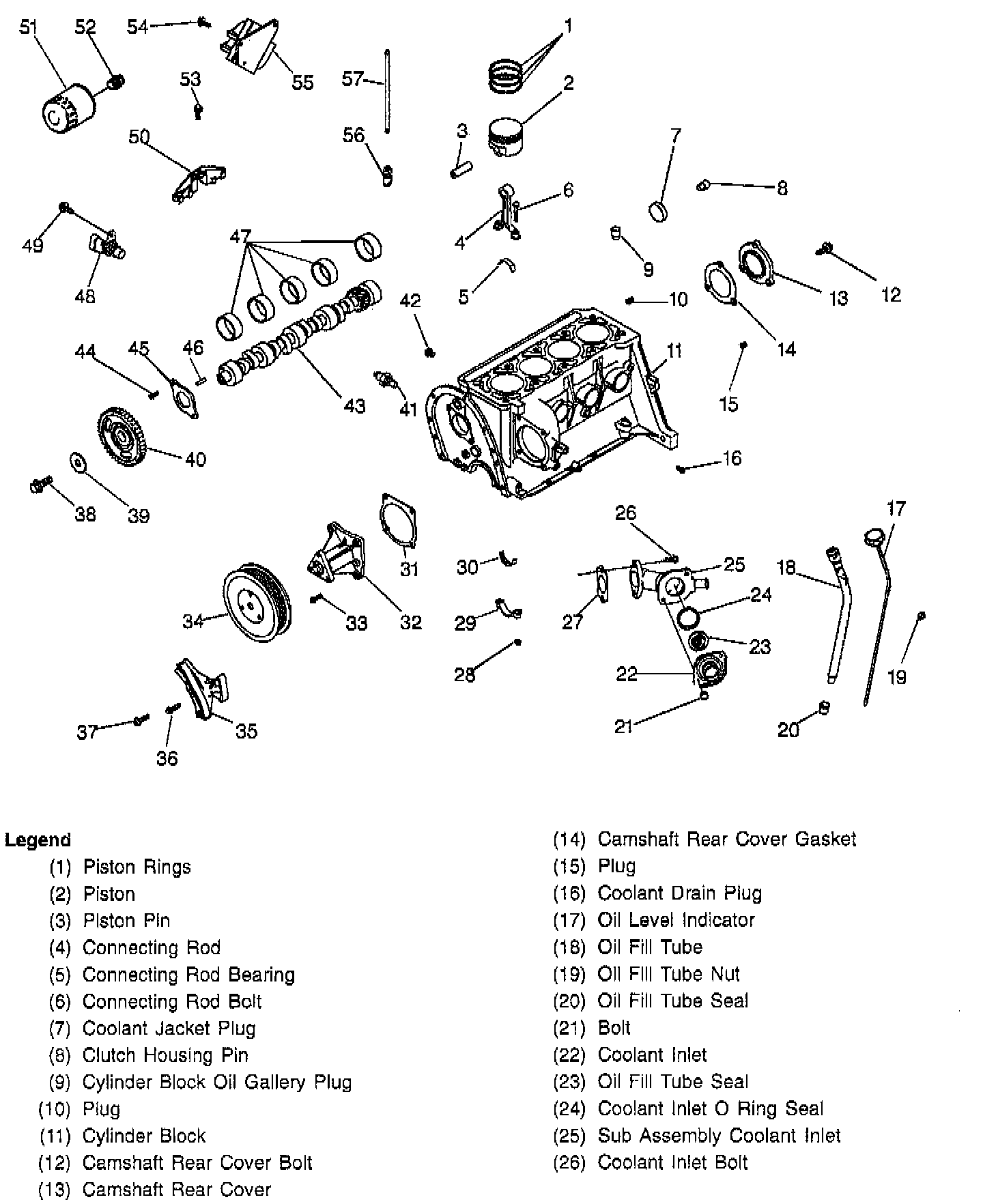

Upper Block

(Part 1 Of 2):
