Home
>>
Pontiac
>>
1997
>>
Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emission Controls
>>
EVAP Controls
EVAP Controls

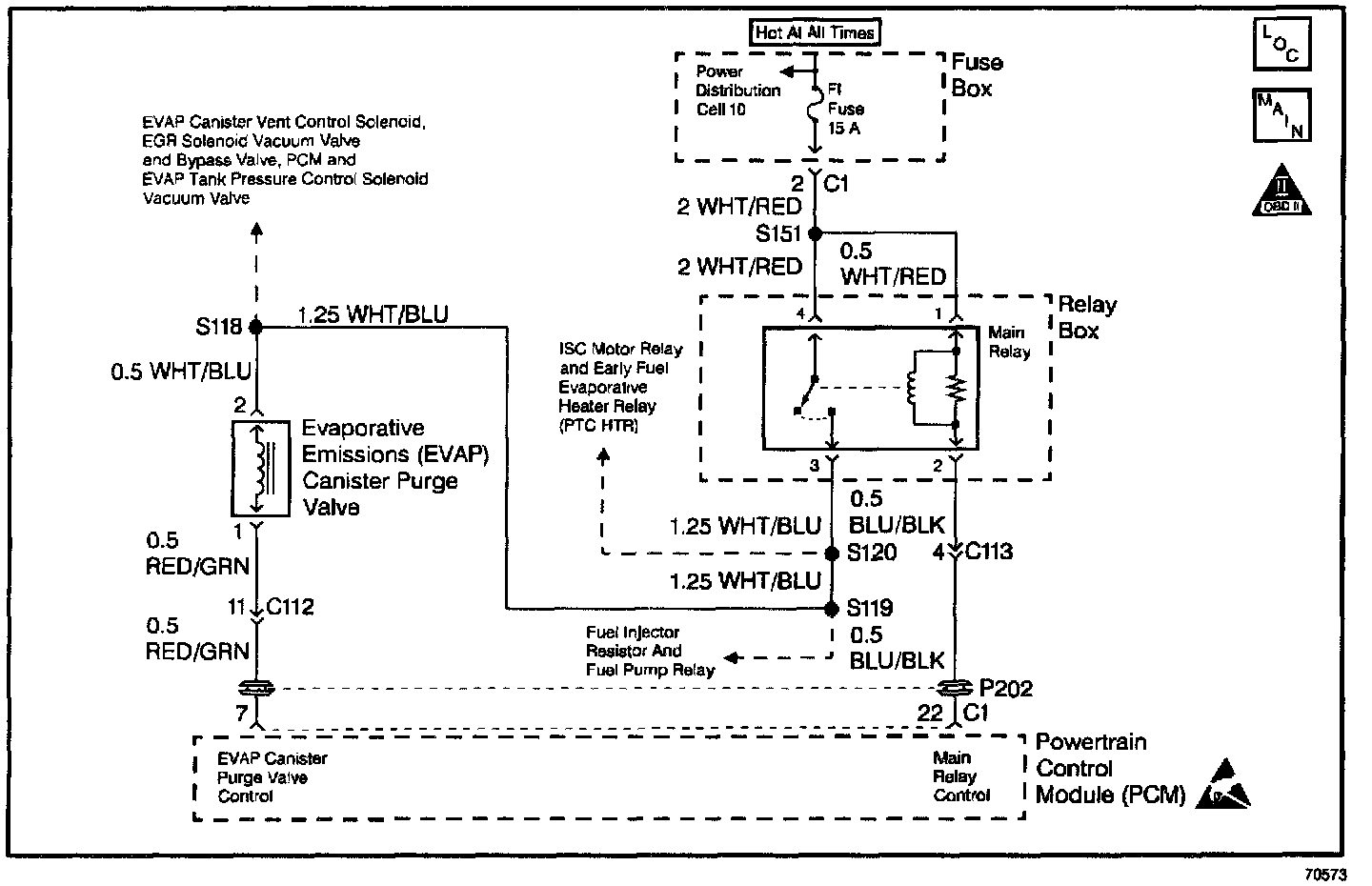

Wiring Diagram:
