Curiosii for ever!: Car repair manuals for everyone.
Home >> Pontiac >> 1996 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

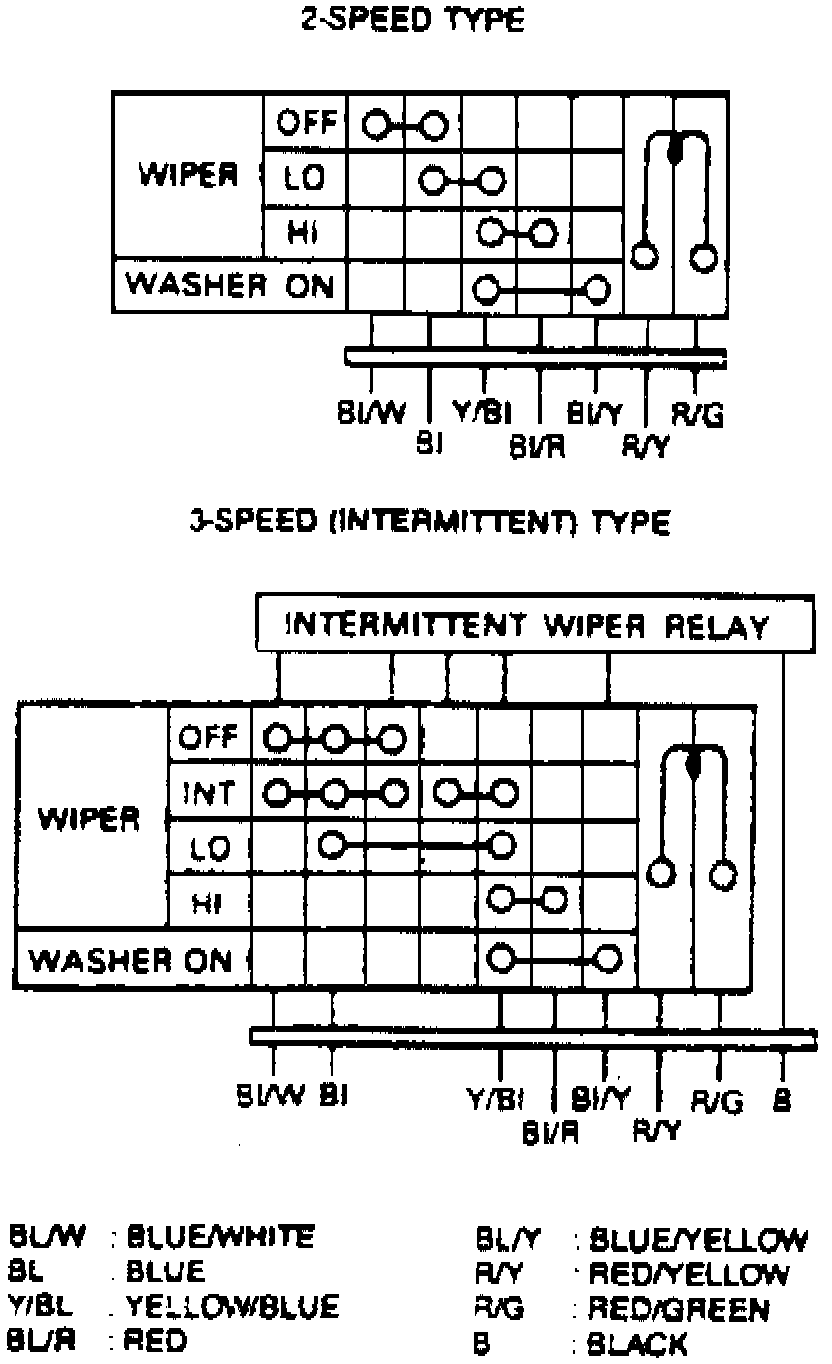

Fig. 17 Wiper Switch Continuity Chart.:
