Column Shift Control

SHIFT CONTROL CABLE

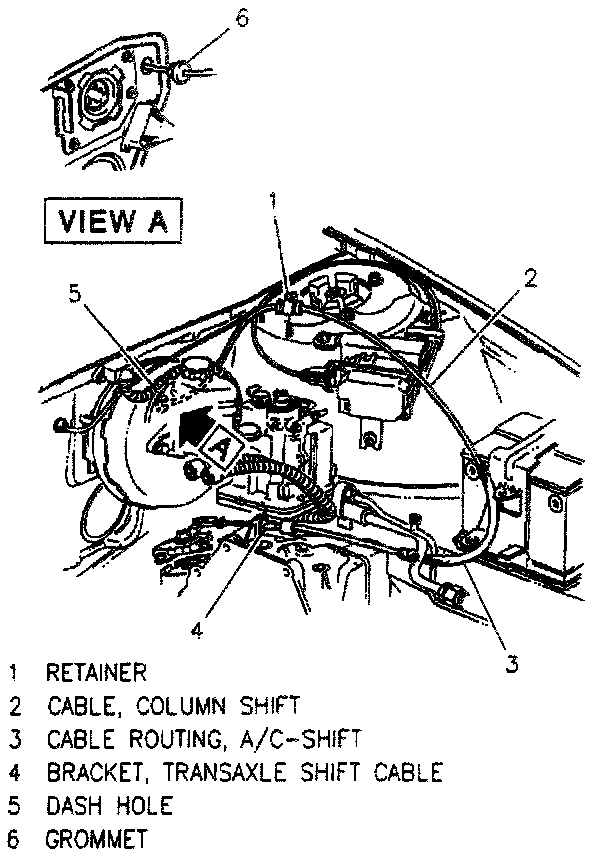

Transaxle Shift Control Cable (Oldsmobile And Pontiac):

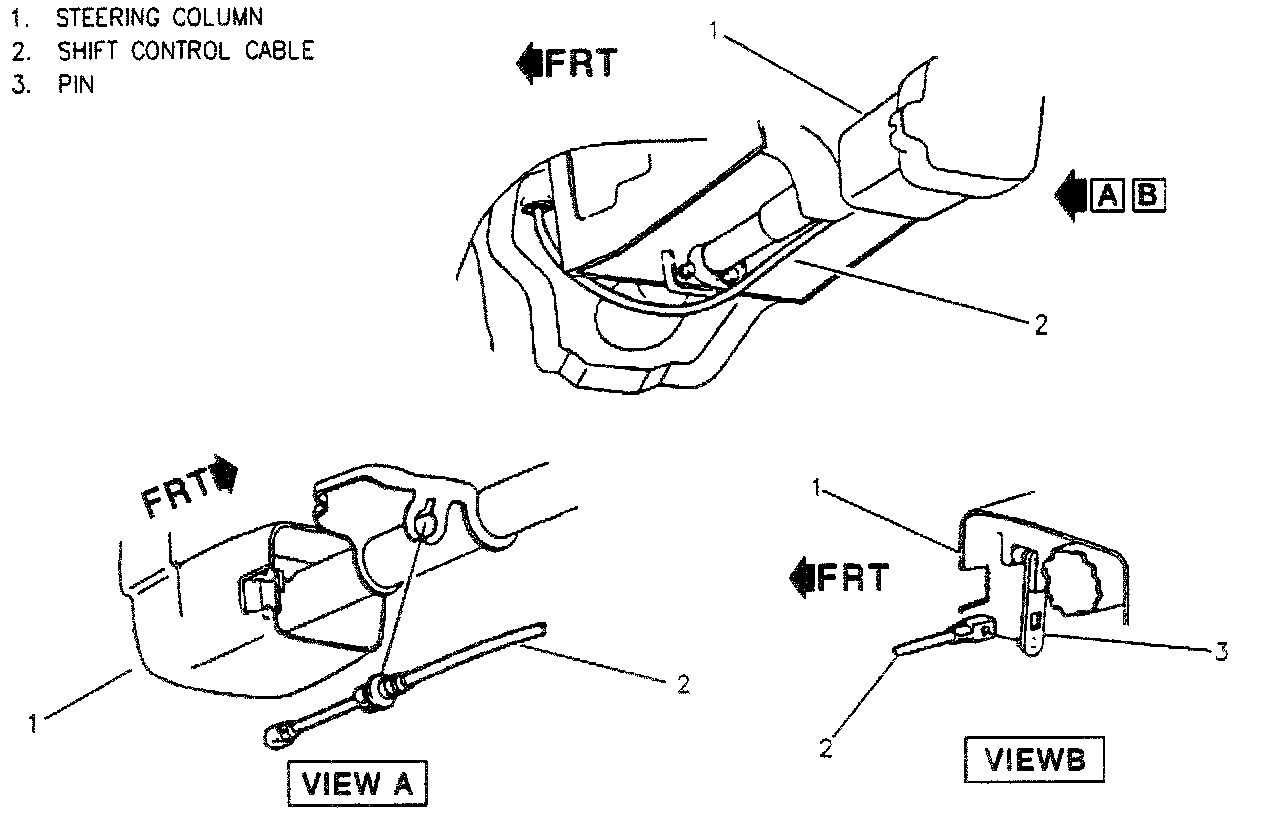

Column Shift Control Cable:

REMOVE OR DISCONNECT
1. Air cleaner.
2. Cable from transaxle lever and bracket.
3. Cable from strut tower.
4. Left sound insulator.
5. Steering column trim panel.
6. Cable from shift control lever.
7. Cable from steering column bracket.
8. Cable through hole in cowl.

INSTALL OR CONNECT
1. Properly route and position cable.
2. Cable to steering column bracket.
3. Cable to shift control lever.
4. Steering column trim panel.
5. Left sound insulator.
6. Cable to strut tower.
7. Cable to transaxle lever and bracket.
8. Air cleaner.

ADJUST
^ Cable.
