Fluid Line/Hose: Locations

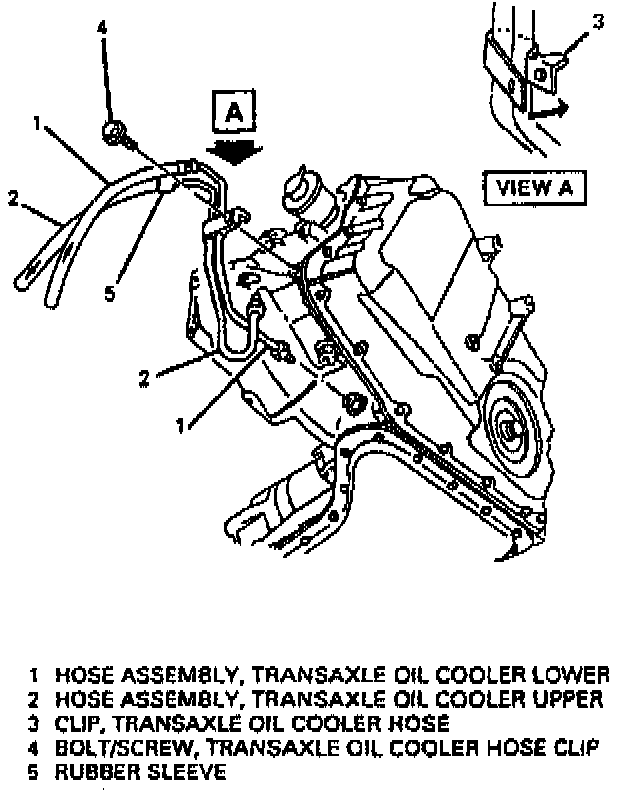

Transaxle Cooler Pipes - Hydra-Matic 4T60-E:



Transaxle Oil Cooler Hoses:
