Grand Prix V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
Pictoral Views
>>

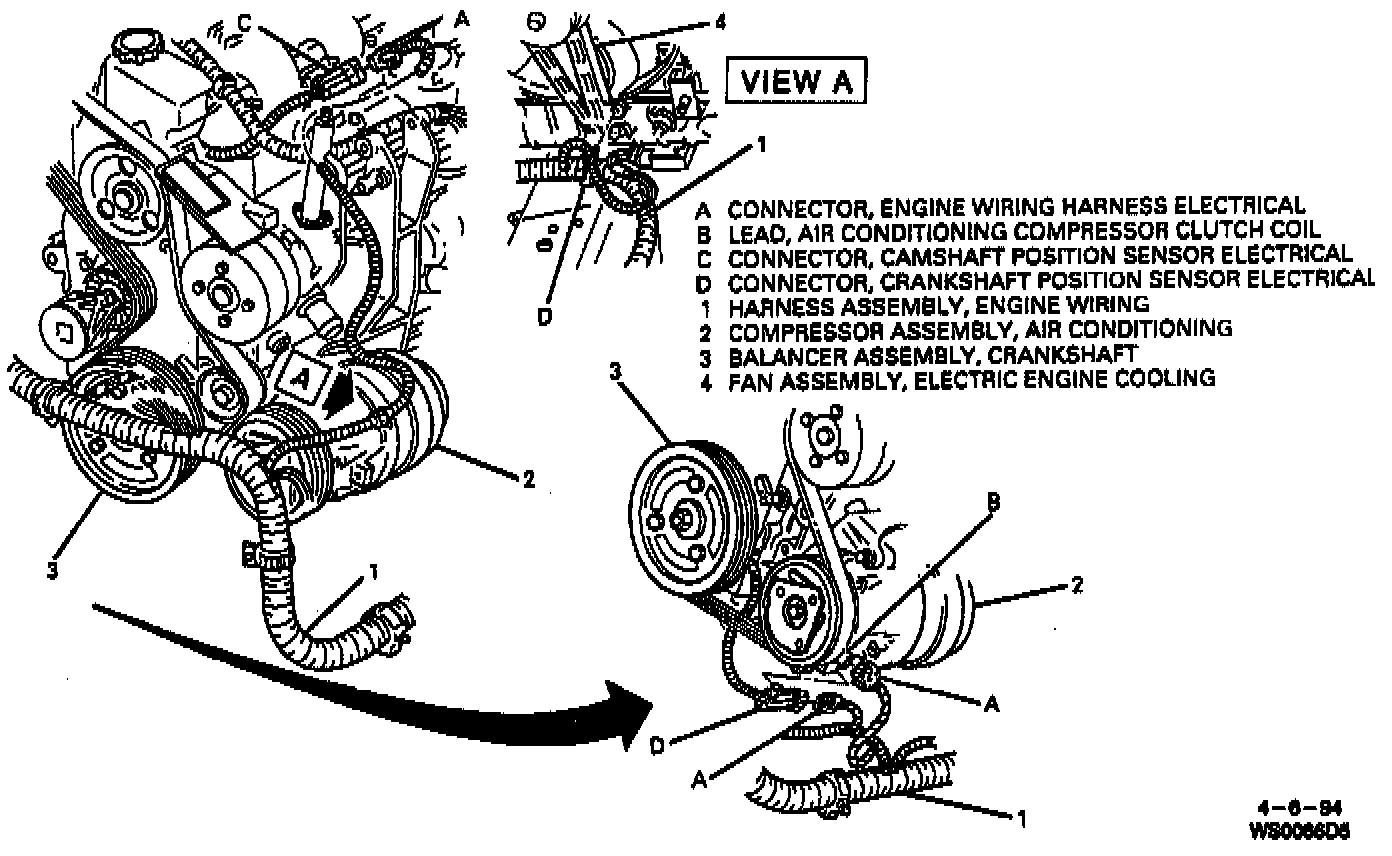

Engine Wiring, LH Side
Engine Wiring, LH Side

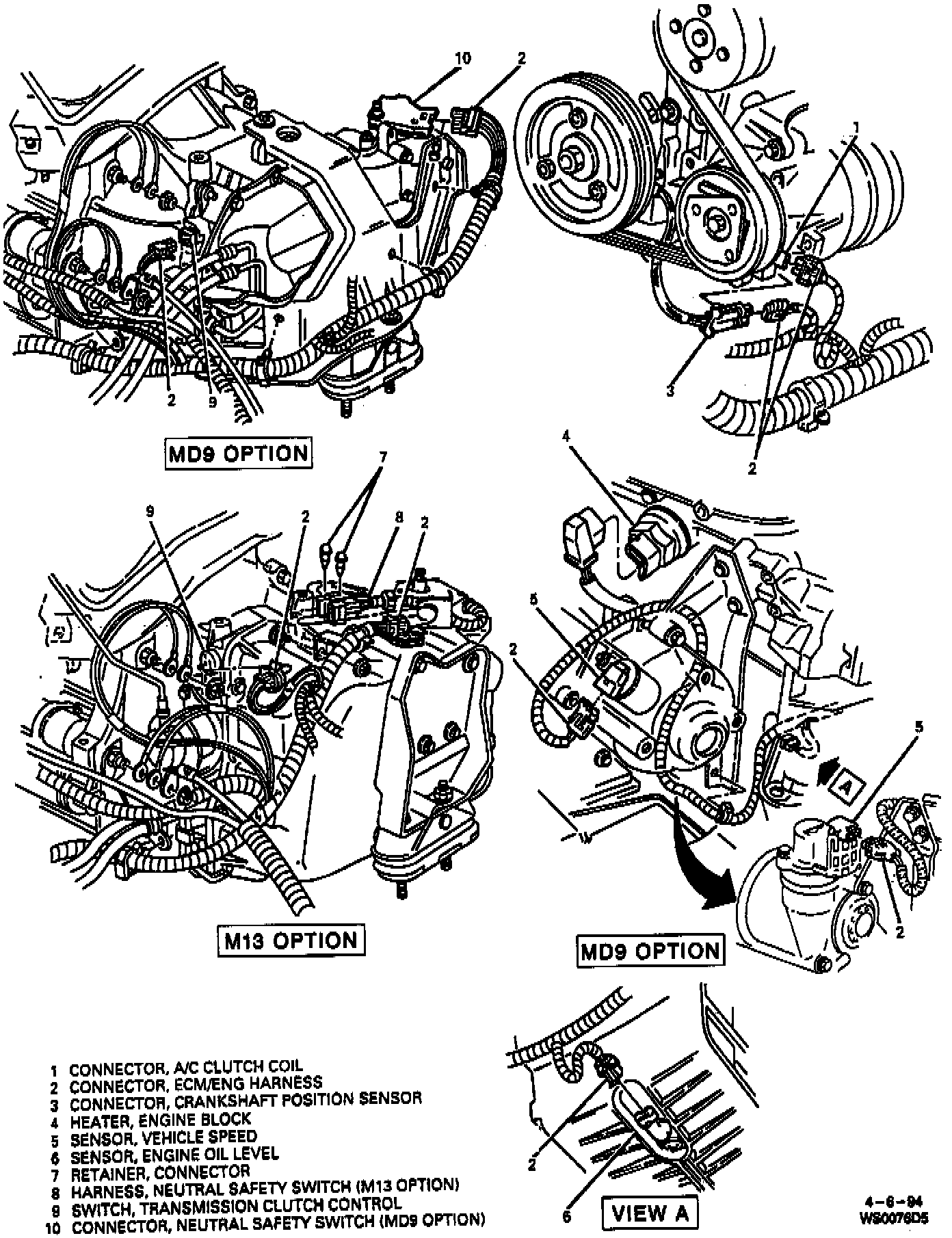

Engine Wiring (left Side):
Engine Wiring (left Side):
