Pontiac
>>
1995
>>
Grand Prix V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
>>

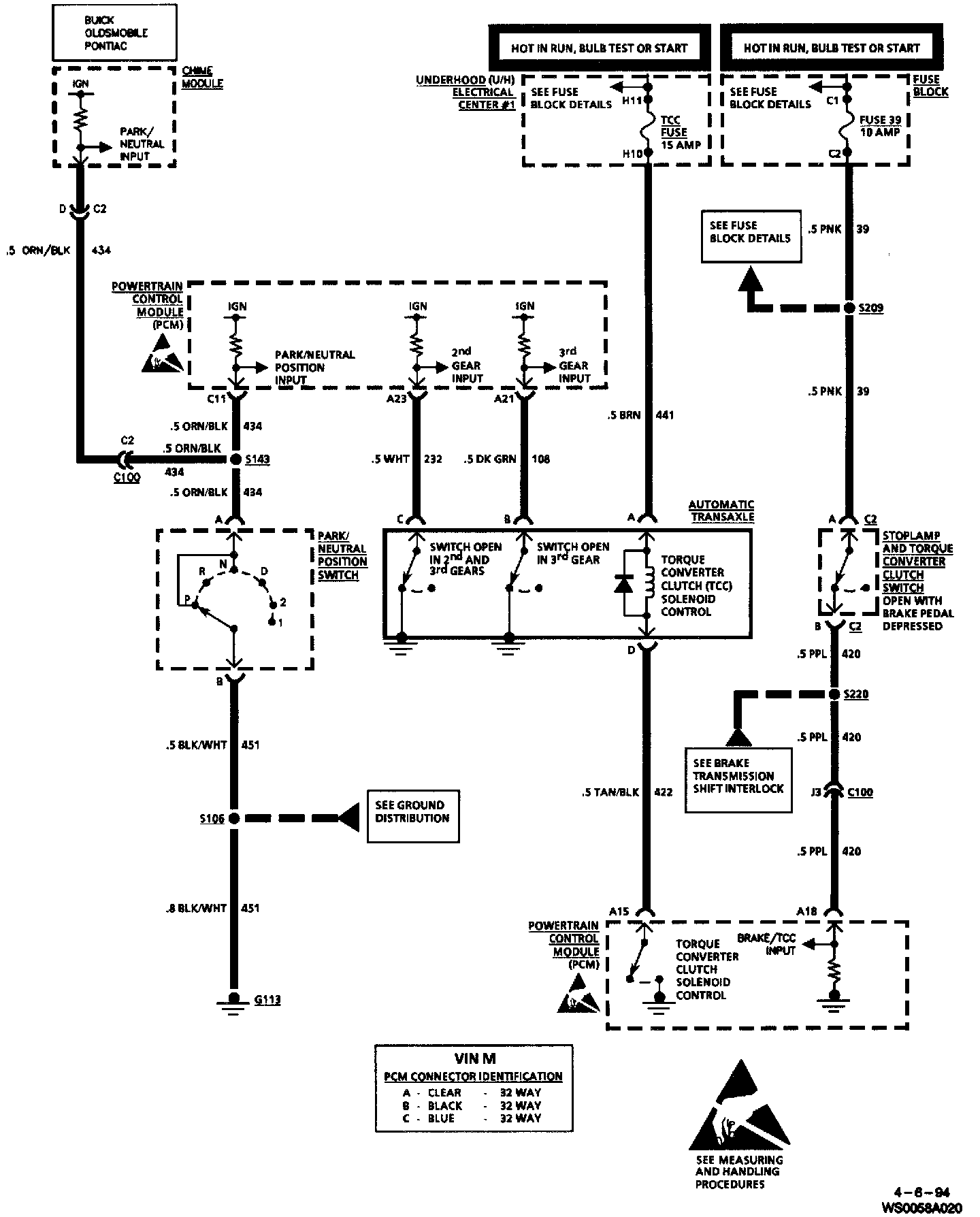

With 3T40 Automatic Transaxle
With 3T40 Automatic Transaxle
3 Speed Automatic Transaxle (3T40):
