Home >> Pontiac >> 1995 >> Grand Prix V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor

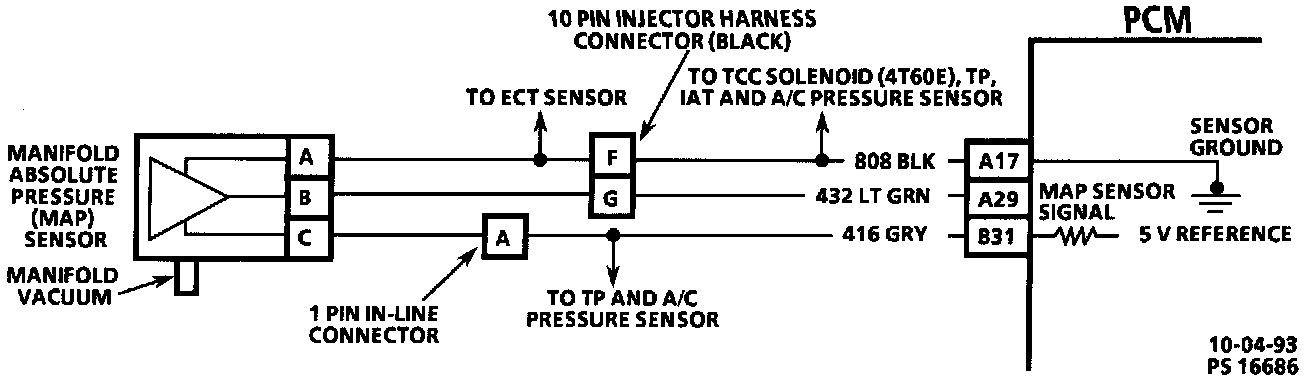

Manifold Pressure/Vacuum Sensor

Circuit MAP Check:
