Pontiac
>>
1995
>>
Grand Prix V6-3100 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Heads Up Display Unit
>>

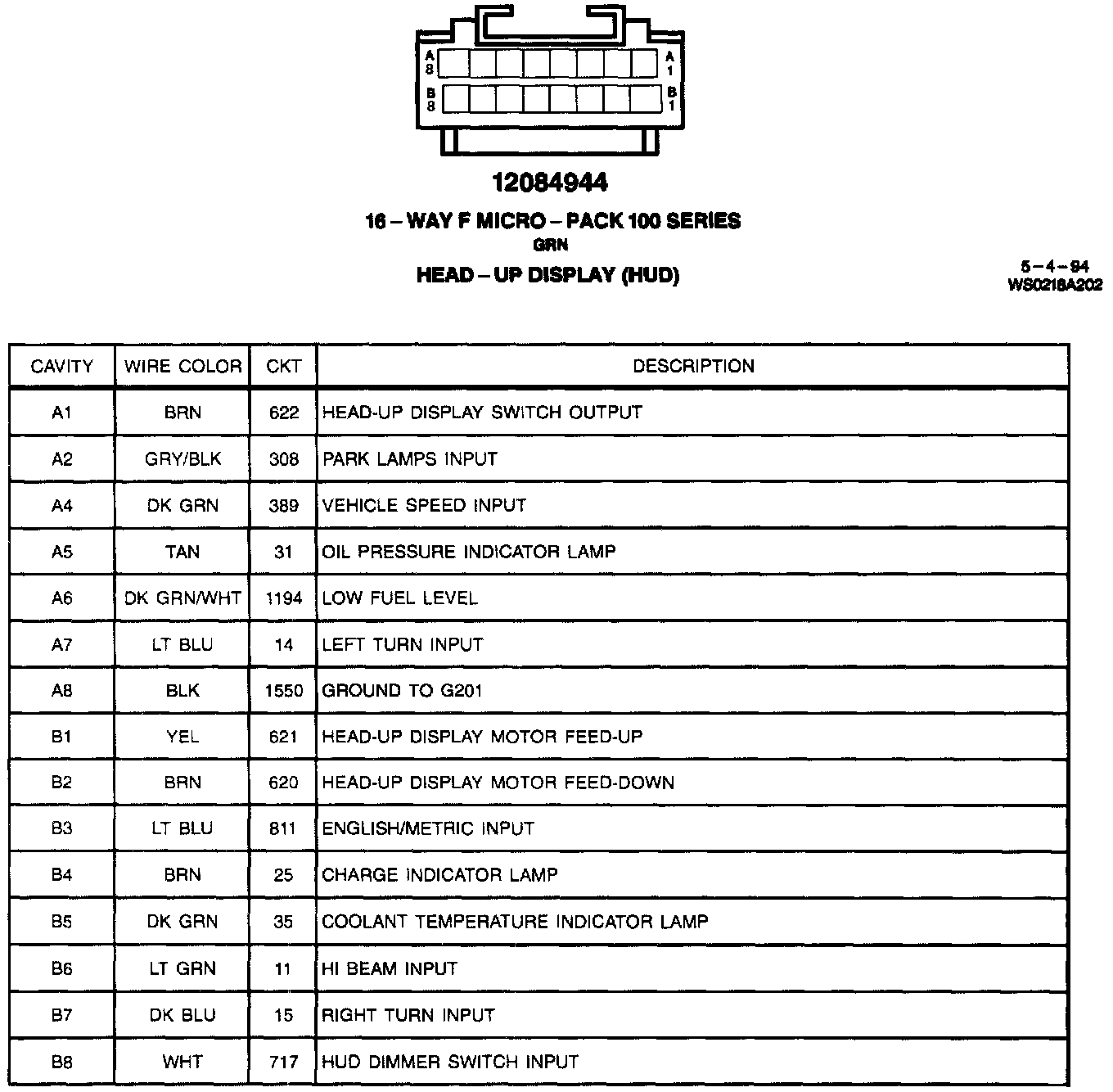

Head Up Display (HUD) Module
Head Up Display (HUD) Module
Head-Up Display (HUD):
