ABS Main Relay: Locations

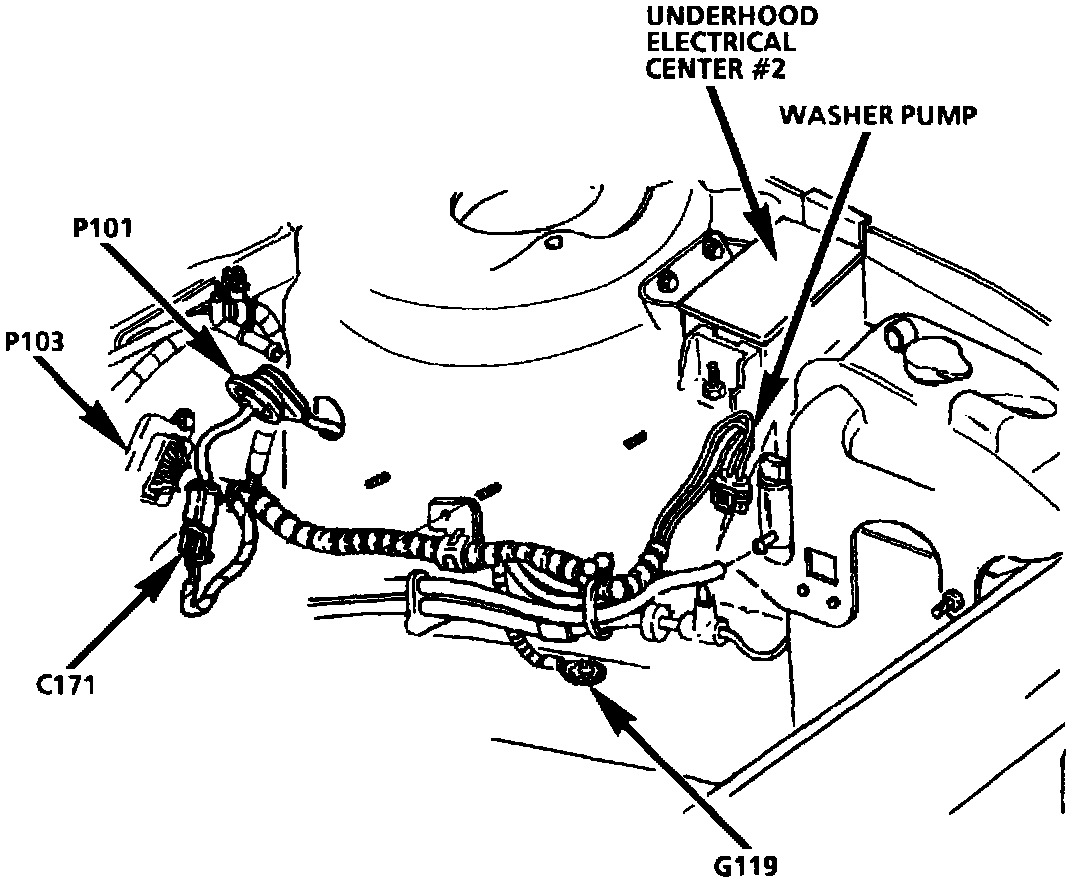

LH Side Of Engine Compartment:

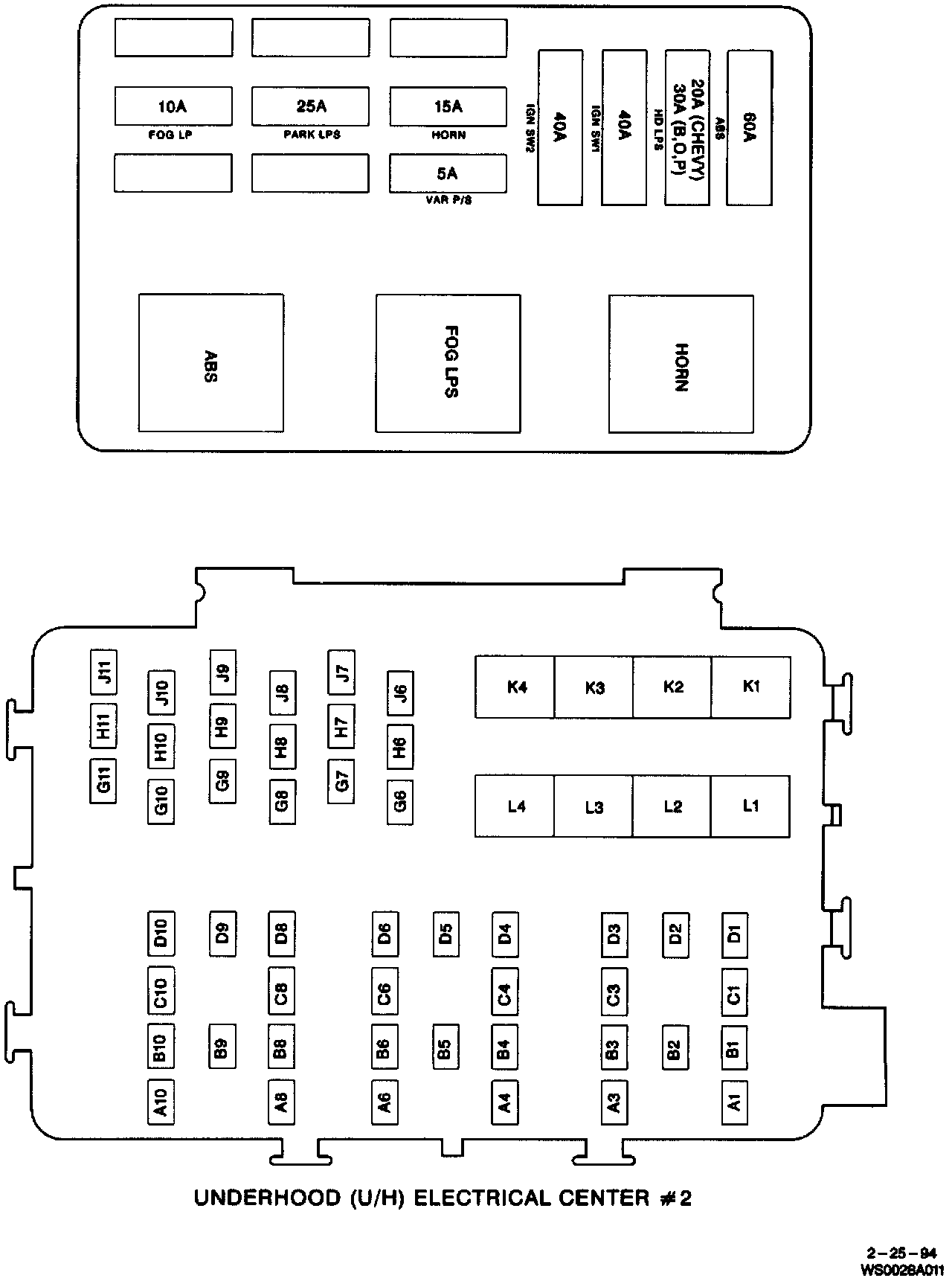

Underhood Electrical Center #2:






The anti-lock braking system (ABS) relay is located in the Underhood (U/H) Electrical Center # 2.
