Powertrain Controls - ECM/PCM

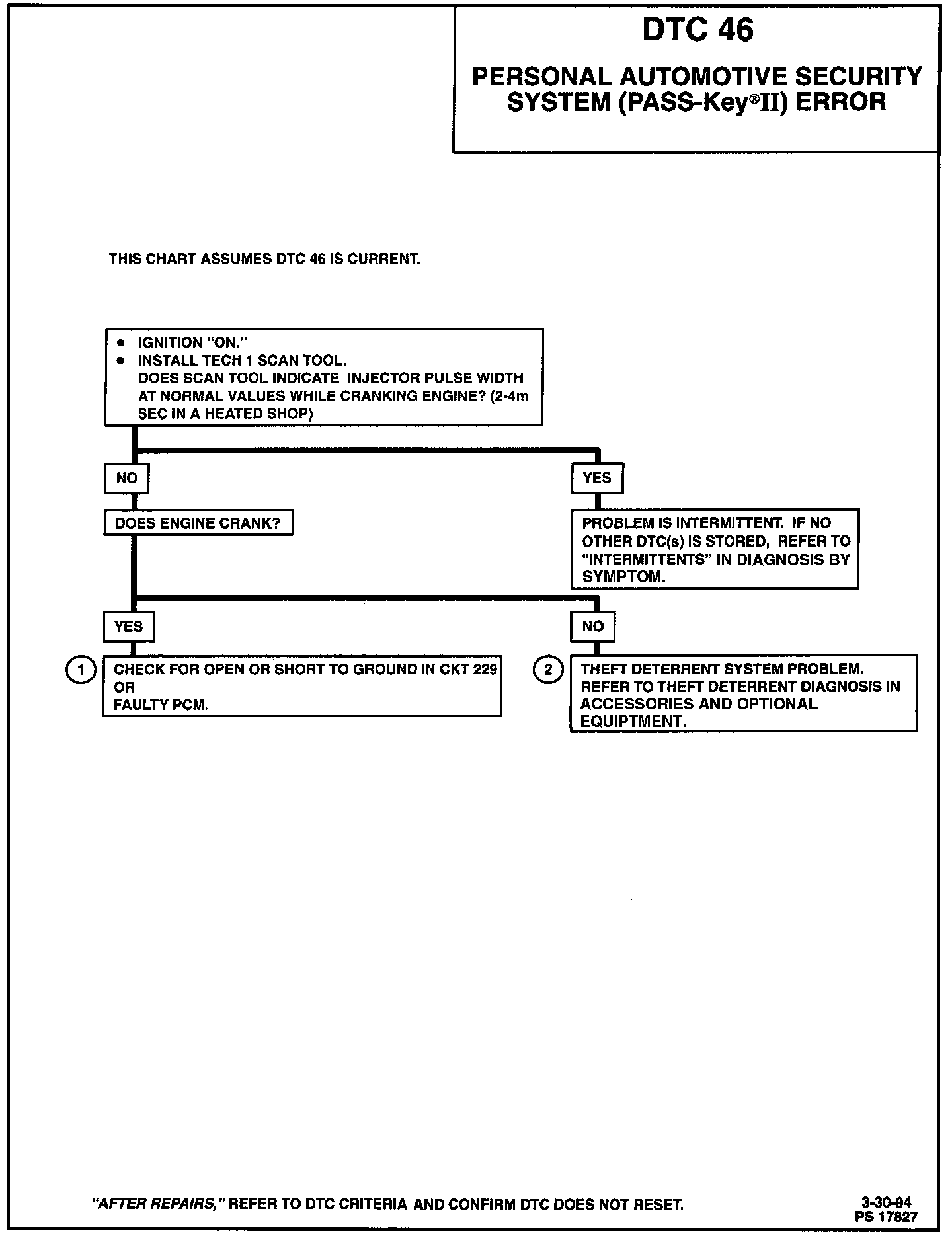

Chart DTC 46 Pass Key II Error:

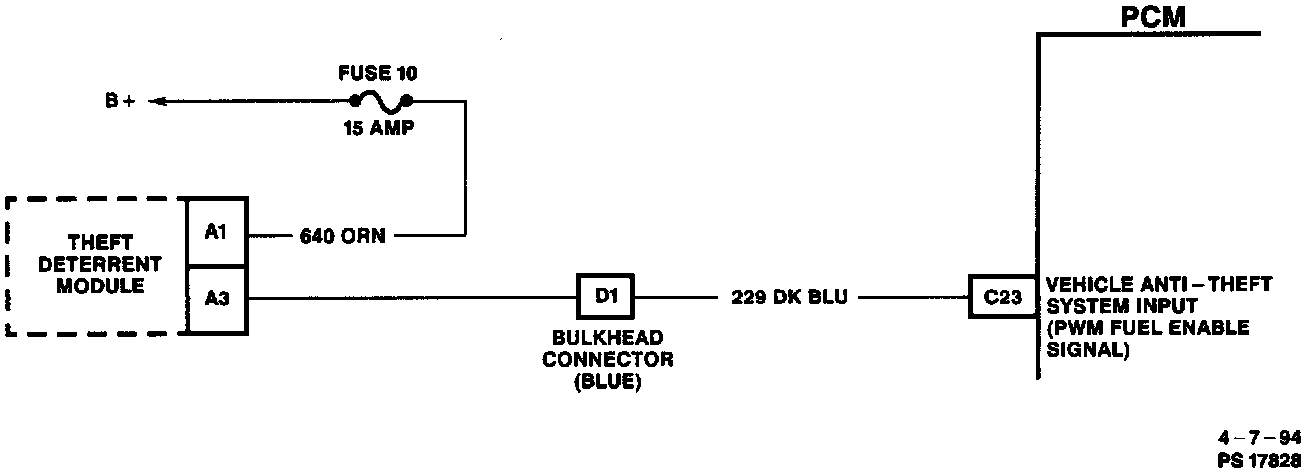

Circuit DTC 46 Pass Key II Error:

CIRCUIT DESCRIPTION
The Theft Deterrent system is designed to disable vehicle operation if the incorrect key or starting procedure is used. The Theft Deterrent module sends a signal to the Powertrain Control Module (PCM) if the correct key is being used. If the proper signal does not reach the PCM on CKT 229, the PCM will not pulse the injectors "ON" and thus not allow the vehicle to be started.

Diagnostic Trouble Code (DTC) 46 Will Set When: The PCM does not receive the proper signal on CKT 229 when the ignition is turned ON."

Action Taken (PCM will default to): The malfunction indicator light will not be illuminated. A PASS-Key II fault will be stored in the PCM memory, engine will crank but will not start.

DTC 46 Will Clear When: A current DTC 46 will clear when the PCM receives a proper signal on CKT 229. A History DTC 46 will clear after 50 consecutive key cycles without a current DTC 46 being stored.

TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.

1. If the engine cranks, but doesn't start. It indicates that the portion of the module which generates the signal to the PCM is not operating or CKT 229 is open or shorted to ground. If the decoder module is found to be OK, the PCM may be at fault, but this is not a likely condition.
2. If DTC 46 is stored, and the engine will not crank, it indicates that there is a PASS-Key II problem or an incorrect key or starting procedure is being used.
