Pontiac
>>
1995
>>
Grand Prix V6-204 3.4L DOHC VIN X SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Throttle Position Sensor
>>
Locations
>>
Component View
Component View

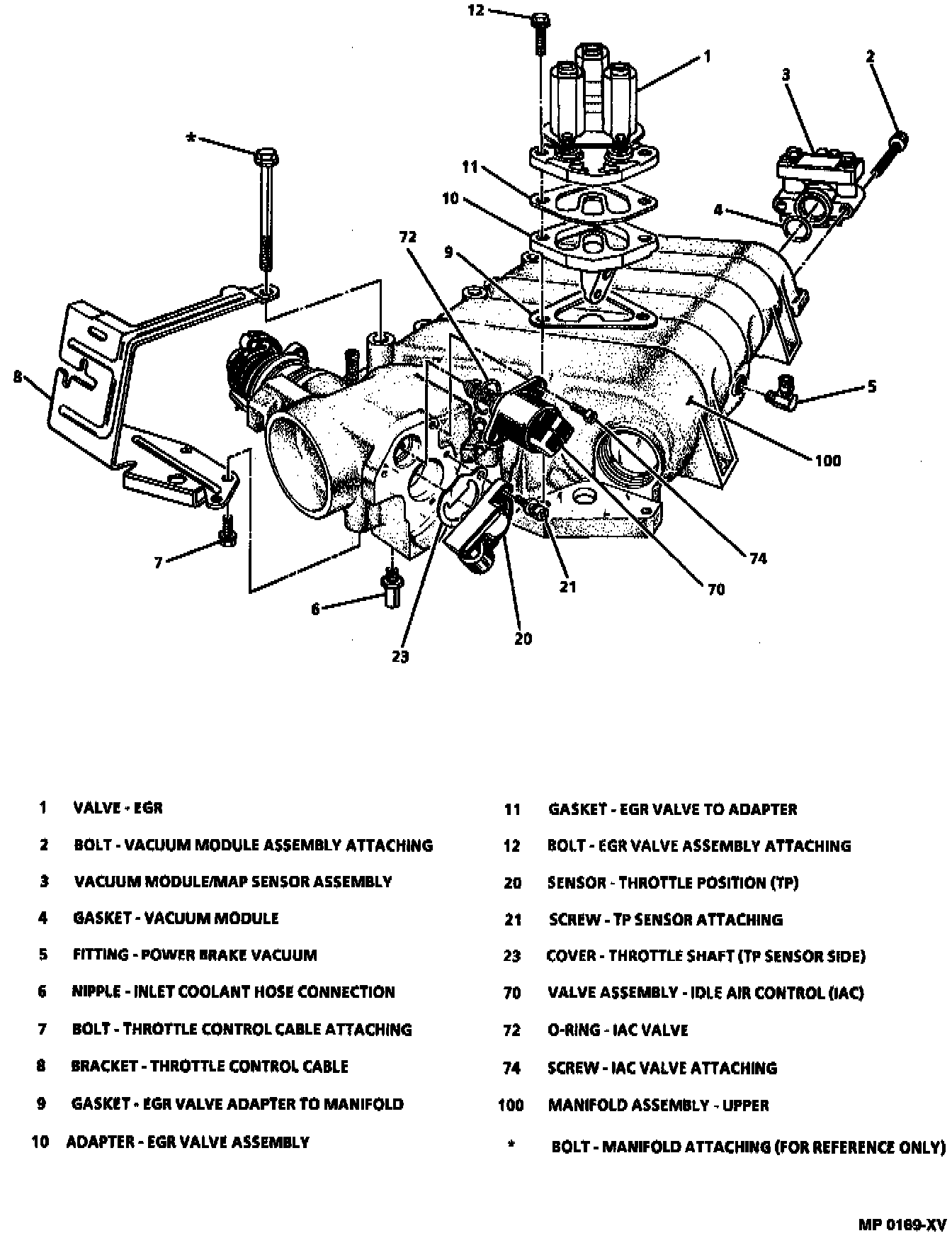

Upper Manifold Assembly Exploded View:
