Home >> Pontiac >> 1995 >> Firebird V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Accessory Delay Module >> Diagrams >> Connector Views >> Retained Accessory Power

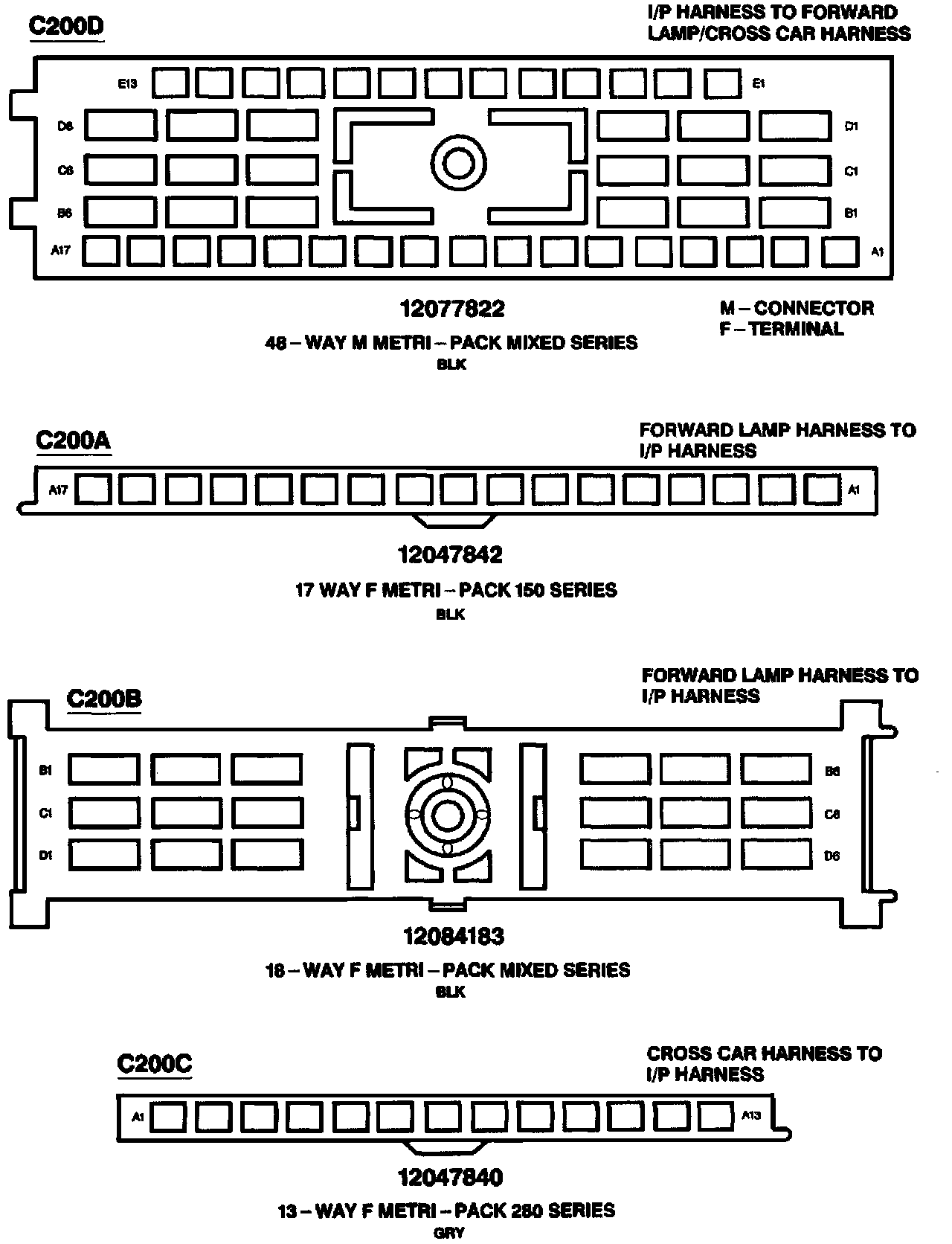

Retained Accessory Power

Retained Accessory Power (RAP): With AU3:
