Home >> Pontiac >> 1995 >> Firebird V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Resistor >> Locations

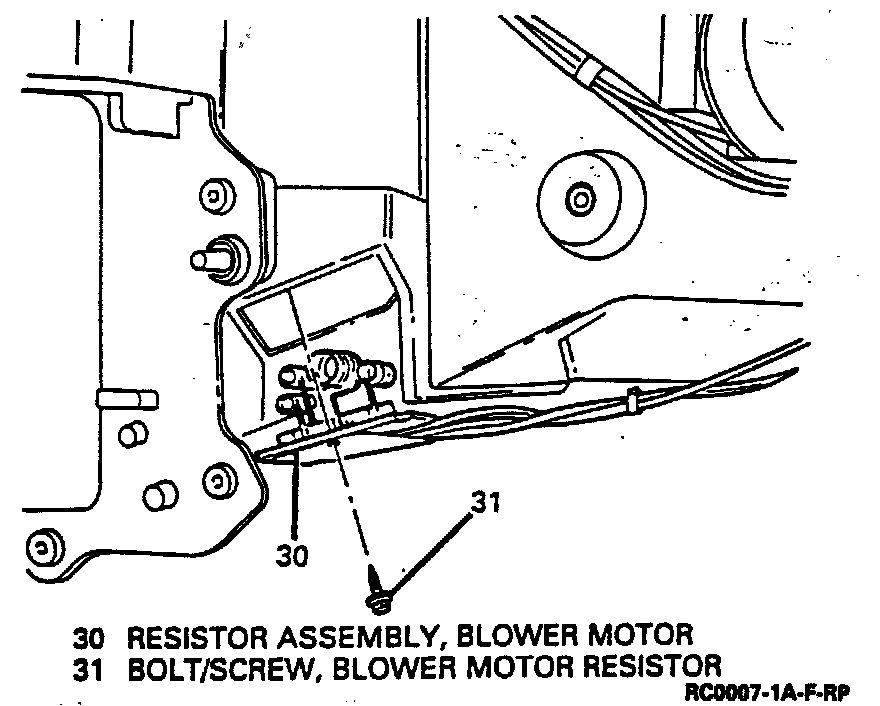

Blower Motor Resistor: Locations

Blower Motor Resistor Assembly:





In HVAC Module, forward and left of Temperature Control Cable Attachment.
