Piston & Rod Assembly

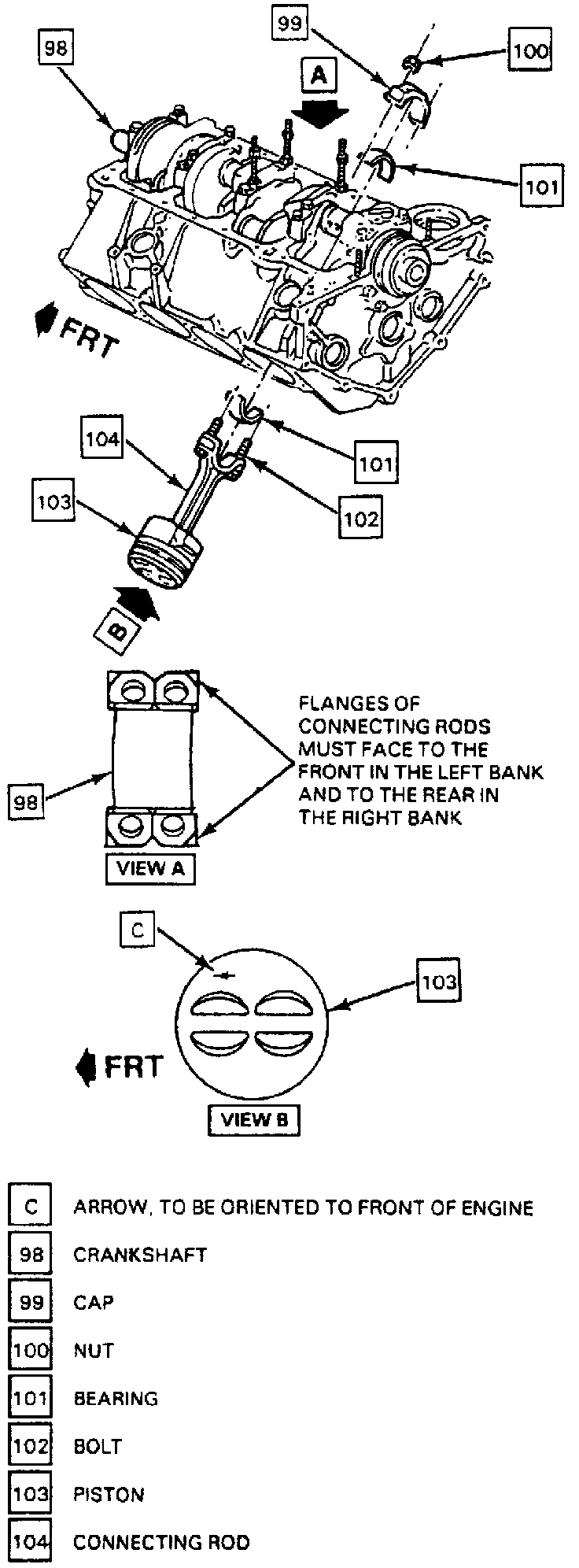

Fig. 15 Piston & Rod Assembly:

Assemble pistons to connecting rods as shown in Fig. 15. Upon installation, measure the connecting rod side clearance using a suitable feeler gauge. Refer to Engine Rebuilding Specifications for connecting rod side clearance.
