Home
>>
Pontiac
>>
1995
>>
Firebird V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Delivery & Controls
>>
Fuel Pump Controls
Fuel Pump Controls

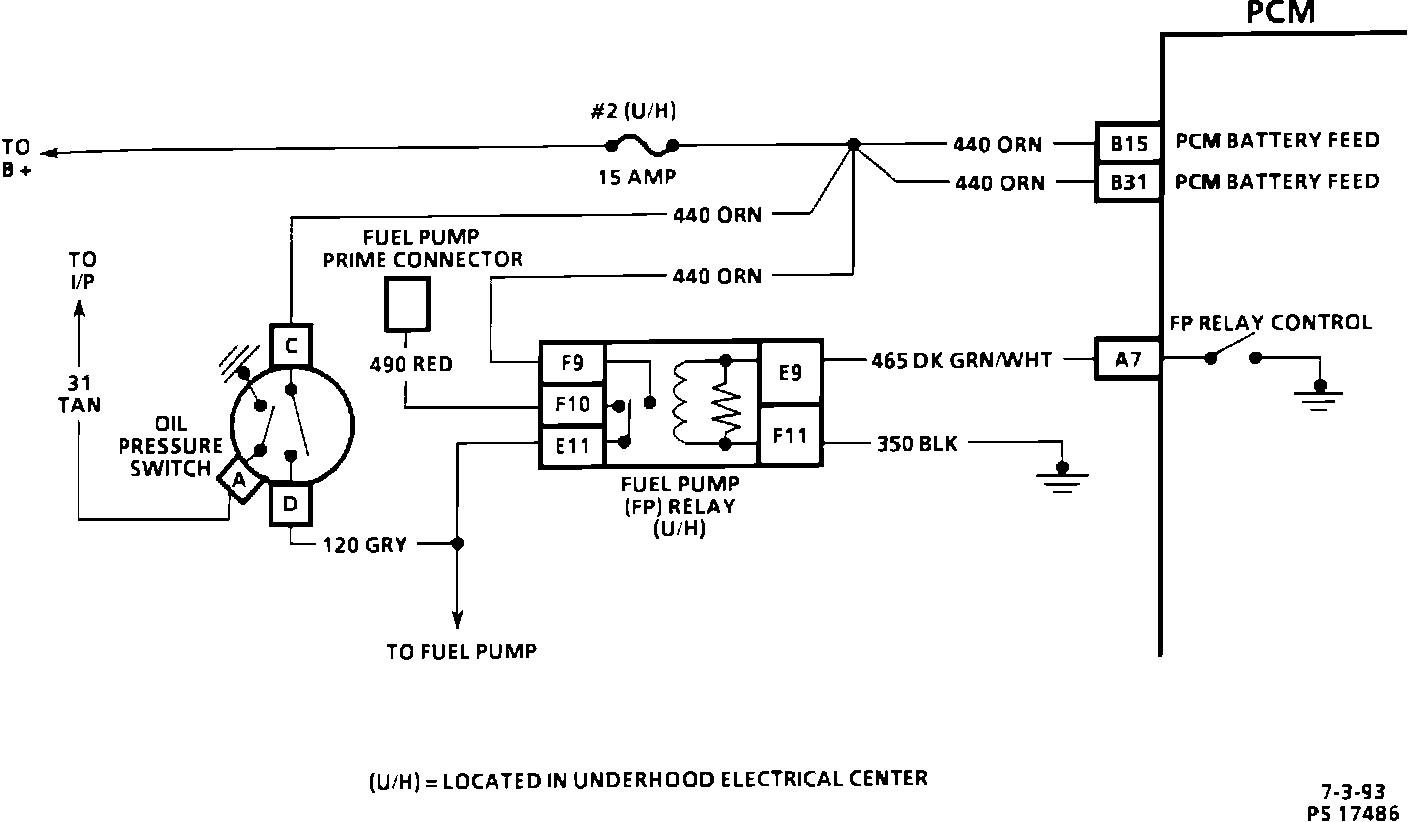

Fuel Pump Relay Circuit:
