Pontiac
>>
1995
>>
Firebird V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Bank 2
Bank 2

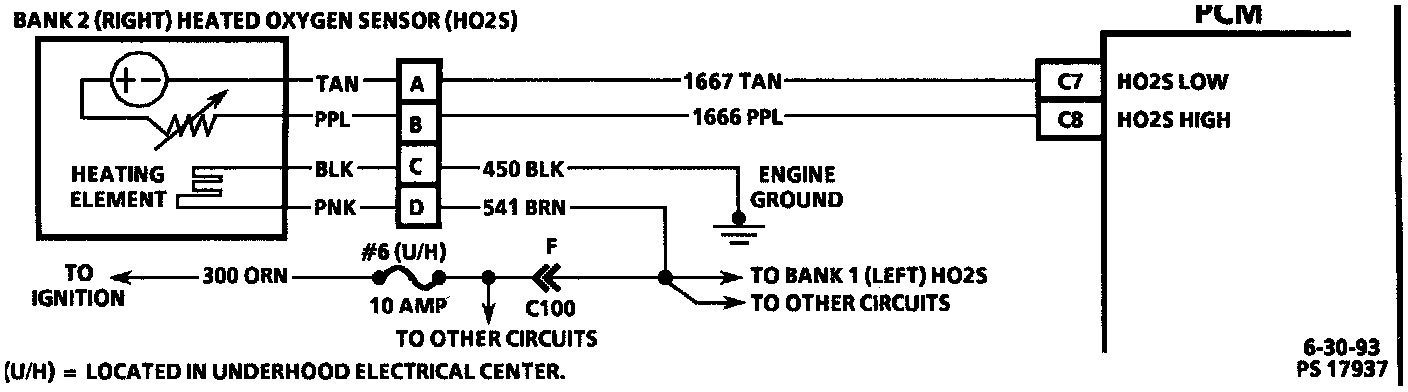

Heated Oxygen Sensor Circuit:
