Pontiac
>>
1995
>>
Firebird V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Connector Views
>>
Cruise Control Module Connector
Cruise Control Module Connector

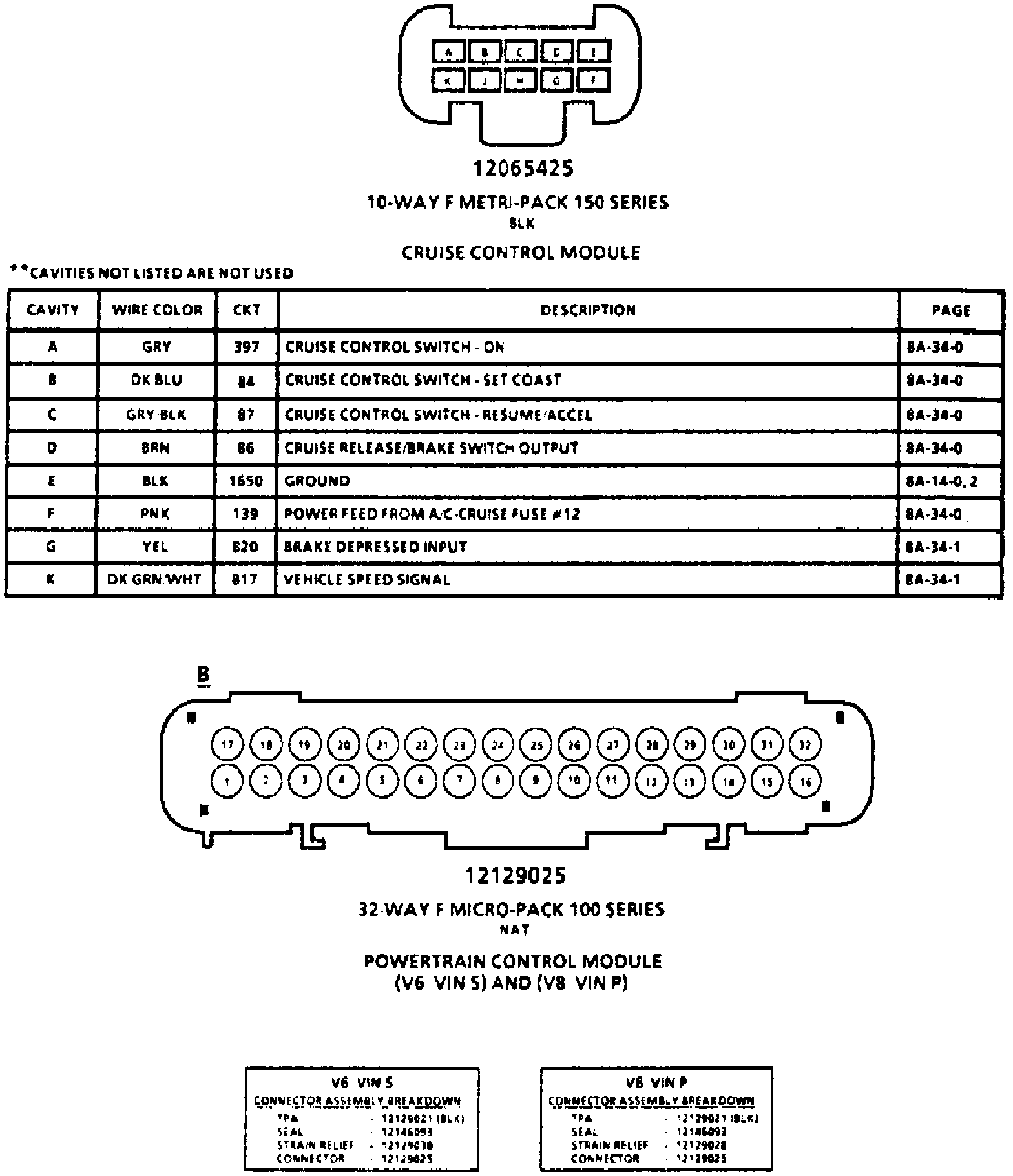

Fig. 6 Cruise Control Module Pin Location:
