Service Procedure & Campaign Identification Label
SERVICE PROCEDURE1. With ignition in the "OFF" position, open hood and disconnect negative battery cable.
2. Remove instrument panel right sound insulator.
3. Pull bottom of PCM (Powertrain Control Module) away from mounting bracket and remove PCM from bracket.
4. Remove harness connectors from PCM.
5. Remove PCM from vehicle.
6. Remove MEM-CAL access cover.
7. Remove MEM-CAL by using thumb and first finger. Gently squeeze each end of the blue calibrator unit.
8. Install new MEM-CAL in PCM.
9. Install MEM-CAL access cover.
10. Install connectors to PCM.
11. Install PCM into mounting bracket.
12. Install instrument panel right sound insulator.
13. Install negative battery cable.
14. Perform on-board diagnostic system check.
15. If DTC P0325, P1361, P1350, or P1623 occurs or if the MIL (Service Engine Soon) light is "ON" constantly with no DTC's the engine MEM-CAL is not fully seated or is defective.
16. Install Campaign Identification Label.

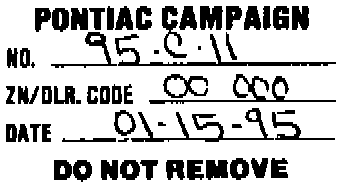

CAMPAIGN IDENTIFICATION LABEL
Each vehicle modified in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label." Each label provides a space to include the campaign number, the five digit dealer code of the dealer performing the campaign service, and the date the vehicle was campaigned. This information may be inserted with a typewriter or ballpoint pen. Install the label only on a clean, dry surface of the radiator baffle where it is readily visible. (Additional campaign labels are available on stationery order as Form 7201-709.)
