Accessory Drive Belt Replacement

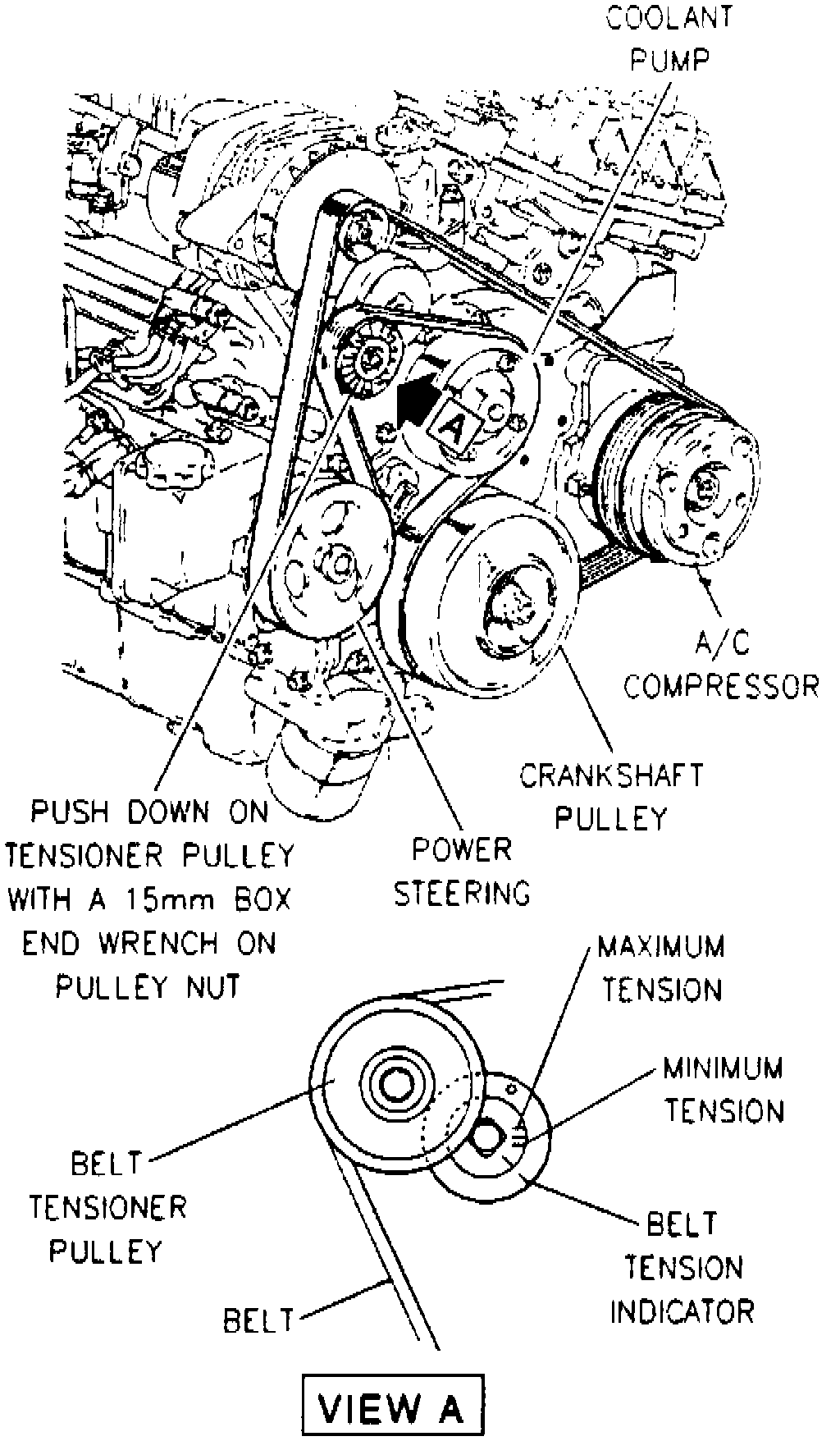

Fig. 25 Serpentine Belt Routing & Replacement:

REMOVE OR DISCONNECT
1. Battery ground cable.
2. Engine mounting bracket lower nut, stud and spacer.
3. Serpentine belt.

INSTALL OR CONNECT
1. Serpentine belt.
2. Engine mounting bracket lower nut, stud and spacer.
3. Battery ground cable.
