P0325

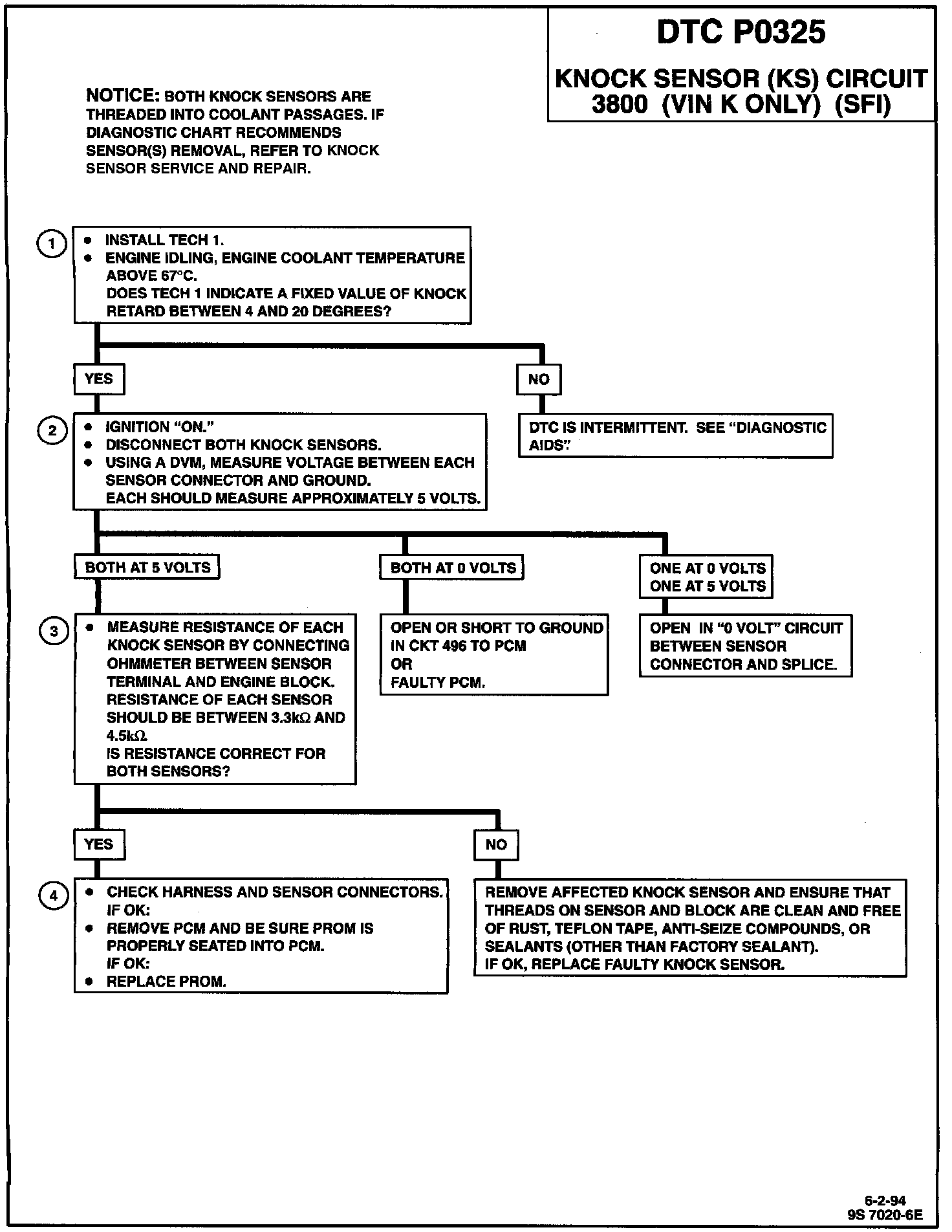

DTC P0325 Knock Sensor Diagnostic Chart:

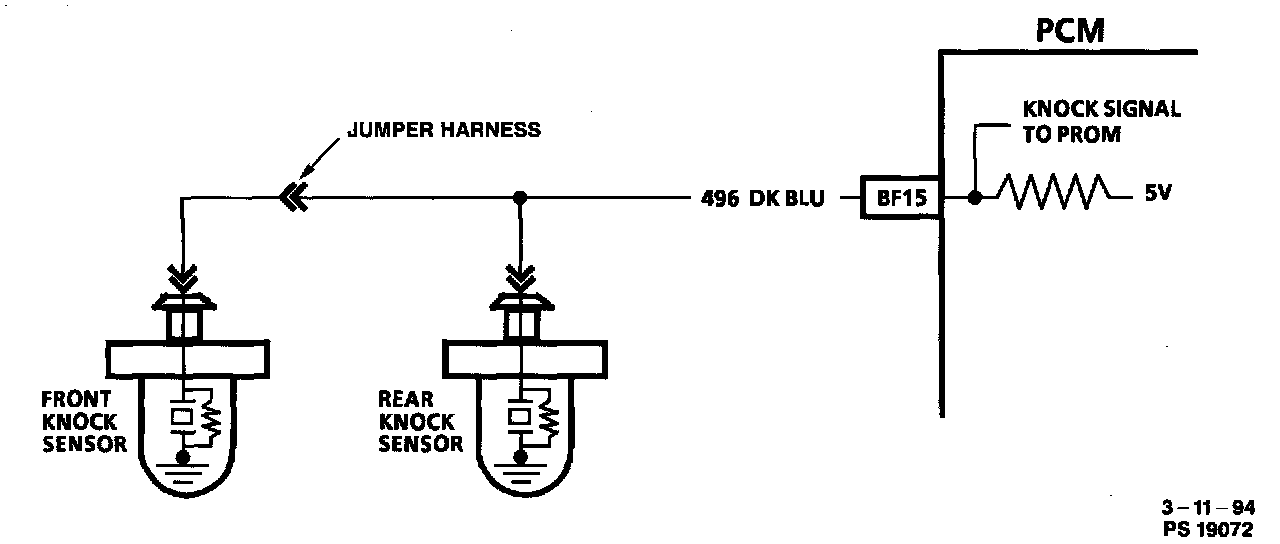

Knock Sensor Wiring Schematic:

CIRCUIT DESCRIPTION
The Knock Sensors (KS) are used to detect engine detonation and allow the Powertrain Control Module (PCM) to retard the Ignition Control (IC) timing based on the signal being received. The circuitry within the knock sensors cause the PCM's supplied 5 volts signal to be pulled down, so that under a no knock condition CKT 496 would measure about 1.3 volts. The knock sensors produce an AC signal which rides on the 1.3 volts DC voltage. The signal amplitude and frequency is dependent upon the knock level.

If CKT 496 becomes open or shorted to ground, the voltage will either go above 2 volts or below 0.8 volt. If either of these conditions are met for 20 seconds, Diagnostic Trouble Code (DTC) P0325 will be stored.

DTC PO325 WILL SET WHEN
^ Voltage on CKT 496 goes above 2 volts or below 0.8 volt.
^ Either condition present for 20 seconds.

ACTION TAKEN (PCM WILL DEFAULT TO)
With DTC P0325 set, the PCM will illuminate the Malfunction Indicator Lamp (MIL) for the remainder of the key cycle and retard spark timing by 10 degrees.

DTC CHART TEST DESCRIPTION
Number(s) below refer to circled number(s) on the diagnostic chart.
1. If DTC P0325 is detected, the PCM will retard spark timing by 10 degrees. If an audible knock is heard from the engine, repair the internal engine problem. Normally no knock should be detected at idle.
2. The PCM applies 5 volts to CKT 496 which should be present at both knock sensor terminals.
3. This test determines if the knock sensor is faulty or if the knock sensor portion of the Programable Read Only Memory (PROM) is faulty.
4. Check CKT 496 for a intermittent open or short to ground. Also check for proper installation of PROM.

DIAGNOSTIC AIDS
If the knock sensor CKT 496 is routed too close to secondary ignition wires it may induce a voltage and cause a false knock signal.

Note: Both knock sensors are threaded into coolant passages.
