HVAC System - Automatic

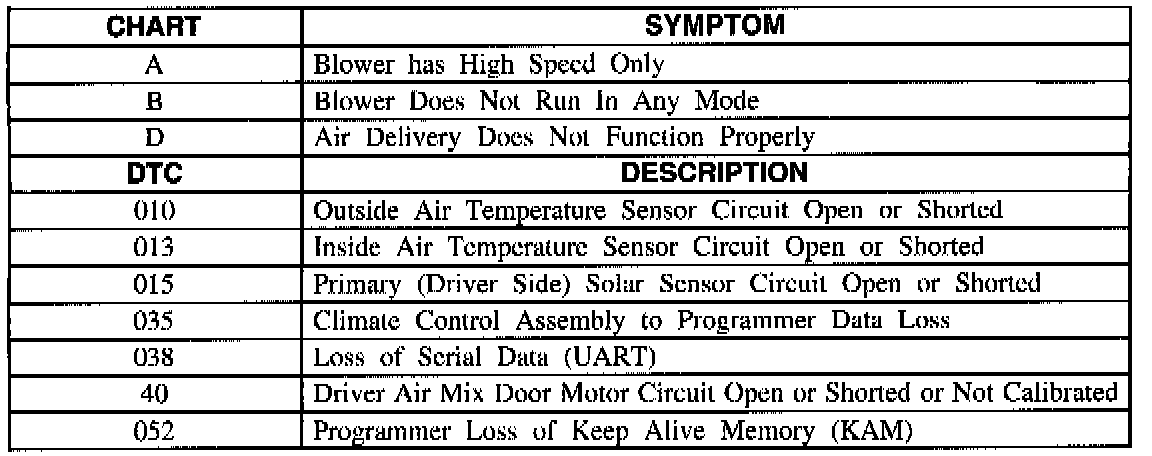

Diagnostic Trouble Code (DTC) Symptom Table With C68 Air Conditioning:

NOTE: If the A/C compressor does not operate Refer to A/C System / System Diagnosis / Procedures / Functional Test Testing and Inspection

Or to Powertrain Management / Computers and Control Systems / Procedures. Testing and Inspection
