Air Delivery And Temperature Controls - Schematic
File In Section: 8 - Chassis/Body ElectricalBulletin No.: 53-81-34
Date: October, 1995
SERVICE MANUAL UPDATE
Subject:
Sections 1C and 8A-68 - Revised Air Delivery and Temperature Controls Schematic
Models:
1995 Buick LeSabre, Park Avenue
1995 Oldsmobile Eight Eight, Ninety Eight
1995 Pontiac Bonneville
with Electronic Climate Control
This bulletin revises pages 1C-23, 1C-50 and page 8A-68-5 of the Service Manual.

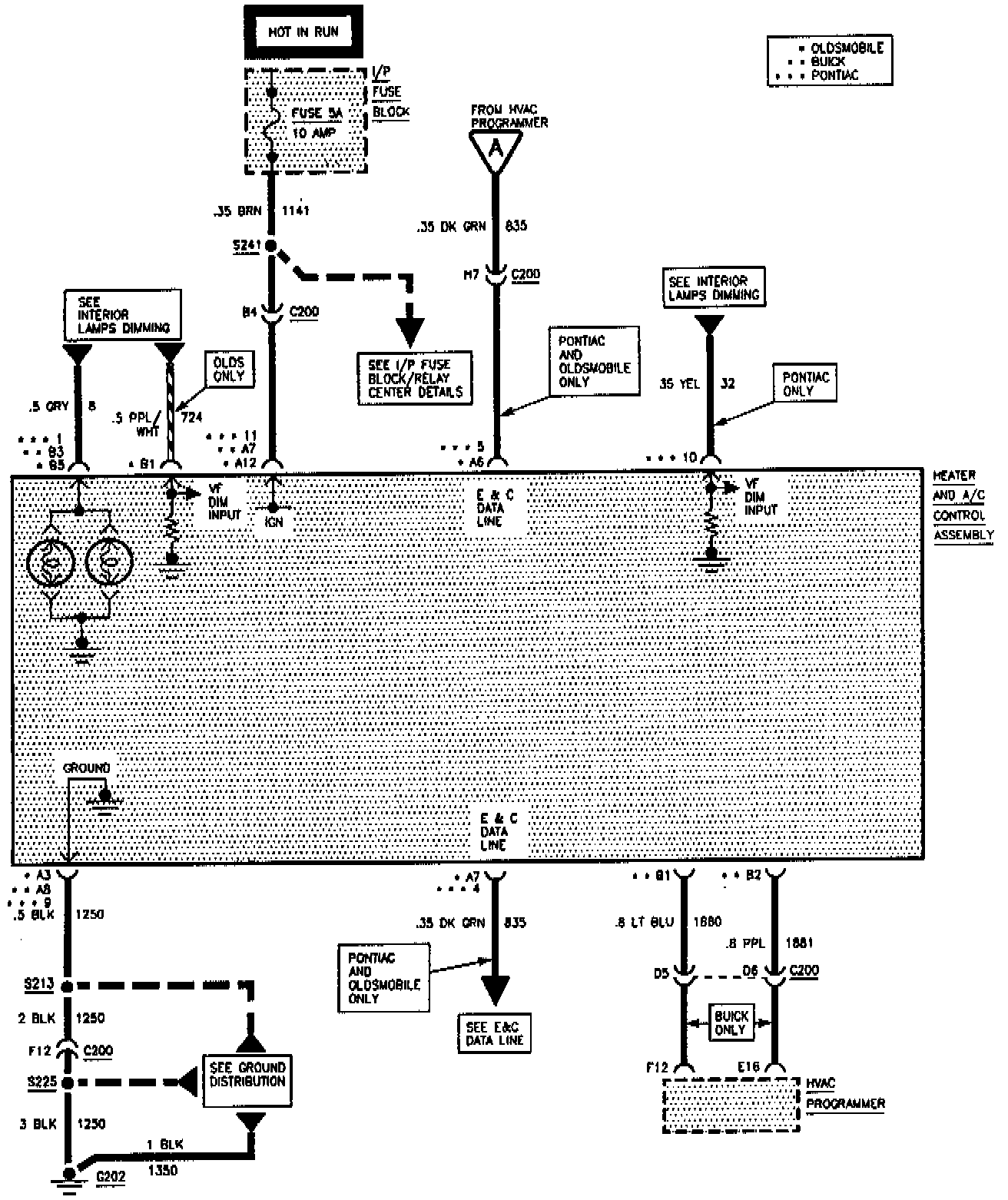

Please add the included schematic for the air delivery and temperature controls to these pages.
