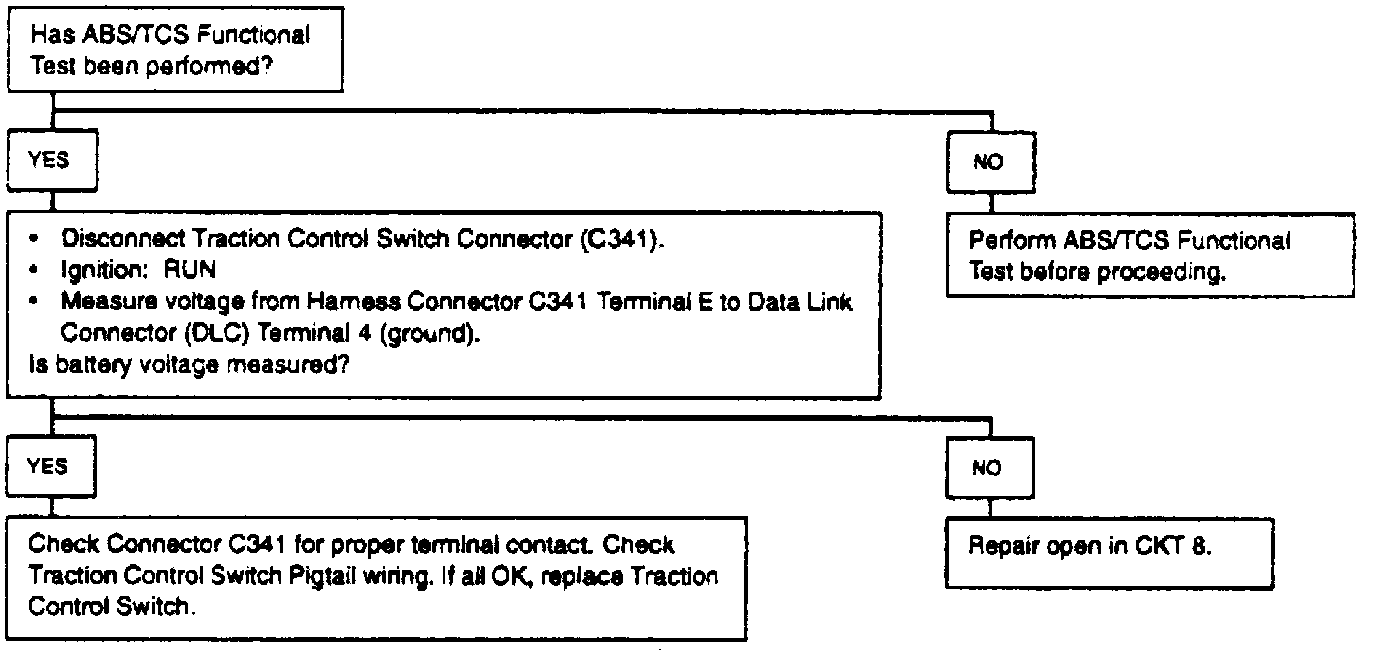

Test E Traction Control Switch Lamp Does Not Function Properly

Test E: Traction Control Switch Lamp Does Not Function Properly.:




Traction Control Switch Lamp Does Not Operate Properly:

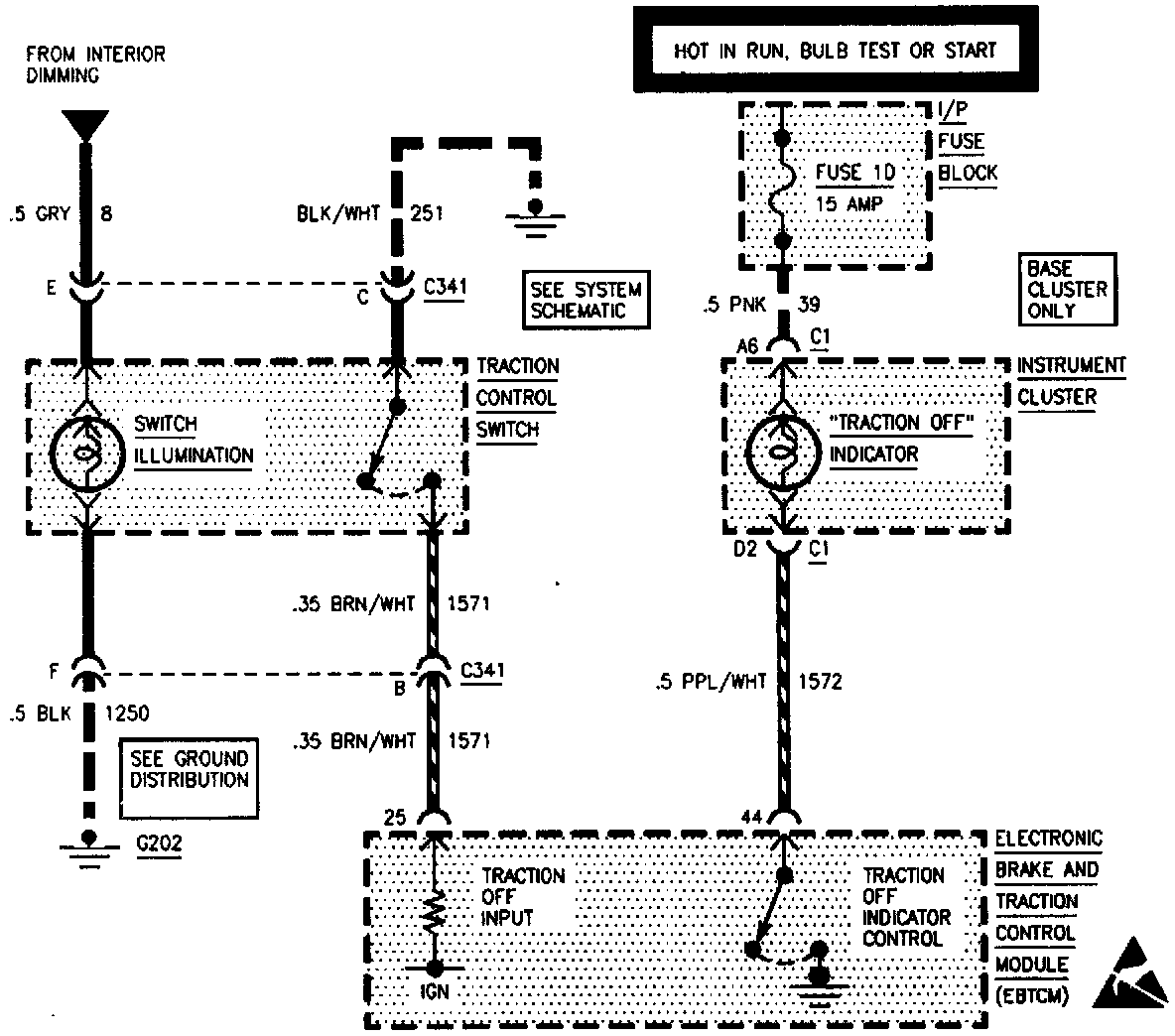

CIRCUIT OPERATION
The traction control switch illumination bulb is on whenever the key is in the RUN, BULB TEST, or START position. It is not serviced separately from the traction control switch. The traction control switch illumination is not illuminated when there is an ABS or TCS system failure.
