Pontiac
>>
1993
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

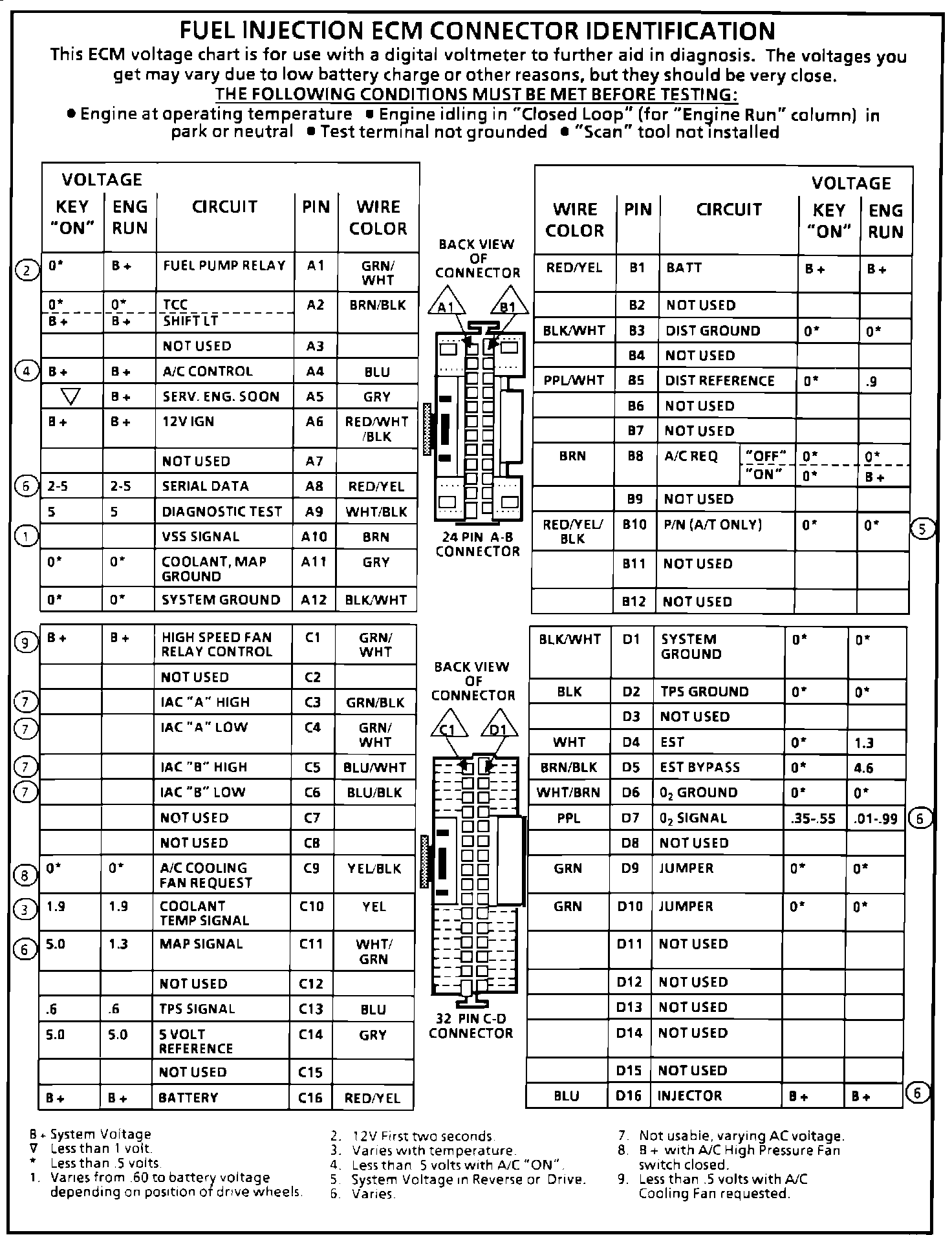

ECM Connector Pin Voltage Chart:

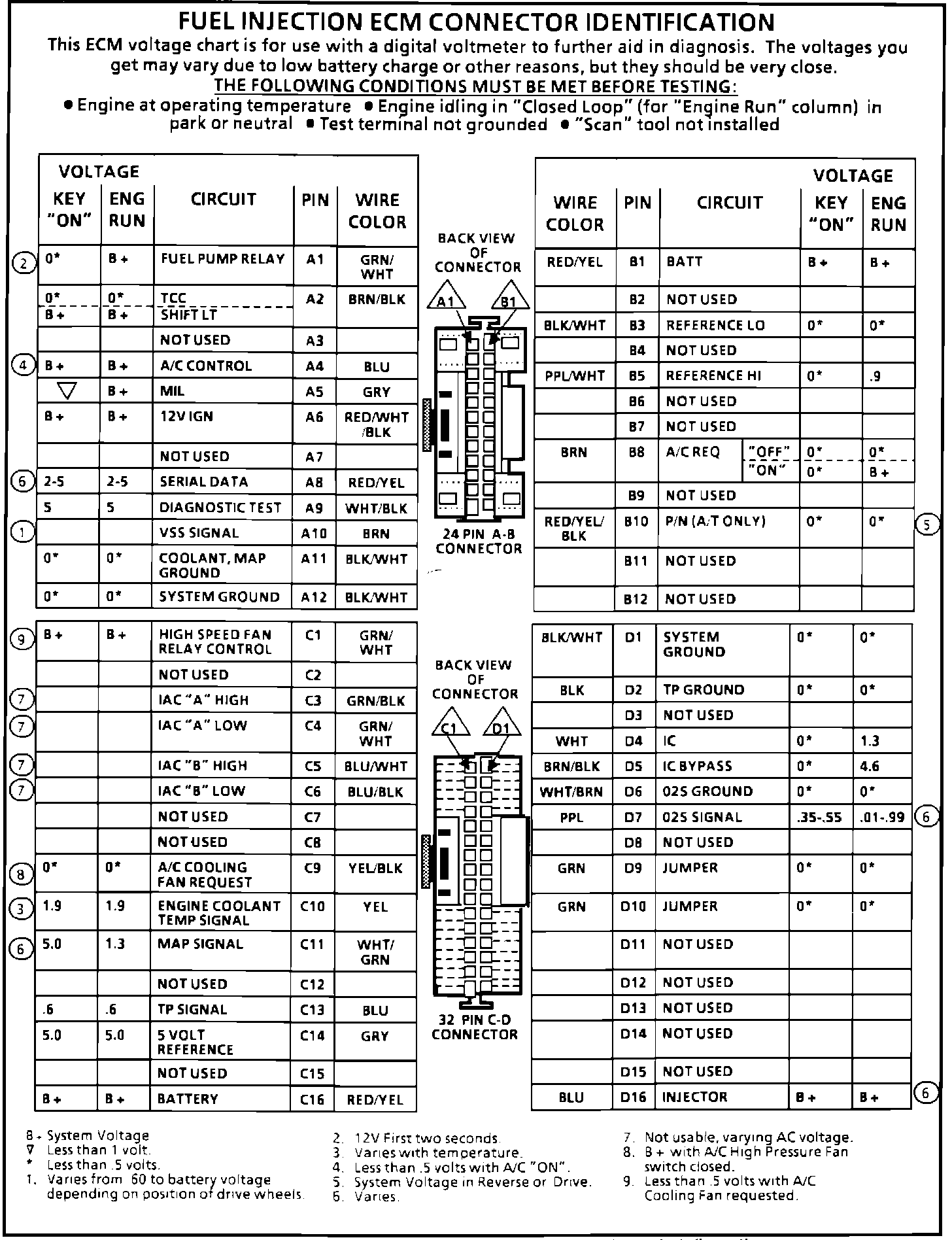

ECM Connector Voltage Chart:
