Home >> Pontiac >> 1993 >> Firebird V6-204 3.4L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Engine Specifications

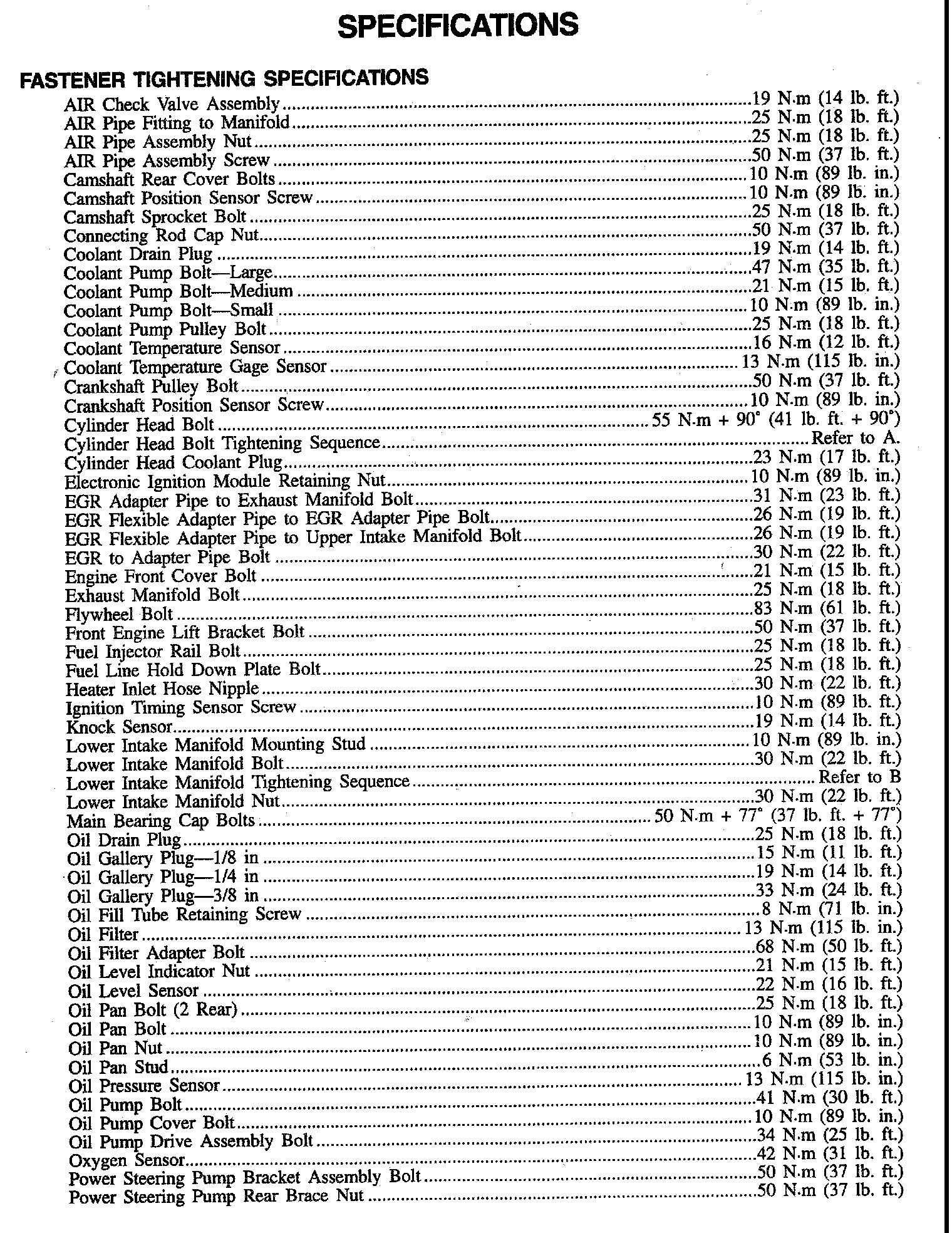

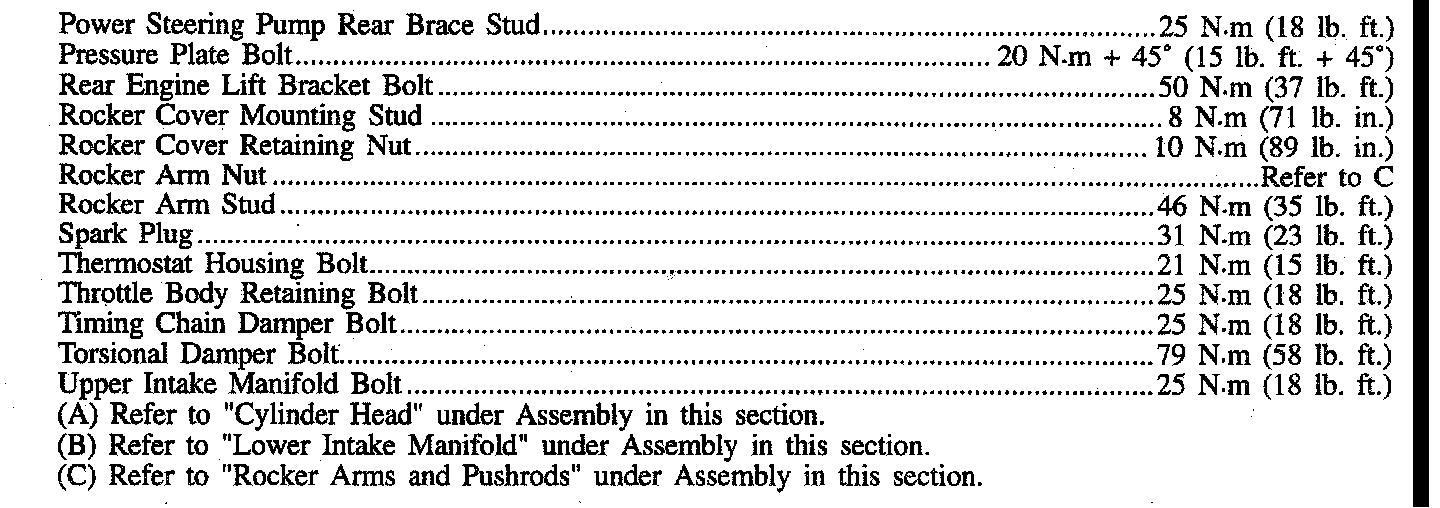

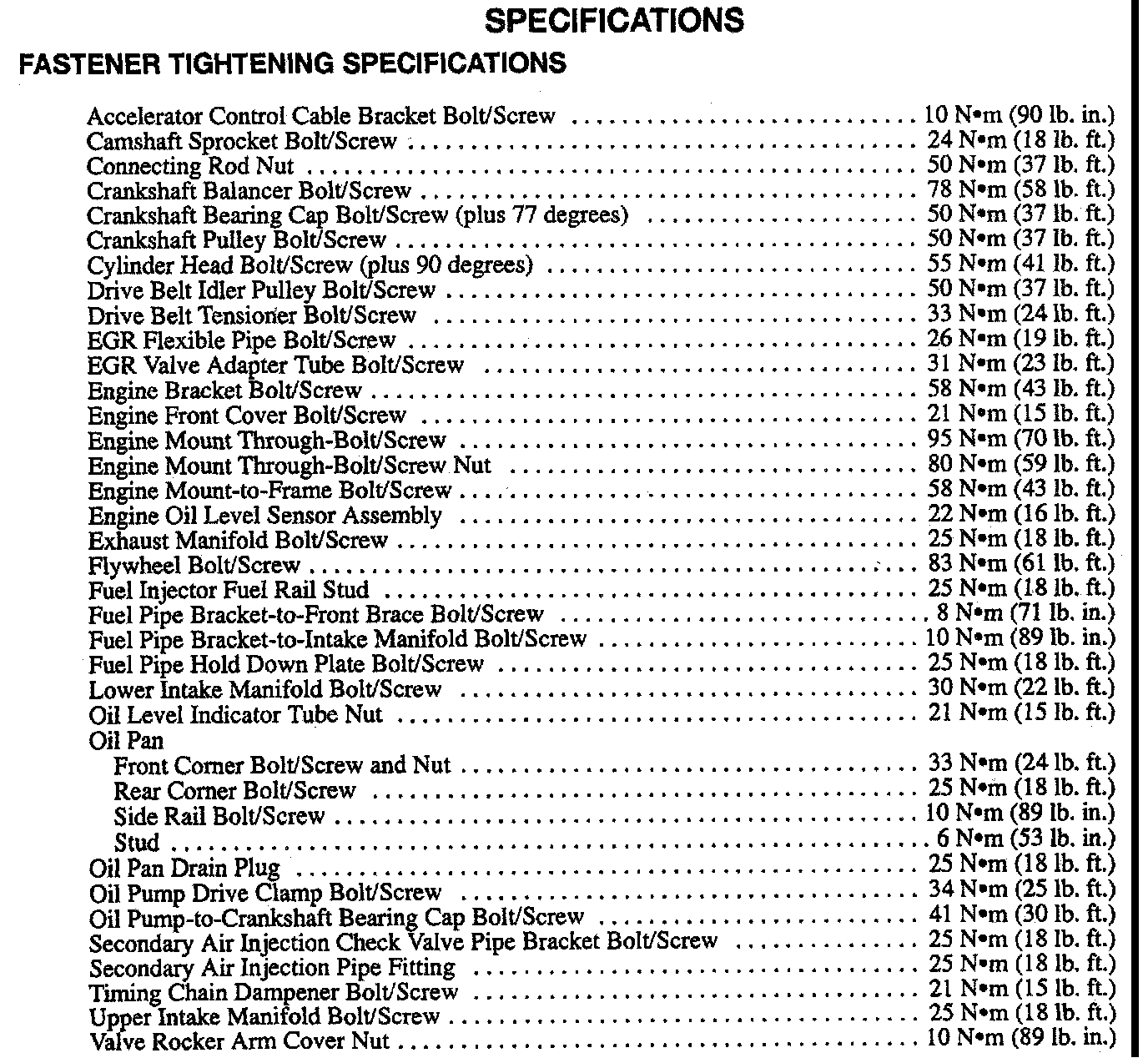

Engine Specifications

Lower Intake Manifold Tightening Sequence:





Cylinder Head Tightening Sequence:
