Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1993
>>
Firebird V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor Controls
Compressor Controls

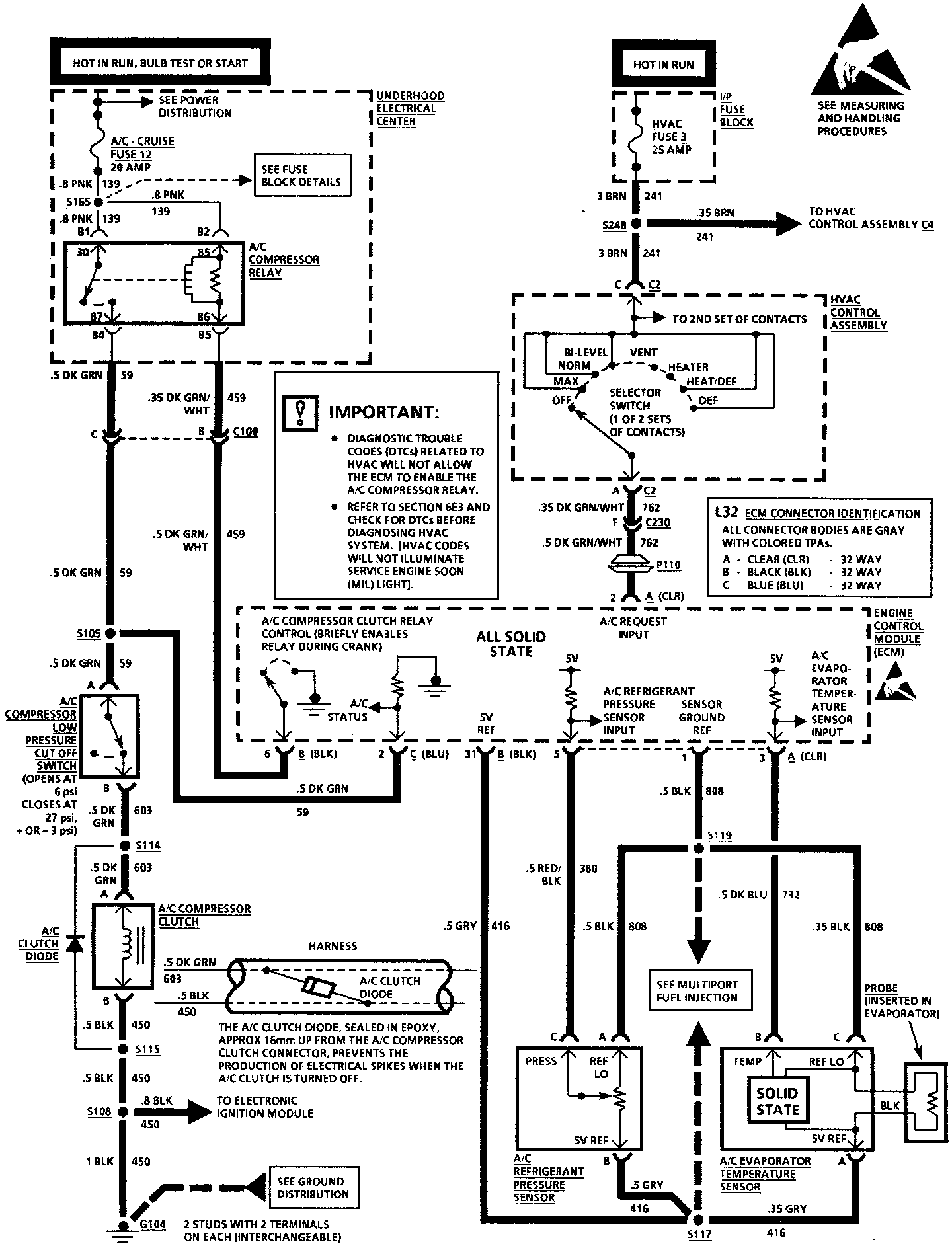

HVAC Compressor Control: V6 VIN S:
