Pontiac
>>
1993
>>
Firebird V6-204 3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Connector A
Connector A

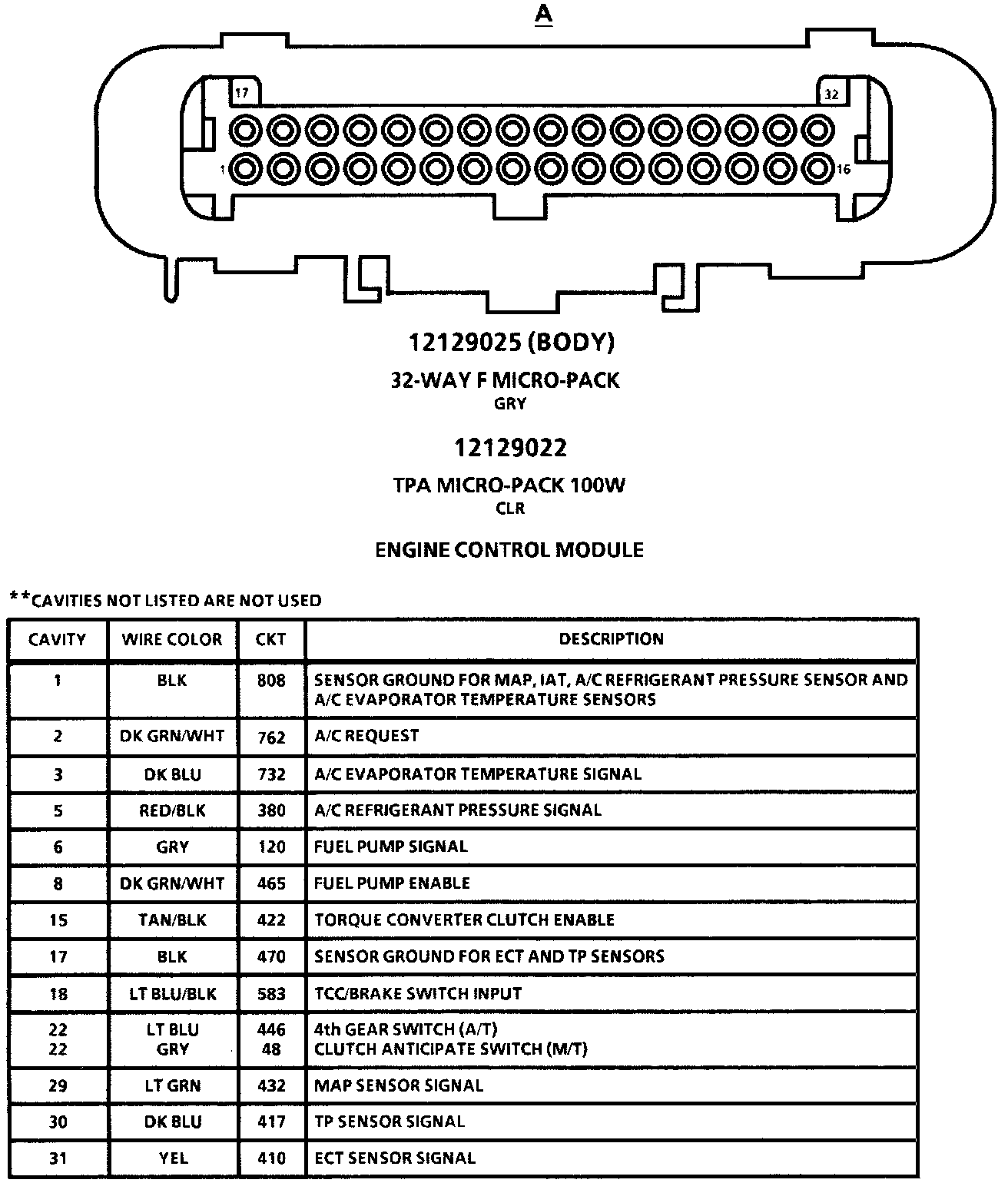

Sequential Fuel Injection V6 VIN S: Engine Control Module, Connector A:
