Home
>>
Pontiac
>>
1991
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Test F: Seat Belt Switch Test
Test F: Seat Belt Switch Test

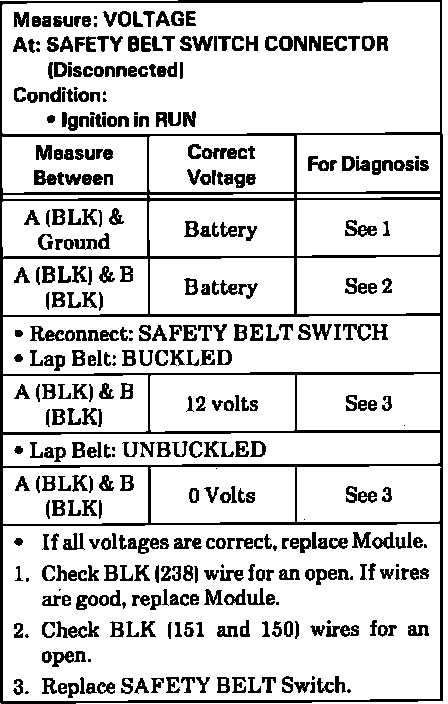

Fig. 25 Test F, Safety Belt Switch Test. 1991-92 LeMans:
