Home >> Pontiac >> 1991 >> Lemans FWD L4-98 1.6L >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Reminder Lamp >> Testing and Inspection >> Test B Table 1, Warning Indicator Test

Test B Table 1, Warning Indicator Test

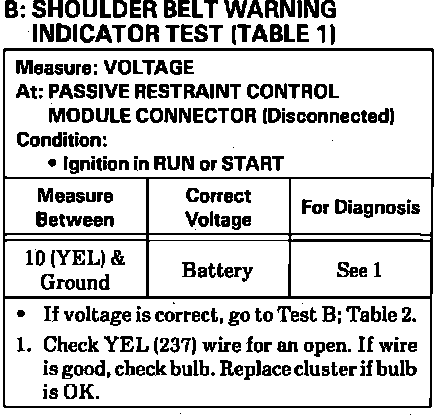

Fig. 4 Test B Table 1, Warning Indicator Test:
