Home >> Pontiac >> 1991 >> Lemans FWD L4-98 1.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 8, 9, 19 and 20

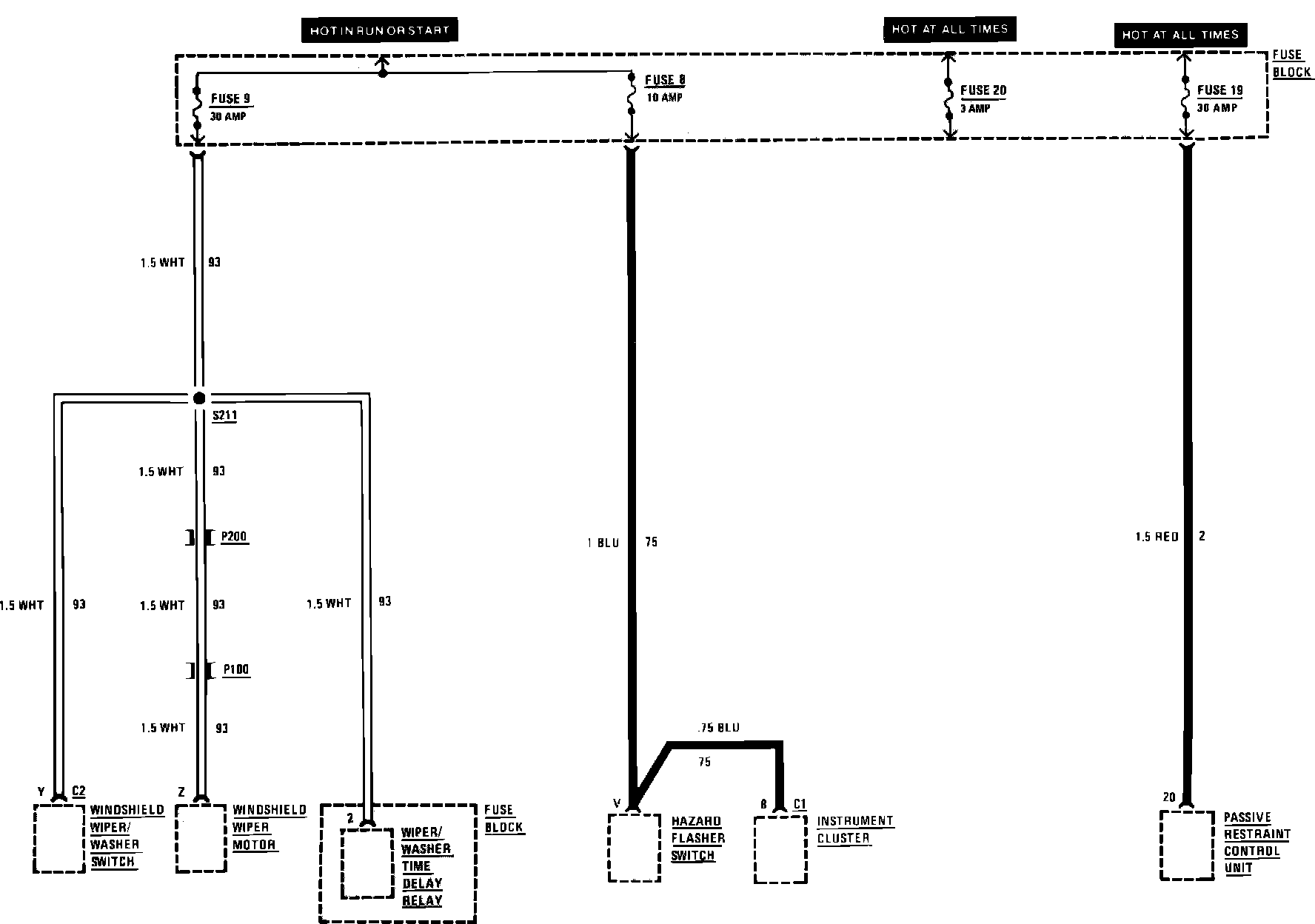

Fuses 8, 9, 19 and 20

Fuses 8, 9, 19 And 20:
