Pontiac
>>
1991
>>
Lemans FWD L4-98 1.6L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G400
G400

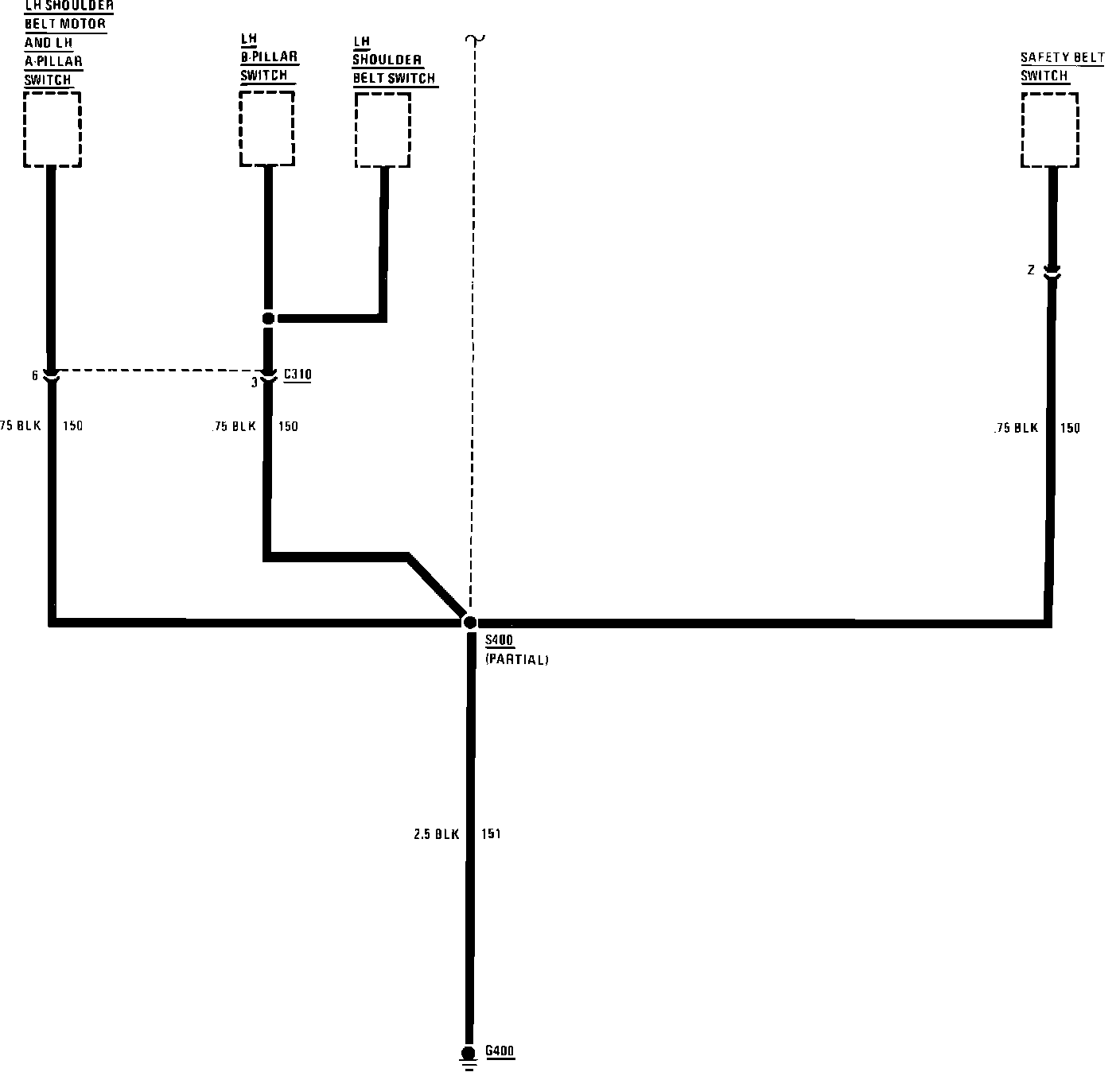

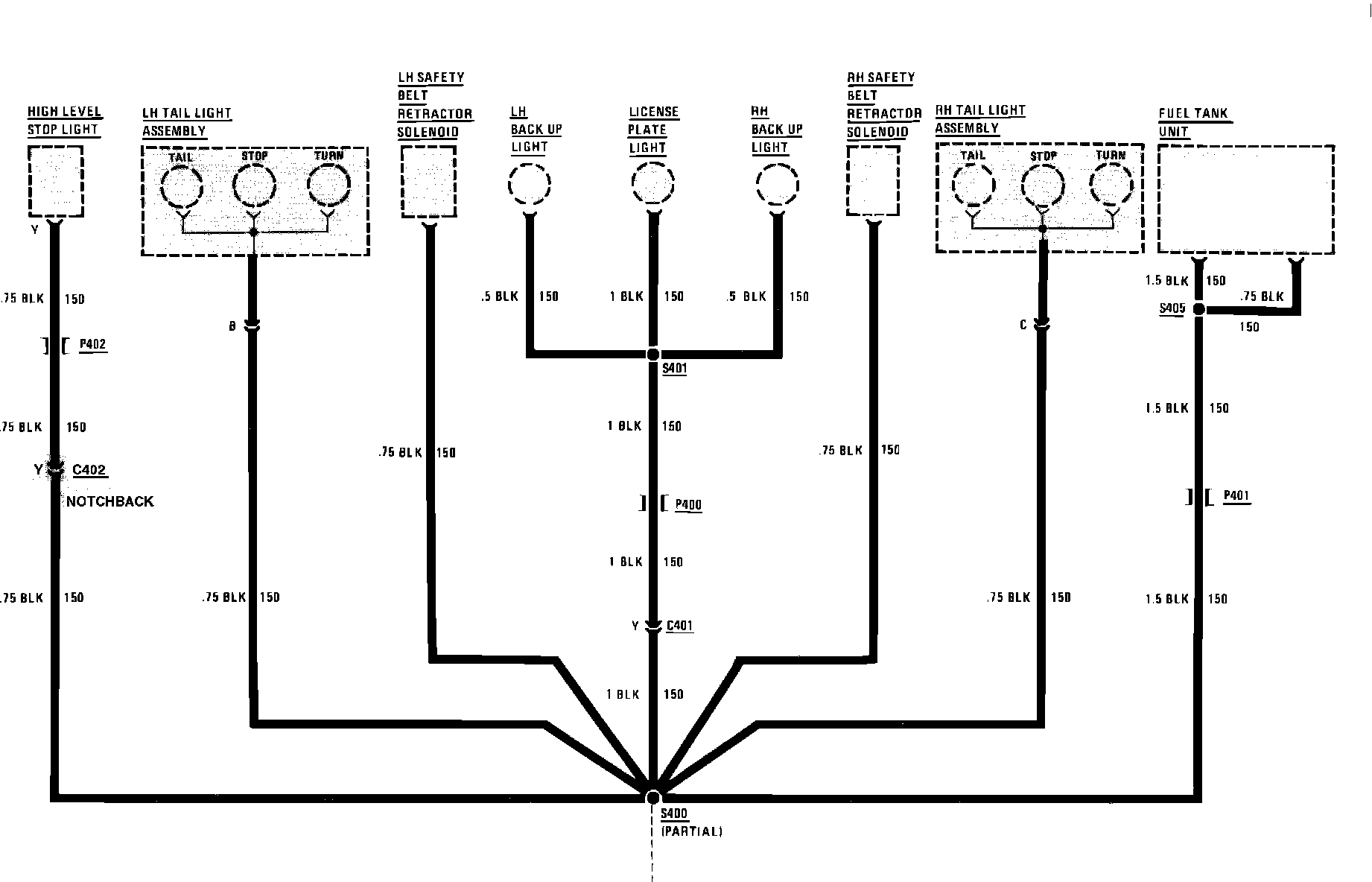

Ground G400:
Ground G400:
