Oil Pan: Service and Repair

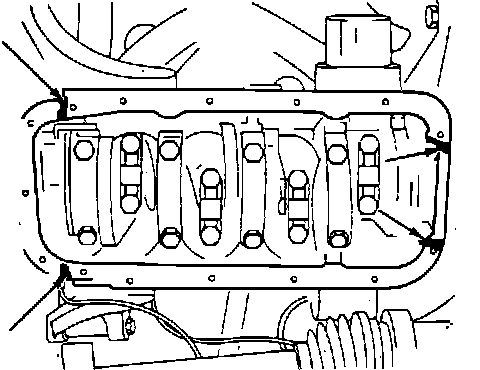

Fig. 10 Oil Pan Sealant Application:

1. Disconnect battery ground cable.
2. Raise and support vehicle.
3. On 1990-92 models, remove right splash shield.
4. On all models, drain engine oil, then disconnect exhaust pipe from exhaust manifold.
5. On 1990-92 models equipped with manual transaxle, remove clutch cover plate attaching bolts, then remove clutch cover plate.
6. On all models, remove oil pan attaching bolts and the oil pan.
7. Reverse procedure to install. Apply suitable sealant to bolt threads and oil pan seams, Fig. 10.
