Installation

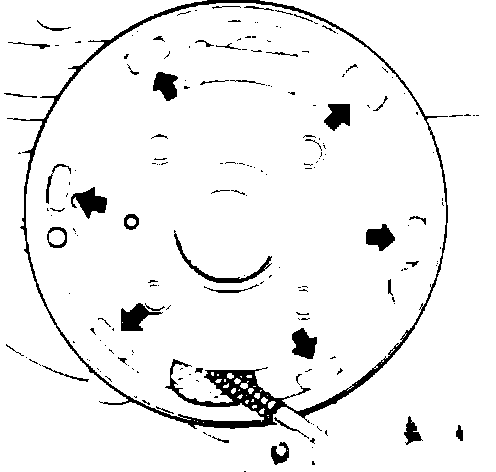

Fig. 2 Backing Plate Lubrication Points:

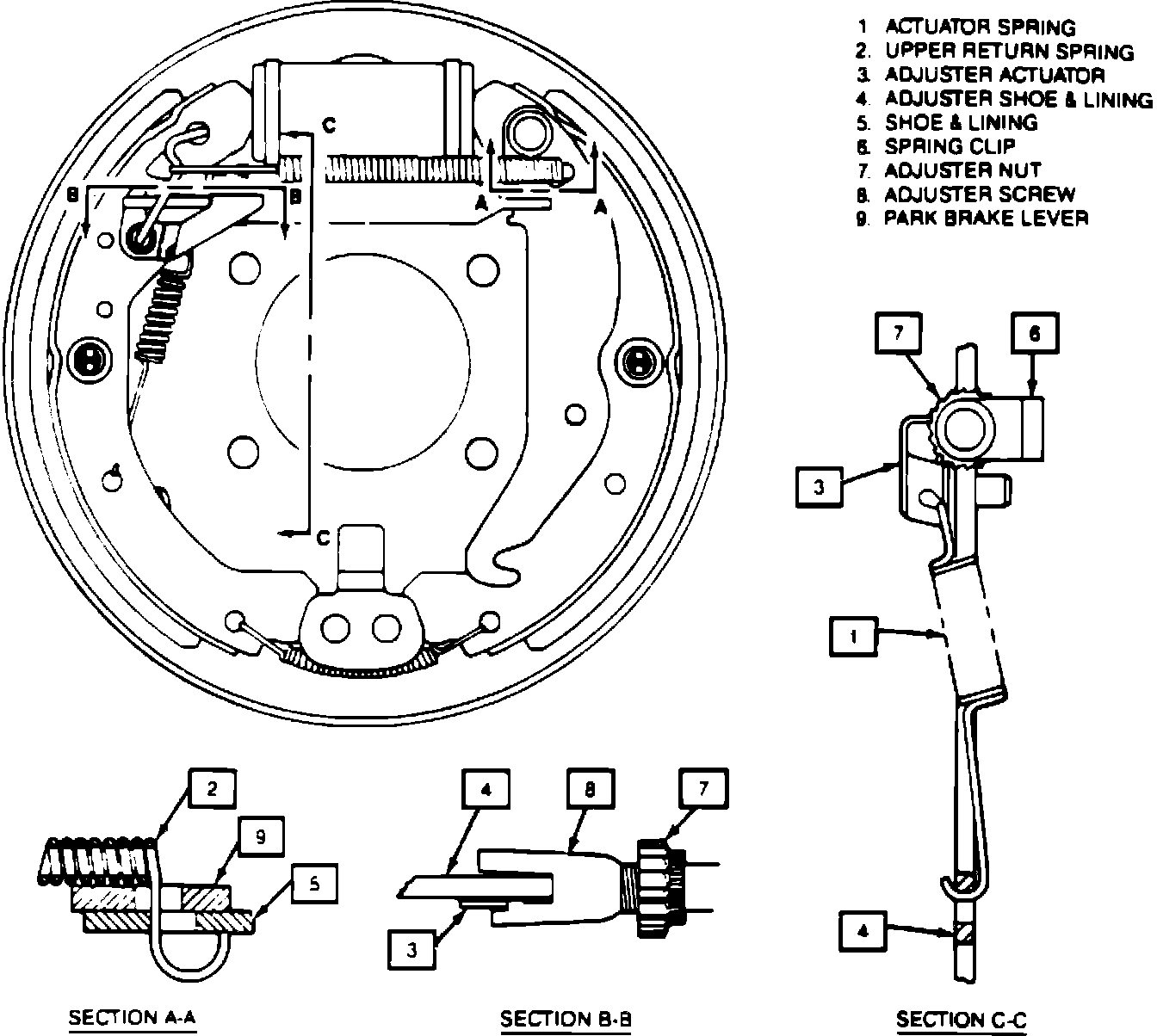

Fig. 3 Cross-sectional View Of Drum Brake Assembly:

1. Lubricate backing plate at points shown, Fig. 2.
2. Connect parking brake lever to parking brake cable.
3. Ensure parking brake cable is properly routed, then install shoes and lining to backing plate with hold-down spring, washer and pin.
4. Position adjuster shoe and lining and lower return spring against backing plate. Ensure spring is properly positioned under anchor plate.
5. Install hold-down spring, washer and pin.
6. Turn adjuster in to stop, then install adjuster assembly, Fig. 3. Ensure spring clip is positioned toward backing plate.
7. Install adjuster actuator onto pin and actuator spring.
8. Install spring connecting link to pin and press into brake hole.
9. Connect upper spring from connecting link to brake shoe.
10. Install brake drum and detent screw, then the wheel and tire assembly.
11. Adjust service and parking brakes as necessary.
