Home >> Pontiac >> 1991 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G103 and G104 >> With Composite Headlight

With Composite Headlight

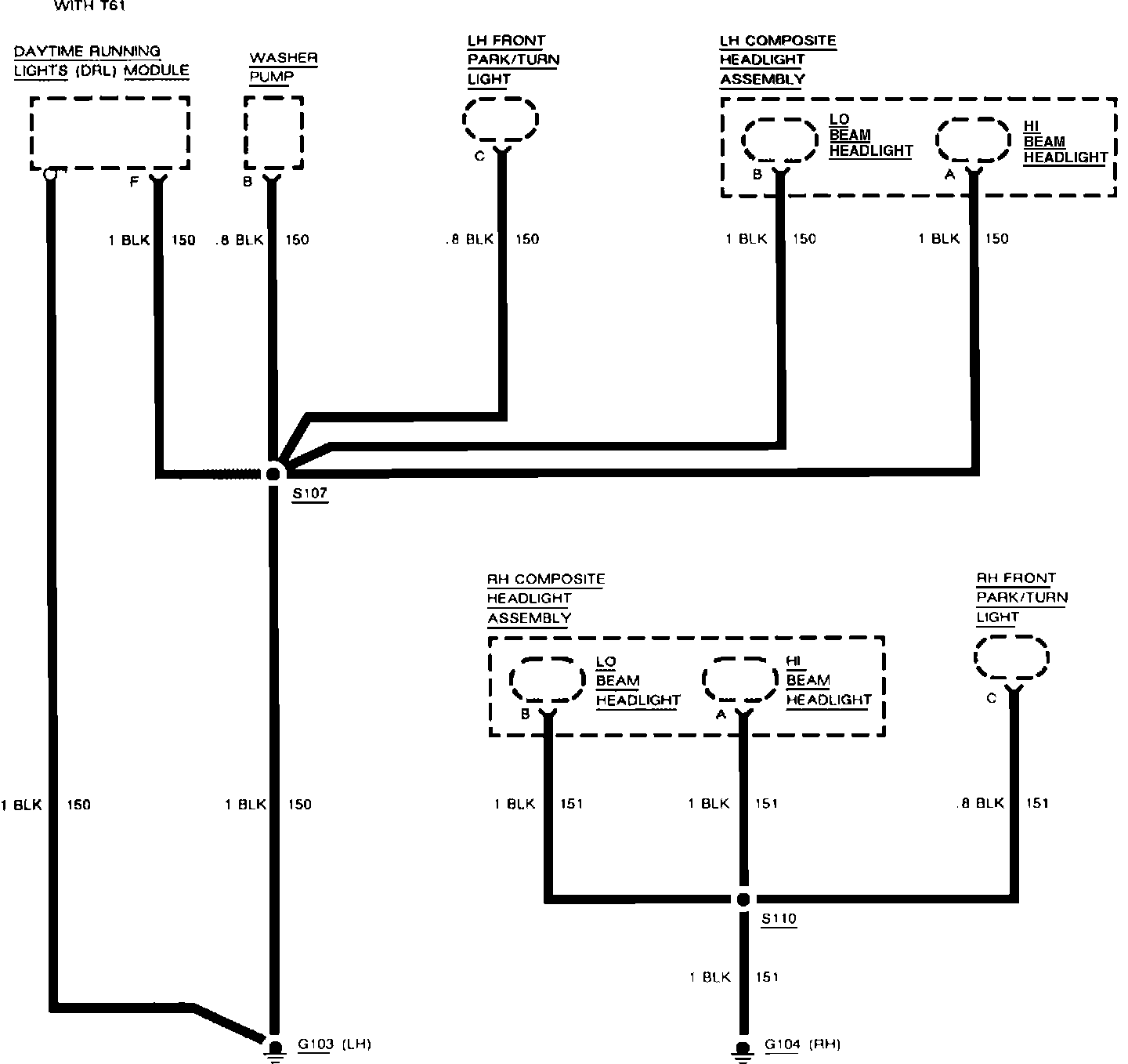

Ground Distribution: G103 And G104:
