Pontiac
>>
1991
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

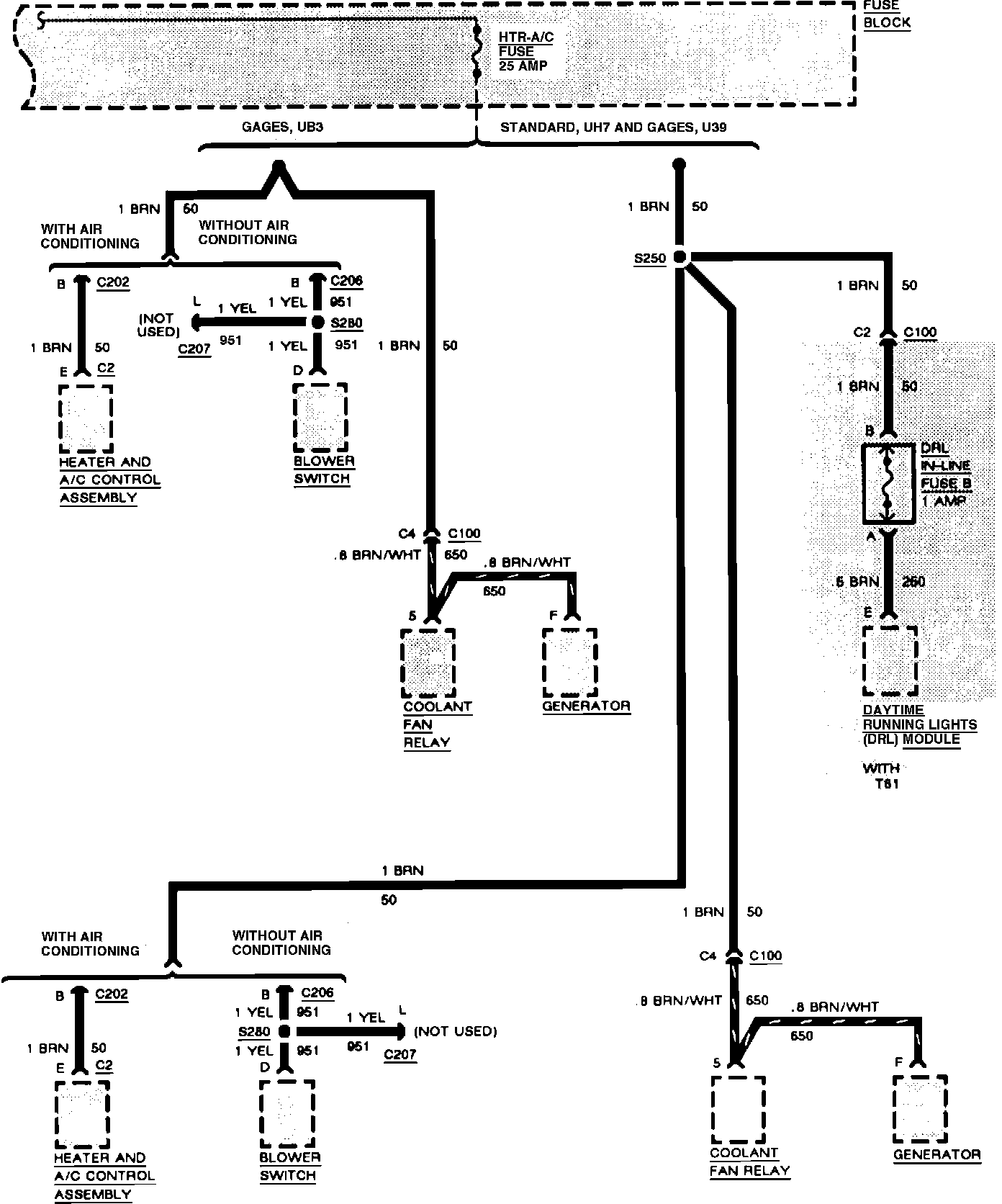

HTR-A/C Fuse
HTR-A/C Fuse

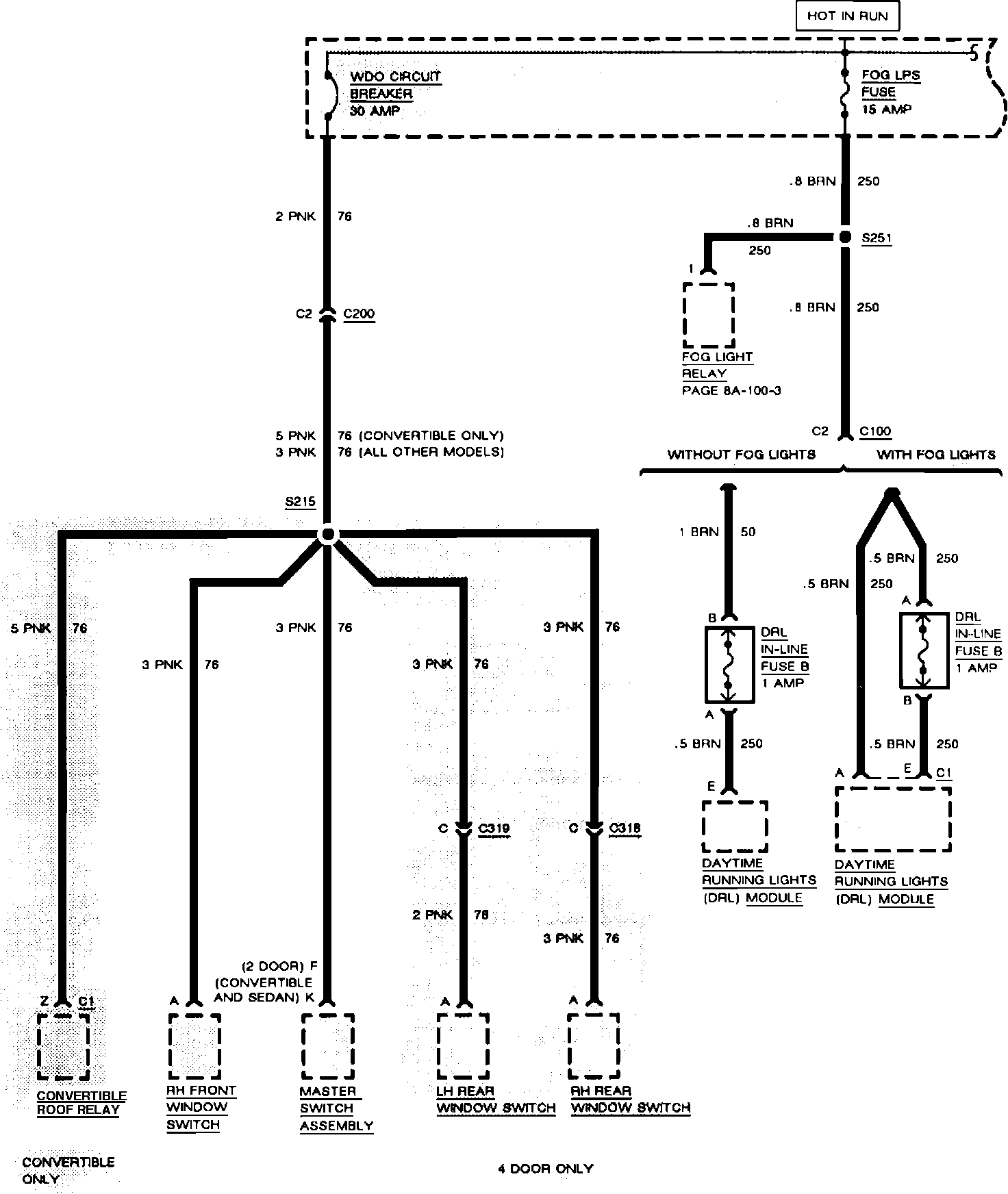

Fuse Block Details: WDO Circuit Breaker, Fog LPS Fuse And HTR-A/C Fuse:
Fuse Block Details: WDO Circuit Breaker, Fog LPS Fuse And HTR-A/C Fuse:
