Home
>>
Pontiac
>>
1991
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Ctsy/CIG Fuse
Ctsy/CIG Fuse

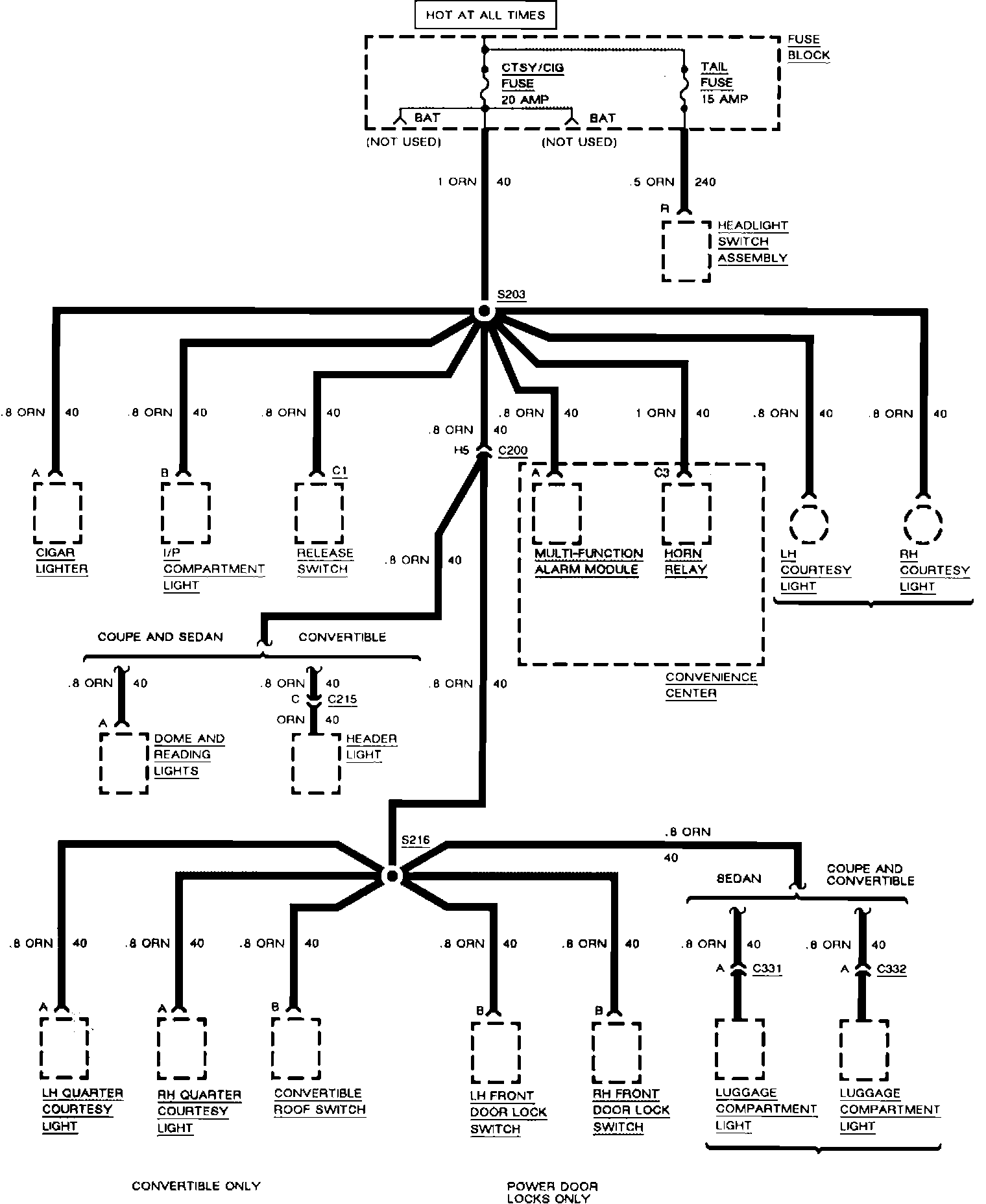

Fuse Block Details: CTSY/CIG Fuse And Tail Fuse:
