Pontiac
>>
1991
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

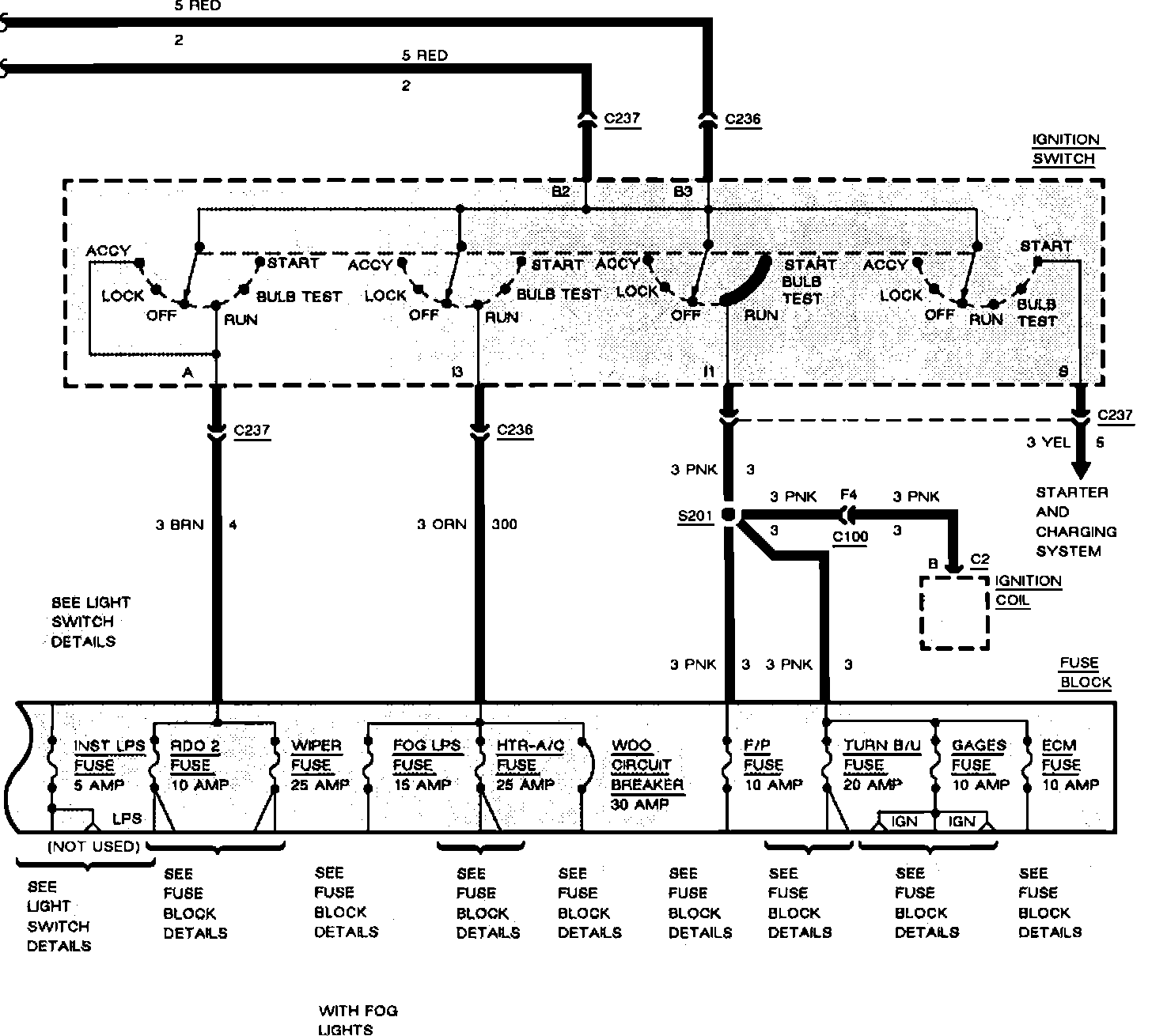

Power Distribution Wiring Circuit
Power Distribution Wiring Circuit

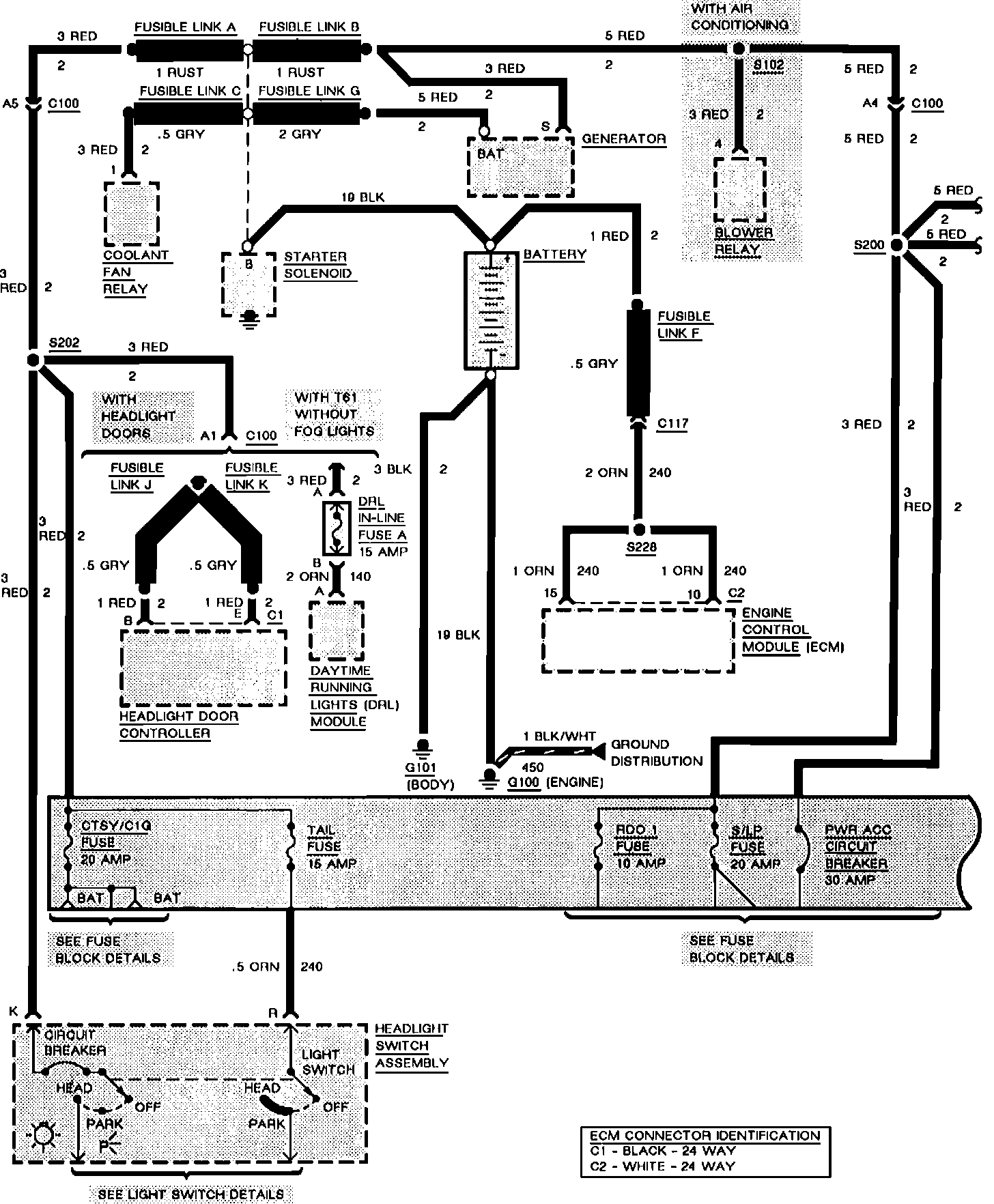

Power Distribution:
Power Distribution:
