Pontiac
>>
1991
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
System Diagram

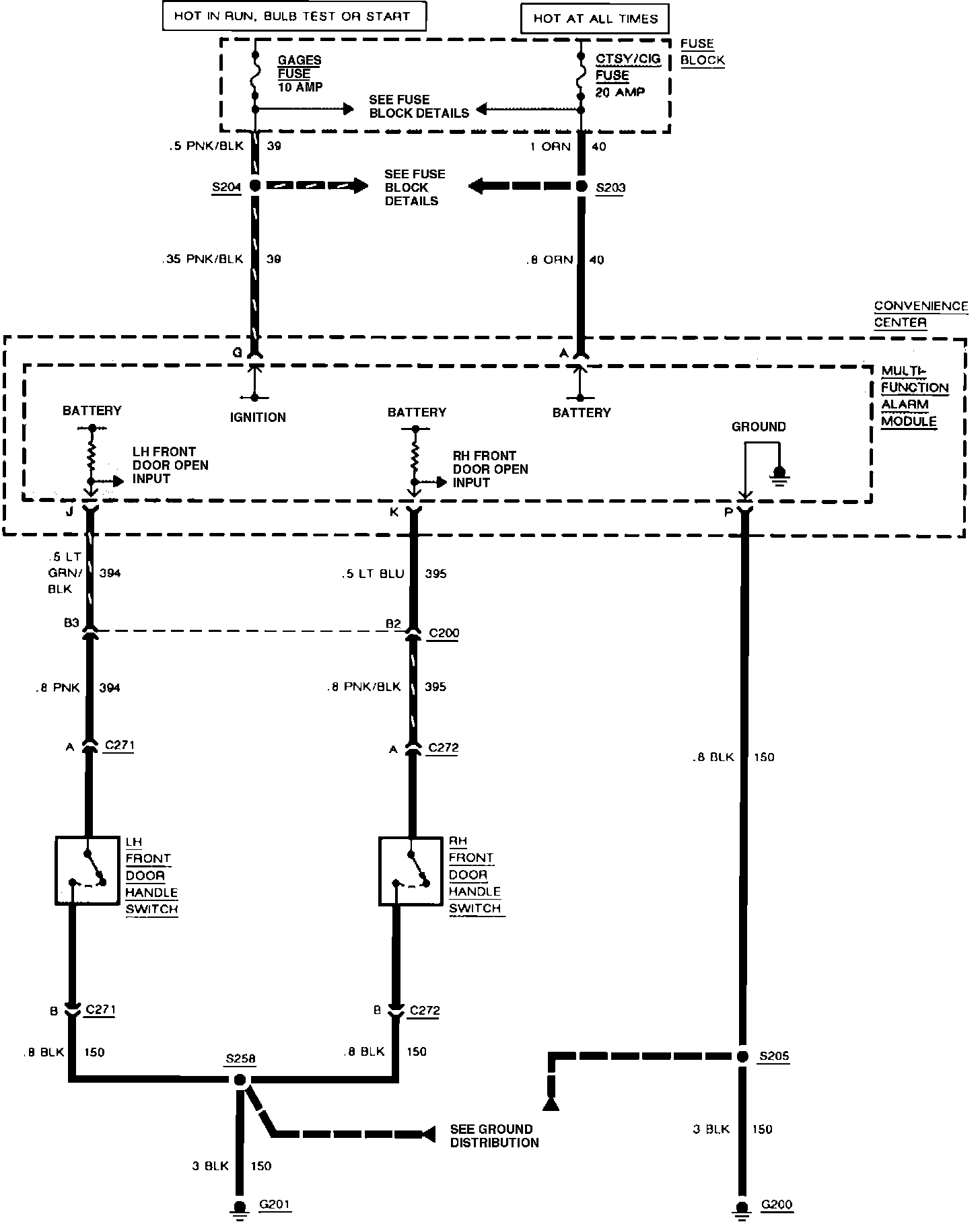

Interior Lights: Illuminated Entry:
