Transaxle Bracket

TRANSAXLE BRACKET 3T40 (125C) AUTOMATIC TRANSAXLE

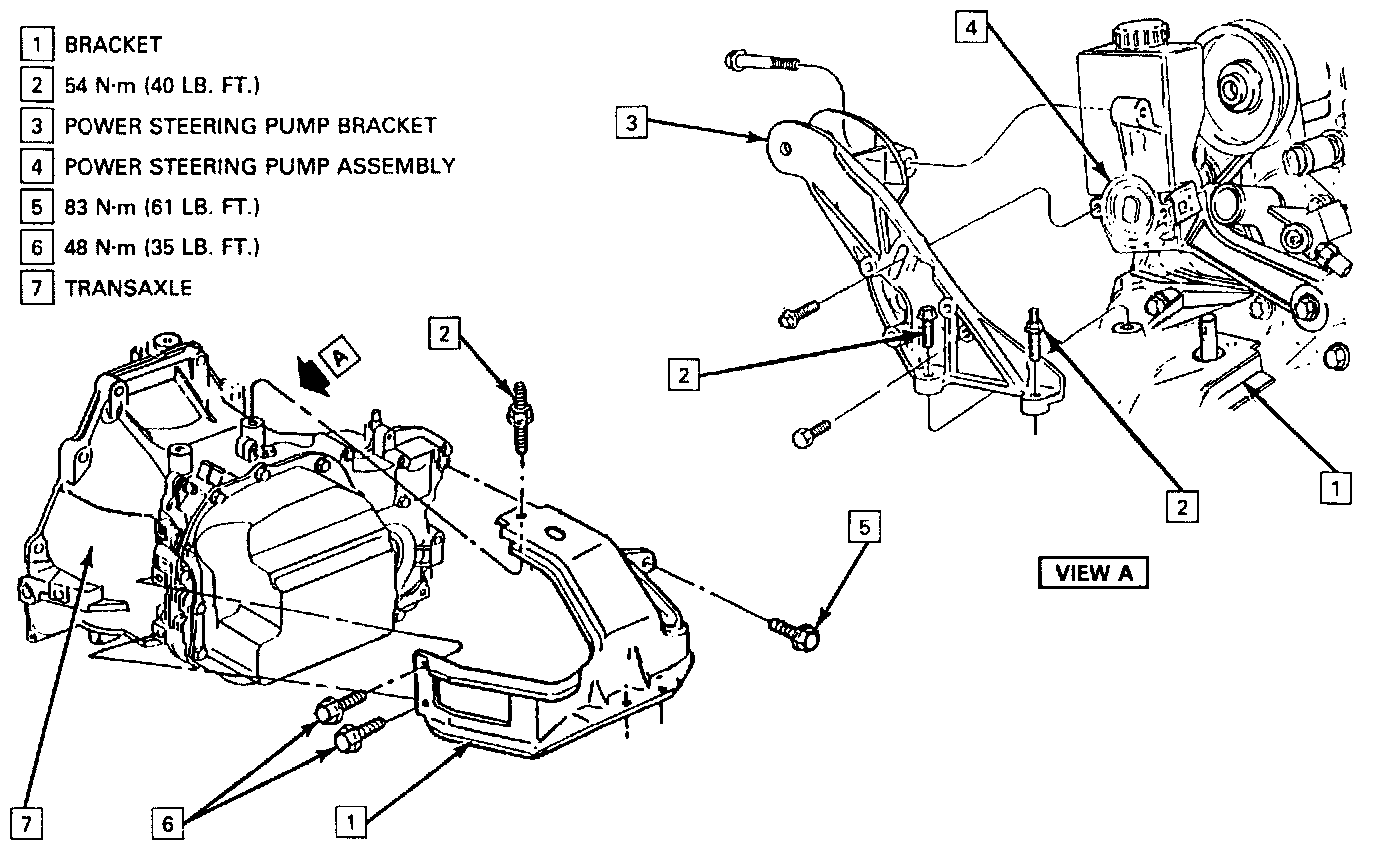

Transaxle Bracket - 2.3L Engine/Hydra-Matic 3T40:

TOOLS REQUIRED:
^ J 28467-A Engine Support Fixture
^ J 36462 Engine Support Adapter Leg

REMOVE OR DISCONNECT
1. Air cleaner.
2. Negative battery cable.
3. Install J 28467-A and J 36462.
4. Left-hand torque strut bracket from power steering pump.
5. Raise vehicle and suitably support.
6. Left front tire and wheel.
7. Left lower engine splash shield.

CAUTION: Failure to disconnect the intermediate shaft from the rack and pinion stub shaft can result in damage to the steering gear and/or intermediate shaft. This damage may cause lass of steering control which could result in personal injury.

8. Pinch bolt at intermediate steering shaft.
9. Support right and left sides of frame with jackstands.
10. Nuts attaching bracket to mount.
11. Left frame to body bolts.
12. Adjust jackstand to lower left side of frame.
13. Bolts holding engine wiring harness to transaxle case.
14. Transaxle oil cooler lines at transaxle.
15. Bolts attaching bracket to transaxle.
16. Bracket.

INSTALL OR CONNECT
1. Bracket.
2. Bolts attaching bracket to transaxle.

TIGHTEN
^ Rear bolt to 83 Nm (61 lb. ft.).
^ Front bolts to 48 Nm (35 lb. ft.).

3. Transaxle oil cooler lines at transaxle.
4. Bolts holding engine wiring harness to transaxle case.
5. Raise left side of frame and install new frame to body bolts.
6. Nuts attaching bracket to mount.

TIGHTEN
^ Nuts to 48 Nm (35 lb. ft.).

CAUTION: When installing the intermediate shaft make sure the shaft is seated prior to pinch bolt installation. If the pinch bolt is inserted into the coupling before shaft Installation, the two mating shafts may disengage.

7. Pinch bolt at intermediate steering shaft.
8. Splash shield.
9. Tire and wheel assembly.
10. Lower vehicle.
11. Left-hand torque strut bracket to power steering bracket.

TIGHTEN
^ Stud to top of transaxle bracket to 54 Nm (40 lb. ft.).

12. Remove J 28467-A and J 36462.
13. Negative battery cable.
14. Air cleaner.
