Home >> Pontiac >> 1991 >> Grand Prix V6-191 3.1L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Diagnostic Charts/Tests >> Air Delivery & Temperature Controls >> B: Heater & A/C Control Assembly Solenoid Control Test

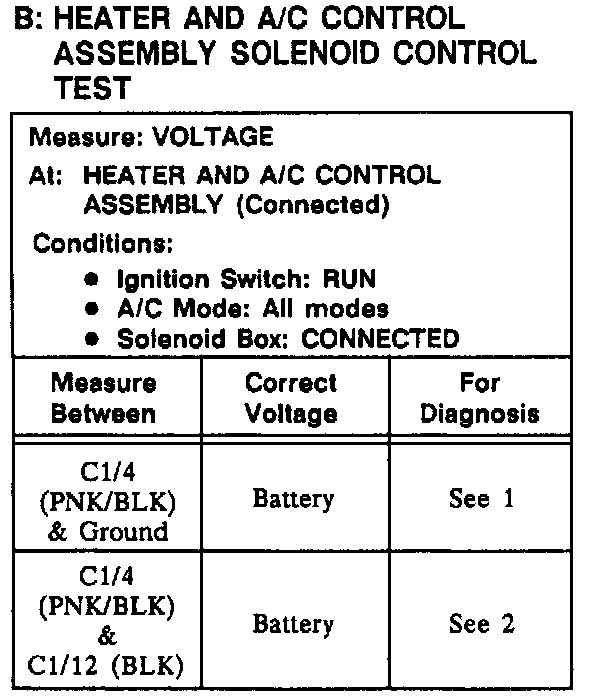

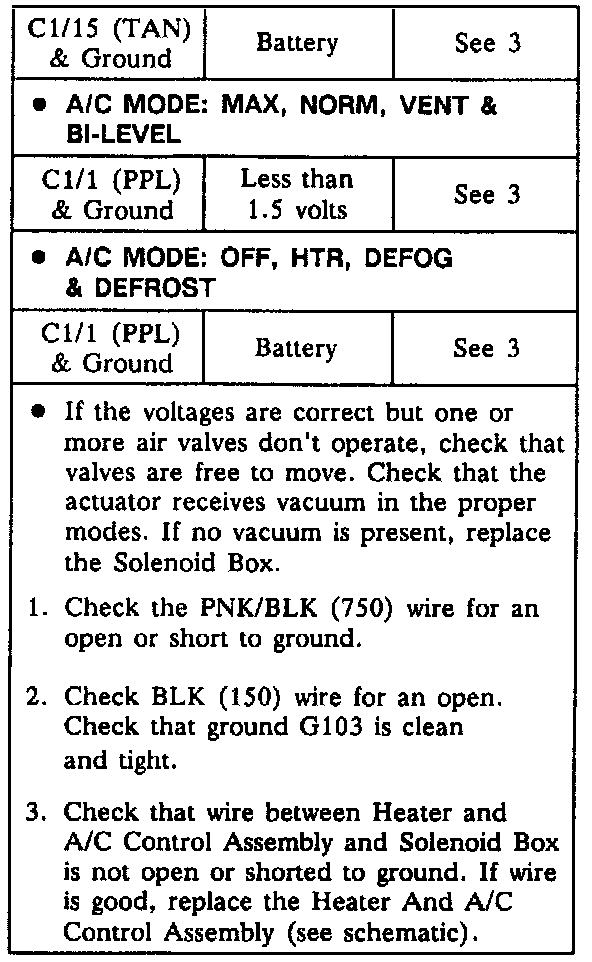

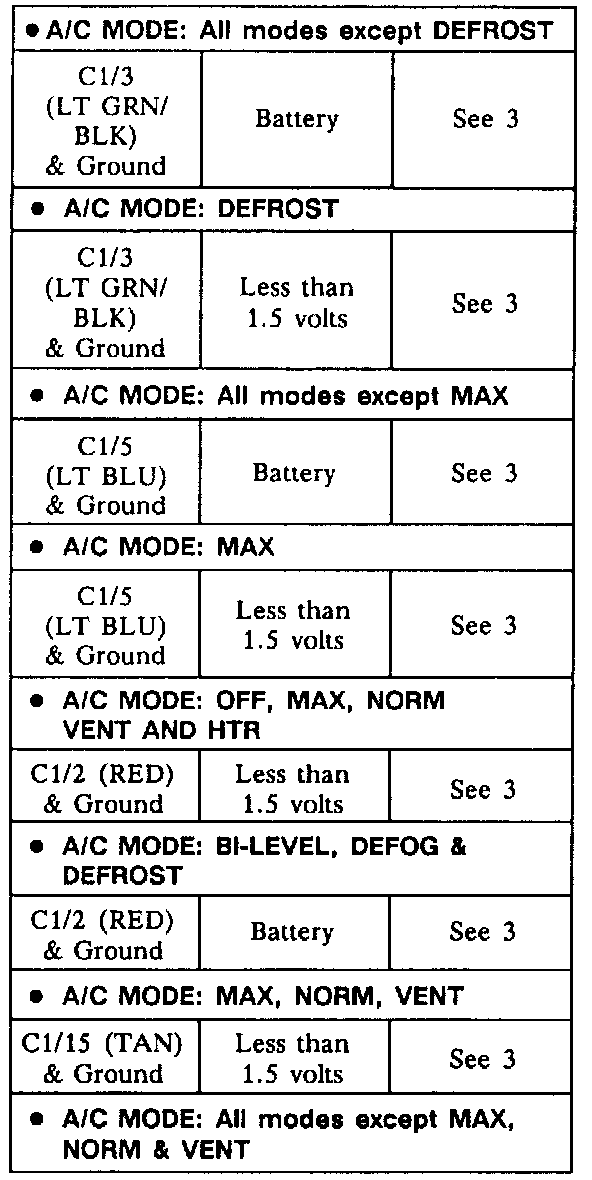

B: Heater & A/C Control Assembly Solenoid Control Test
