Pontiac
>>
1991
>>
Grand Prix V6-191 3.1L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Cruise Control Servo
>>
Testing and Inspection
Cruise Control Servo: Testing and Inspection

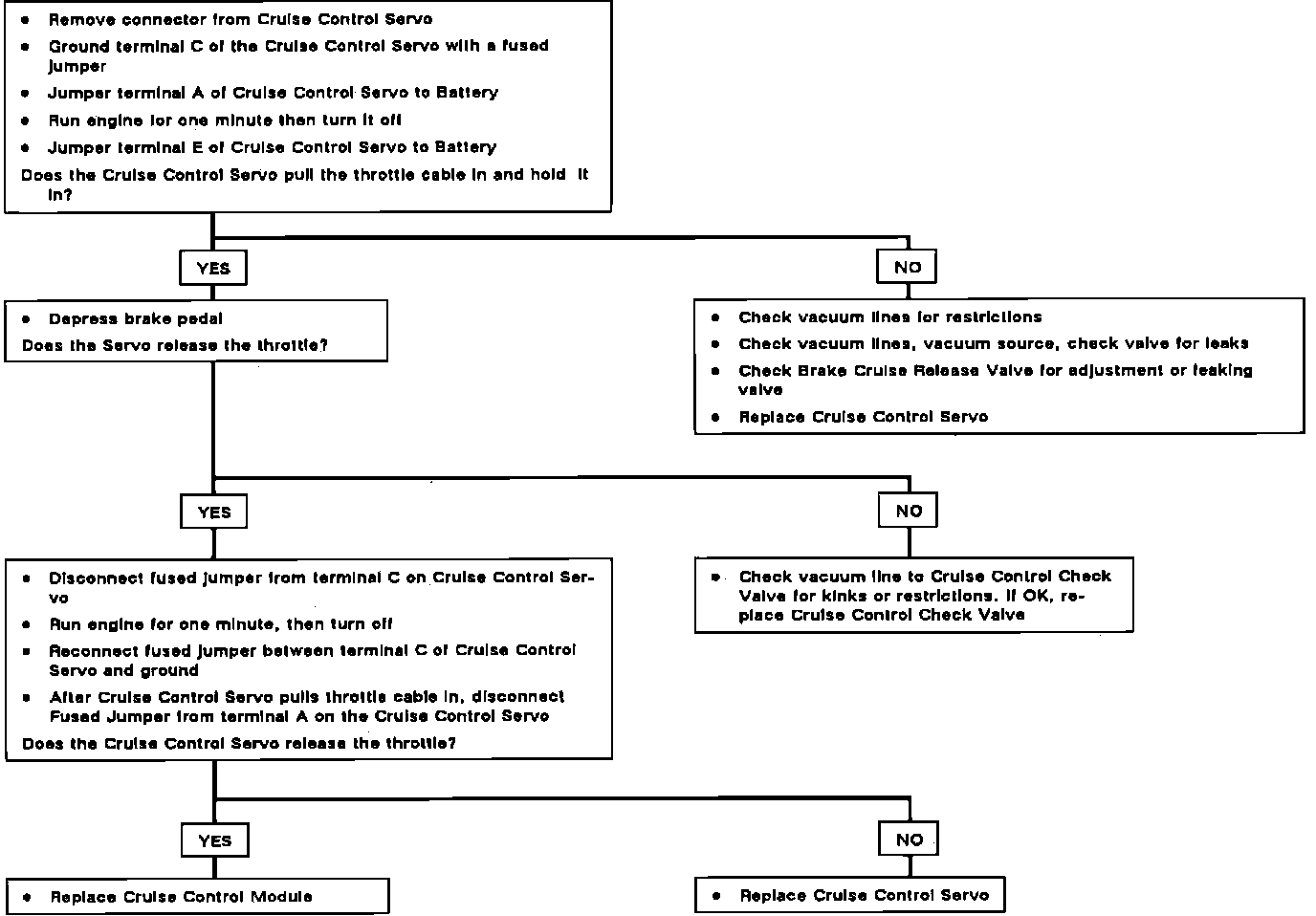

Fig. 45 Cruise Control System Test ``O,'' Servo Actuation Test:
