Pontiac
>>
1991
>>
Grand AM L4-151 2.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G201
>>
Le Models
Le Models

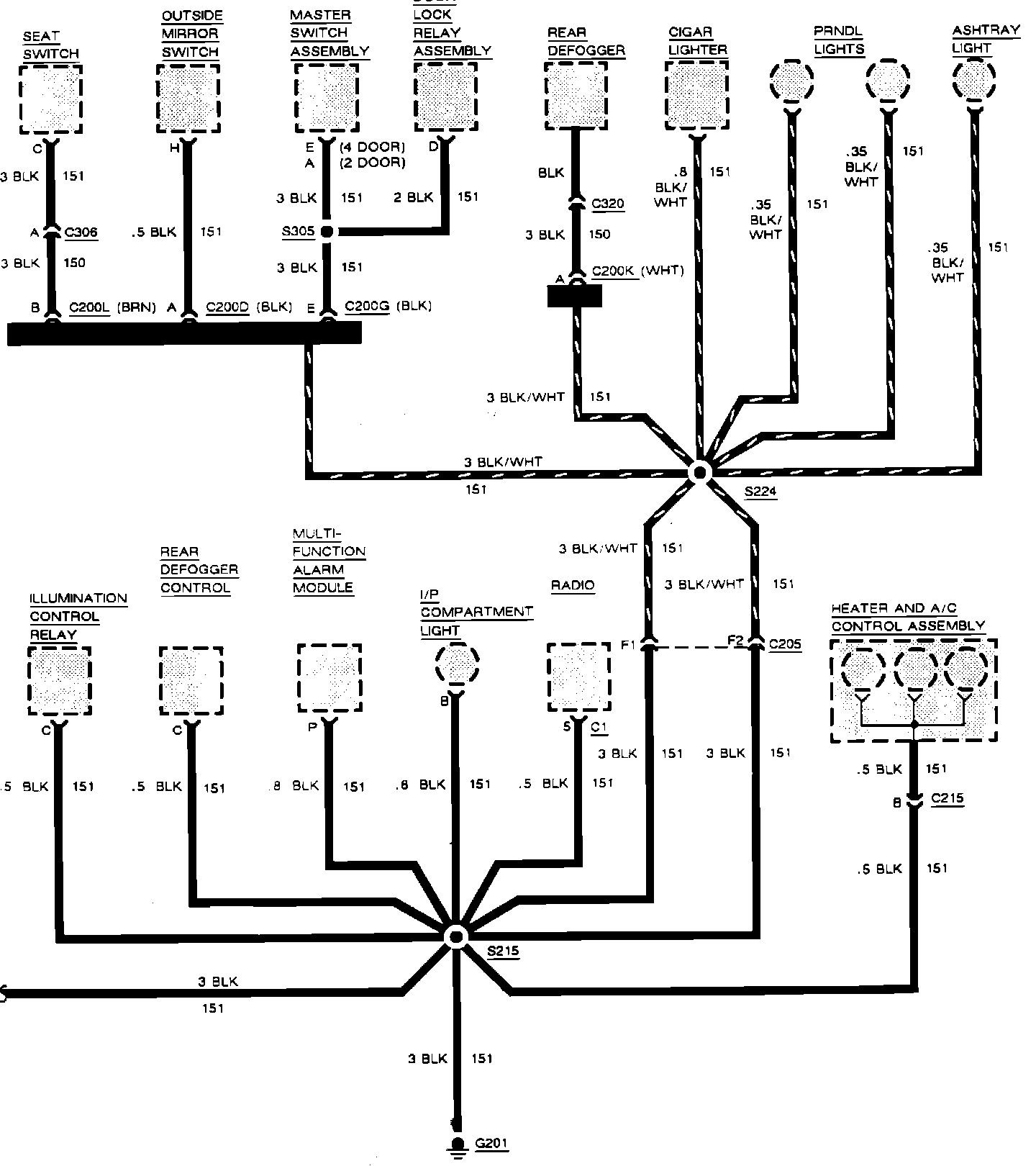

Ground Distribution (G201):
