Home
>>
Pontiac
>>
1991
>>
Grand AM L4-151 2.5L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

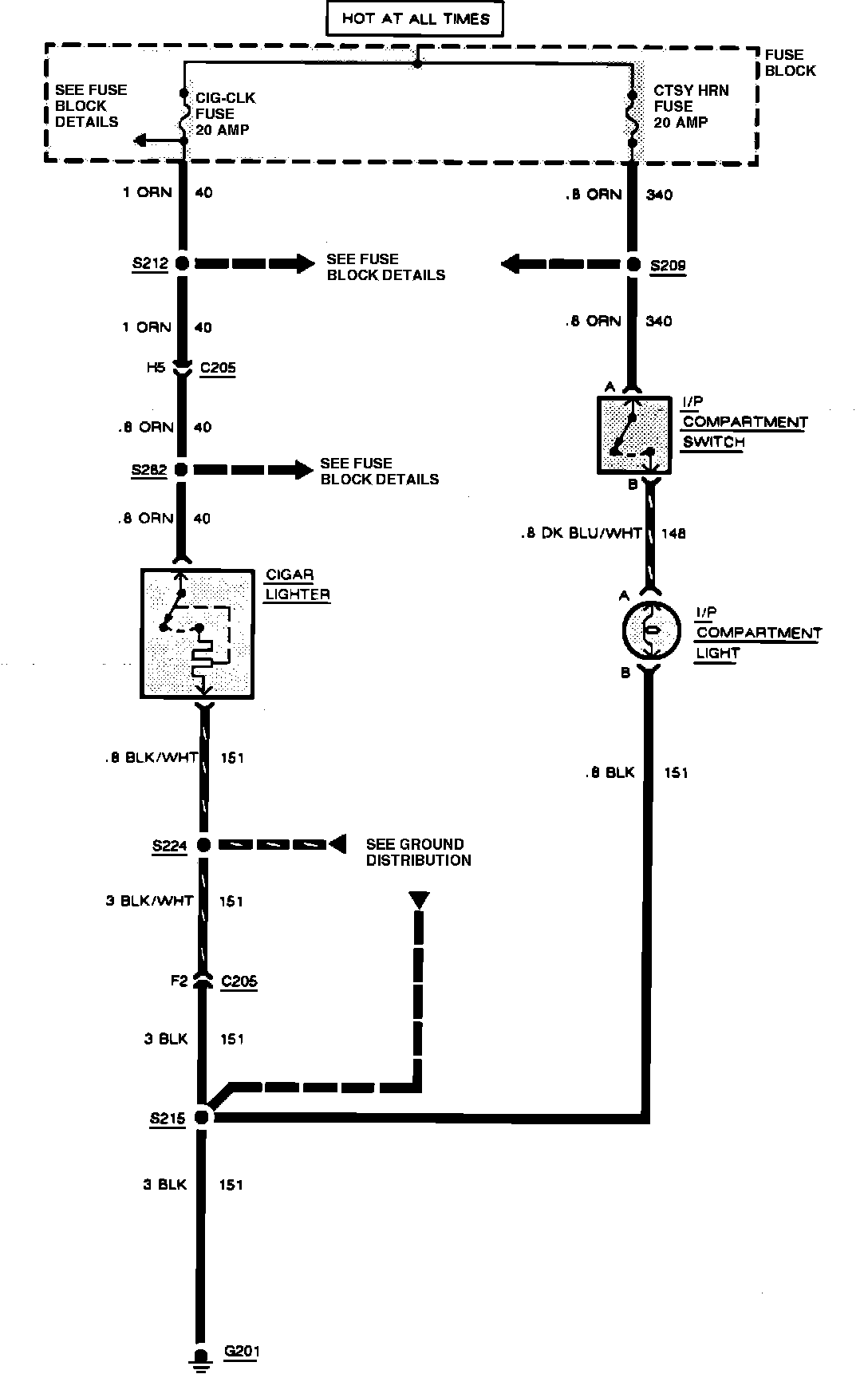

Interior Lights (Cigar Lighter & I/P Compartment):
