Without Air Conditioning

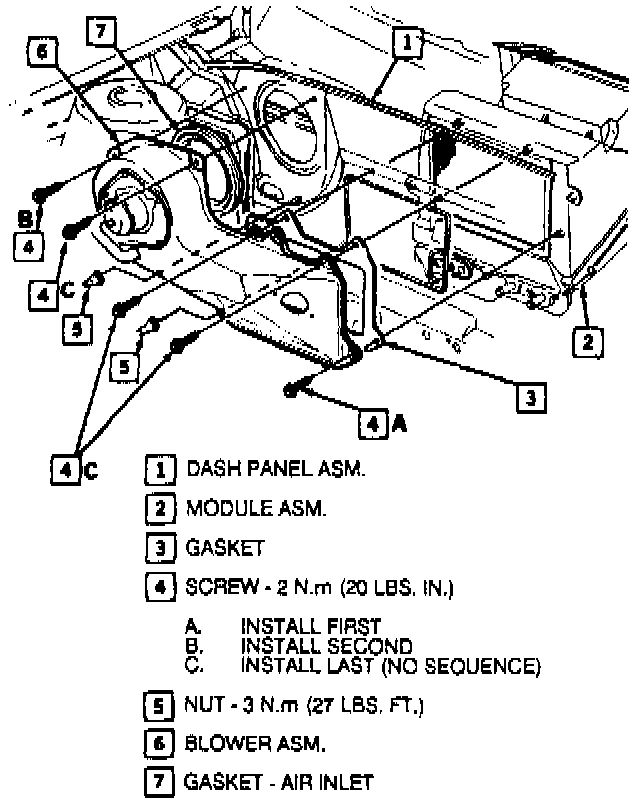

Blower Case, Air Inlet Asm., And Module Asm.:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Remove power steering pressure hose from power steering pump.
3. Electrical connections from blower motor
4. Blower motor cooling tube
5. Blower motor retaining screws and blower motor
6. Fan from blower motor

INSTALL OR CONNECT
1. Fan to blower motor.
2. Blower motor and retaining screws.
3. Blower motor cooling tube.
4. Electrical connections to blower motor.
5. Reconnect power steering pressure hose to power steering pump.
6. Negative battery cable.
